Model: HSP-YL90
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-YL90
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

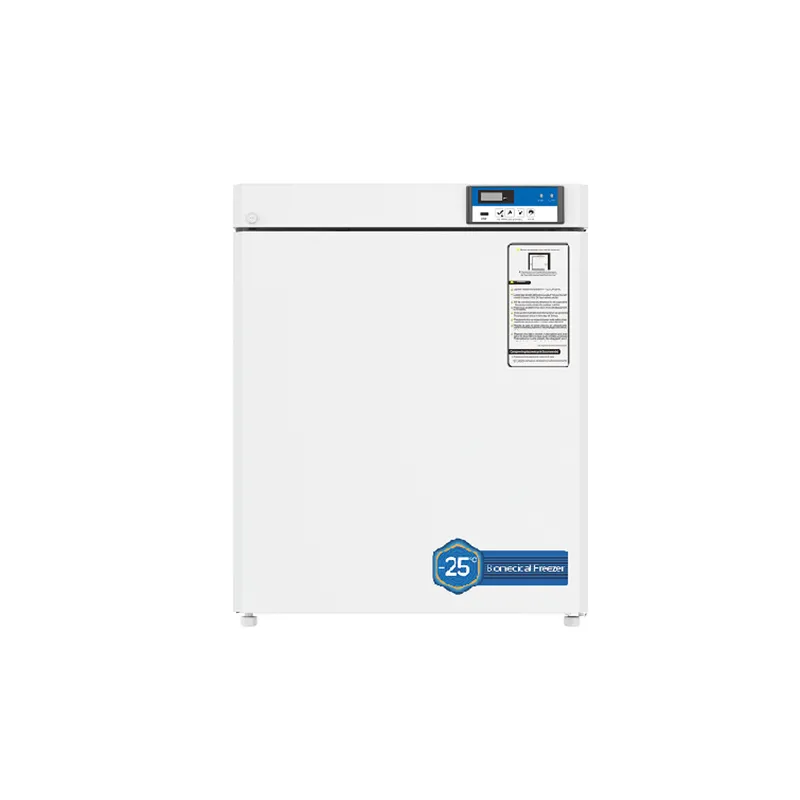

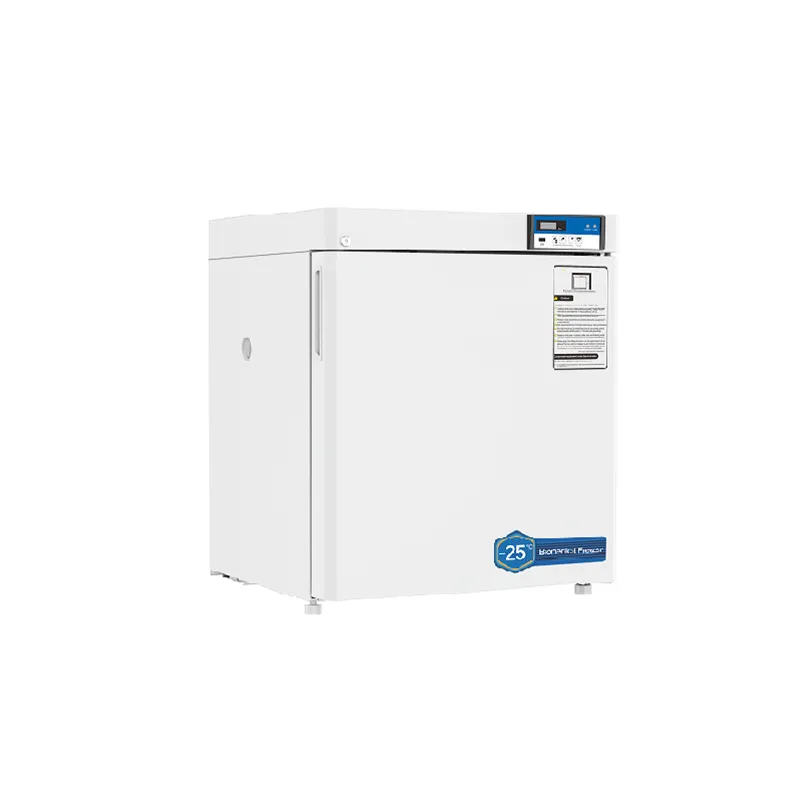

The HSP-YL90 Undercounter Biomedical Freezer provides precise and stable cooling from -10°C to -25°C, ideal for laboratories, clinics, and research facilities. Its digital display and temperature control make monitoring easy, while audible and visual alarms safeguard your valuable samples. The compact undercounter design and three removable drawers ensure organized, space-saving storage. Durable and energy-efficient, the HSP-DWYL90 keeps samples safe and accessible.
Main Features
1.Precise Temperature Control
-Stable cooling from -10°C to -25°C with microprocessor management and digital monitoring.
2.High-Definition Digital Display
-Temperature clearly shown to 0.1°C accuracy for easier observation.
3.Multiple Alarm Systems
-Audible and visual alarms for high/low temperature, door ajar and sensor faults enhance sample security.
4.Energy Efficient Insulation
-Polyurethane foam door provides excellent thermal retention and energy savings.
5.Organized Storage
-Three removable ABS drawers allow separated sample organization.
6.Compact Undercounter Design
-Space saving form factor fits perfectly under laboratory
Specification
| -25℃ Biomedical Freezer | |
| Model | HSP-YL90 |
| Cabinet type | Upright |
| Capacity(L) | 90 |
| Internal size(W*D*H)mm | 500*485*532 |
| External size(W*D*H)mm | 700*669*854 |
| Package size(W*D*H)mm | 765*732*935 |
| NW/GW(Kgs) | 54/67 |
| Performance | |
| Temperature range | -10~-25℃ |
| Ambient temperature | 16-32℃ |
| Cooling performance | -25℃ |
| Climate class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 1pc |
| Cooling method | Direct cooling |
| Defrost mode | Manual |
| Refrigerant | R600a |
| Insulation thickness(mm) | 100 |
| Construction | |
| External material | PCM |
| Inner material | Aluminum plate with spraying |
| Drawers | 3(ABS) |
| Door lock with key | Yes |
| Access port | 1pc. Ø 25 mm |
| Casters | 2+(2 leveling feet ) |
| Backup battery | Yes |
| Alarm | |
| Temperature | High/Low temperature, High ambient temperature |
| System | Power failure |
| Construction | Sensor failure, Door ajar, Built-in USB datalogger failure, Communication failure |
| Accessories | |
| Standard | RS485,Remote alarm contact |
