Model: HSP-XL668
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-XL668
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

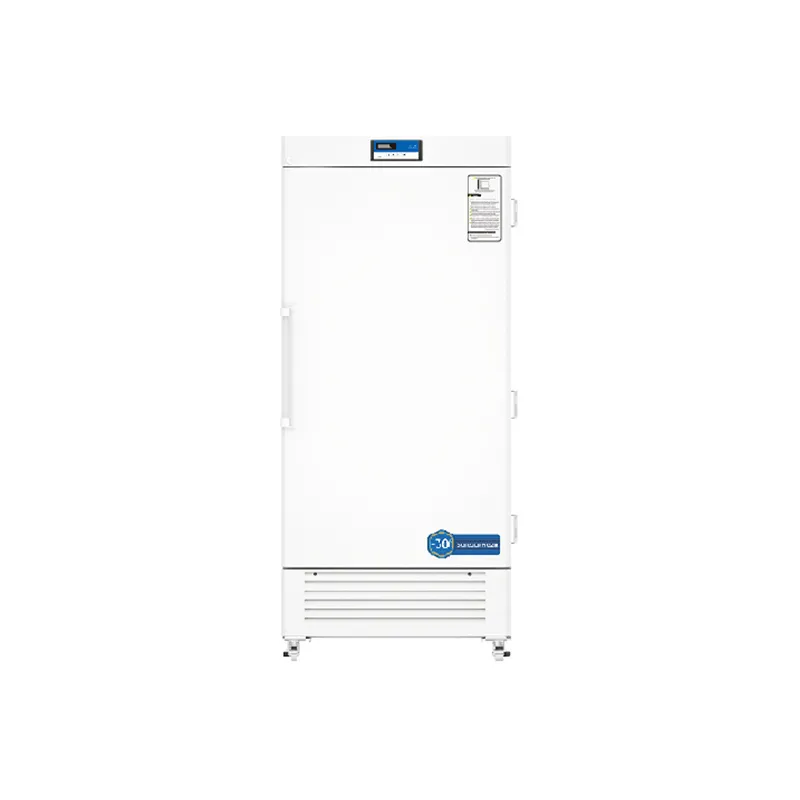

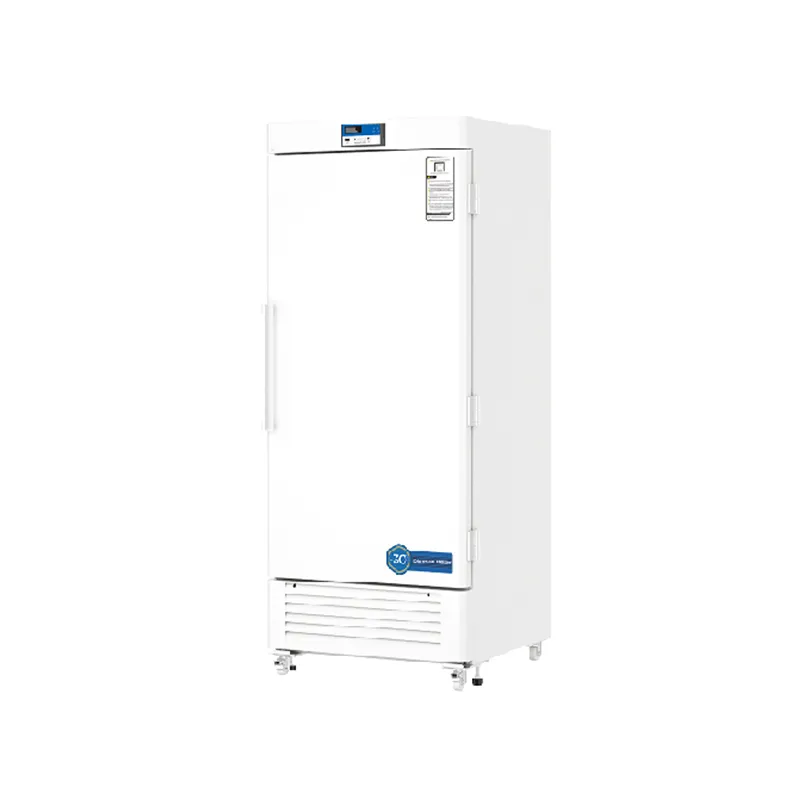

The HSP-XL668 -30°C Biomedical Freezer is designed for the safe and stable storage of biological samples, plasma, vaccines, reagents, and other temperature-sensitive materials. With a generous 668-liter capacity, advanced microprocessor control, and a comprehensive safety system, this freezer ensures reliable ultra-low temperature performance for medical, laboratory, and research environments where temperature accuracy and sample security are critical.
Main Features
-Stable -15°C to -30°C temperature range with microprocessor-controlled precision for consistent ultra-low temperature storage
-Clear digital display for real-time temperature monitoring and easy parameter adjustment
-Uniform cooling system ensures consistent temperature distribution throughout the cabinet
-Multiple audible and visual alarm functions, including high/low temperature, power failure, door ajar, and sensor fault
-Large 668L storage capacity supports high-volume sample storage needs
-Built-in USB port for convenient temperature data recording and traceability
-Eco-friendly, energy-efficient refrigeration system for reliable long-term operation
-Adjustable shelves allow flexible organization of stored materials
-Durable cabinet structure with smooth interior surfaces for easy cleaning
-Lockable door and optional backup battery enhance sample security during power interruptions
Specification
| -30℃ Ultra-low Temperature Freezer | |
| Model | HSP-XL668 |
| Cabinet type | Upright |
| Capacity(L) | 668 |
| Internal size(W*D*H)mm | 700*715*1296 |
| External size(W*D*H)mm | 882*940*1936 |
| Package size(W*D*H)mm | 938*1018*2086 |
| NW/GW(Kgs) | 150/193 |
| Performance | |
| Temperature range | -15~-30℃ |
| Ambient temperature | 16-32℃ |
| Climate class | N |
| Controller | Microprocessor |
| Display | Digital LED display |
| Refrigeration | |
| Compressor | 1pc |
| Cooling method | Direct cooling |
| Defrost mode | Manual |
| Refrigerant | R290 |
| Insulation thickness(mm) | 80 |
| Construction | |
| External material | White powder coated steel |
| Inner material | Spraying aluminum liner |
| Shelves | 4 |
| Door lock with key | Yes |
| Access port | 1pc. Ø 25 mm |
| Casters | 4(2 leveling feet) |
| Data logging/Interval/Max.data capacity | USB/Record every 10 minutes/2 years |
| Backup battery | Yes, over 48 hours |
| Interface | RS485, Remote alarm contact |
| Alarm | |
| Temperature | High/Low temperature, High ambient temperature |
| Electrical | Power failure, Low battery |
| System | Sensor failure, Main board communication error,Condenser overheating alarm, Door ajar, Data Logger not connected/not activated alarm, Remote alarm |
