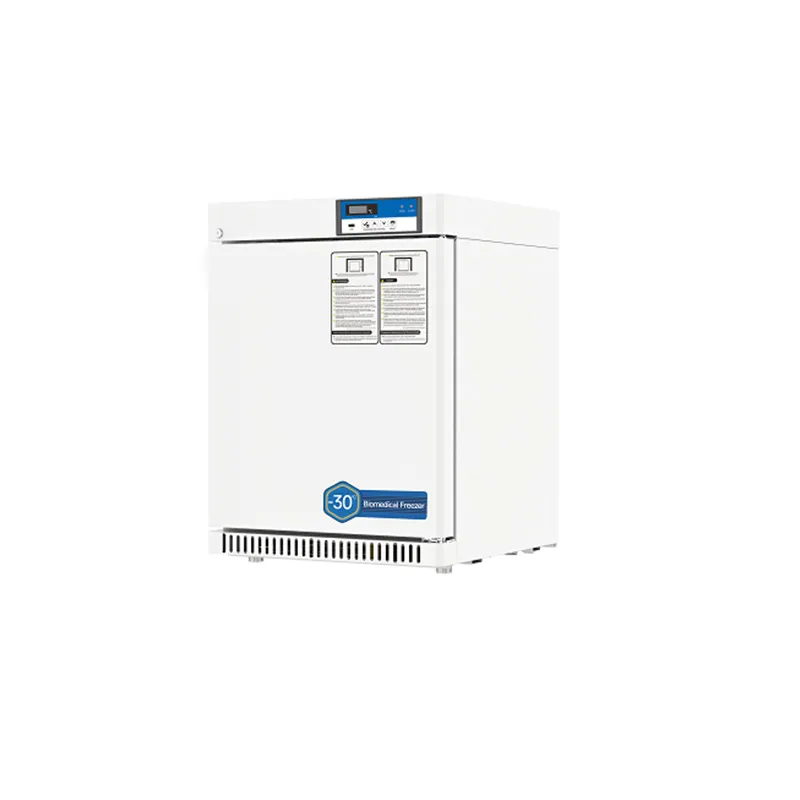

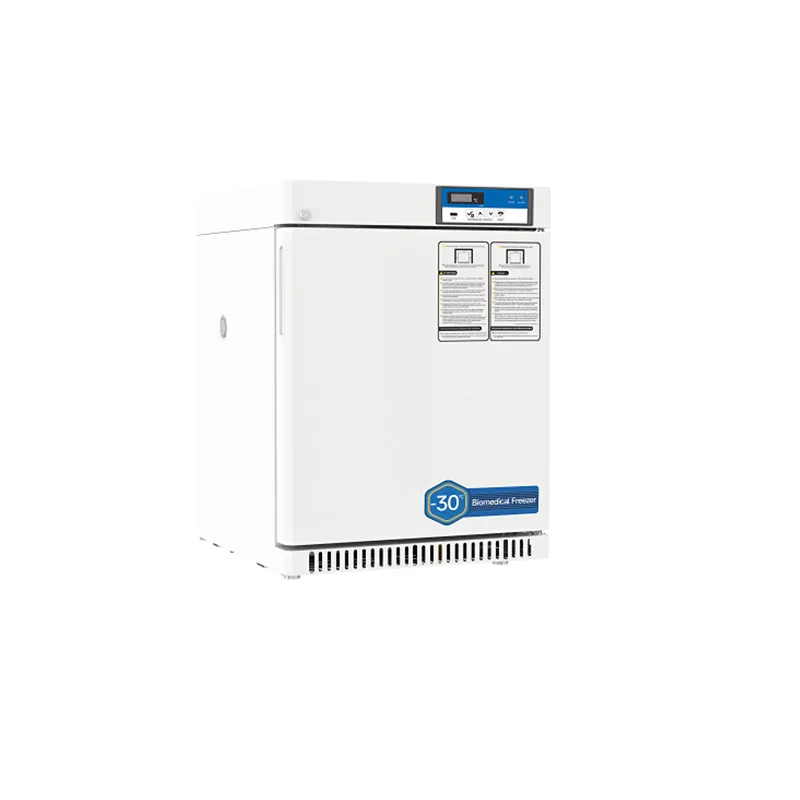

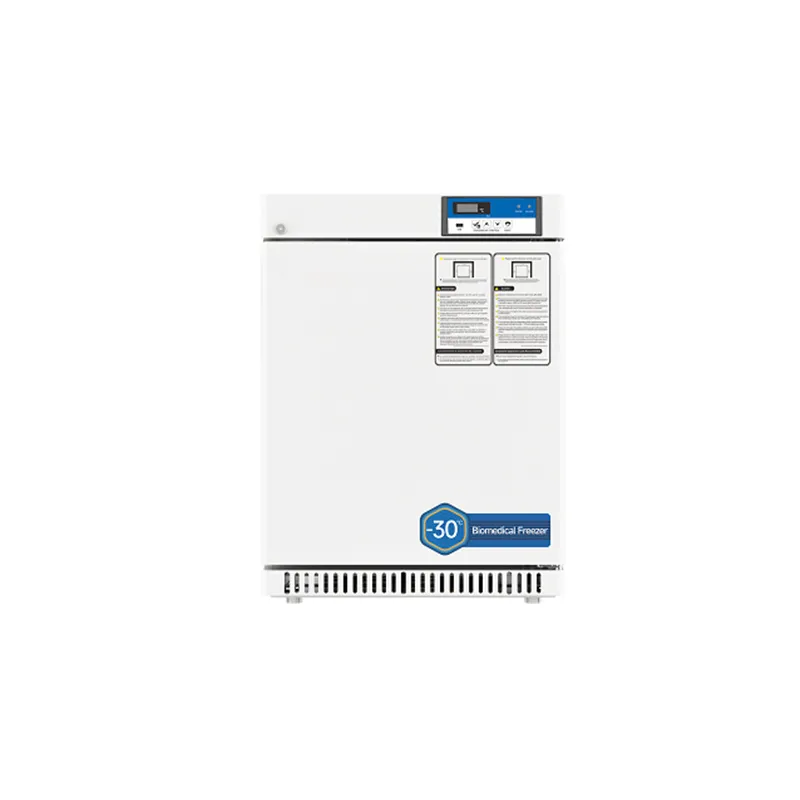

HSP-XL90 -30°C Compact Medical Undercounter Biomedical Freezer

Model: HSP-XL90

Product origin: CHINA

Warranty: 1 Year

After-sales Service: Online Technical Support


Share:

The HSP-XL90 -30°C Undercounter Biomedical Freezer is a space-saving medical freezer designed for reliable ultra-low temperature storage in laboratories and clinical environments with limited space. Featuring accurate digital temperature control, fast pull-down performance and a front-ventilated undercounter design, it provides stable and secure storage for biological samples, plasma, reagents and other temperature-sensitive materials at temperatures down to -30°C.


Main Features

-15°C to -30°C temperature range with microprocessor control for stable and accurate cooling

-Undercounter compact design with front ventilation, suitable for installation beneath workbenches or in tight spaces

-Fast cooling performance ensures rapid temperature recovery after door opening

-Clear digital display with real-time temperature monitoring and easy operation

-Comprehensive audible and visual alarms for high/low temperature, power failure, door ajar and sensor faults

-USB data logging interface for temperature record storage and compliance tracking

-Energy-efficient refrigeration system using eco-friendly refrigerant

-Adjustable shelves and internal basket for flexible sample organization

-Lockable door design enhances sample security in shared laboratory environments


Specification

 -30℃ Biomedical Freezer
ModelHSP-XL90
Power supply110/60
Capacity(L)90L/3.18Cu.Ft
Internal size(W*D*H)mm)/inch440*465*495mm/17.32*18.3*19.49 inch
External size(W*D*H)mm/inch600*622*812mm/23.62*24.5*31.9 inch
Package size(W*D*H)mm/inch662*682*865mm/26.06*26.85*34.06 inch
NW(Kgs)52
Performance
Temperature range-15~-30℃/5°F~-22°F
Ambient temperature16-32℃/60.8°F~89.6°F
ControllerMicroprocessor
DisplayDigital display
  Noise50dB(A)
Refrigeration
Compressor1pc
Cooling methodDirect cooling
Defrost modeManual
RefrigerantR290
Insulation thickness(mm)80
Construction
External materialPCM
Inner materialSpraying Aluminum liner
Shelves2+1 (basket)
Access port1pc. Ø 36 mm
Casters2(2 leveling feet)
Data logging/Interval/Max data capacityUSB (Built-in data logger)
InterfaceRemote alarm contact
Alarm
TemperatureHigh/Low temperature, High ambient temperature
ElectricalPower failure,Low battery
SystemSensor failure,Door ajar,Built-in USB datalogger failure, Communication failure
