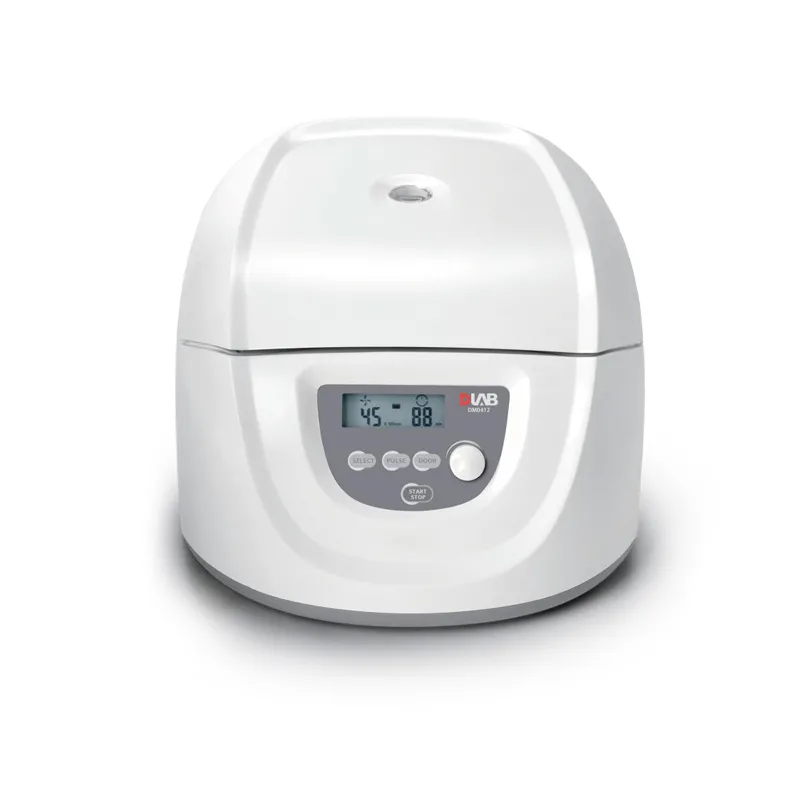

HSP-0412 is ideal for separation of whole blood components, such as serum, plasma, buffy coat, red blood cells, as well as other bodily fluids.
HSP-0412 is ideal for separation of whole blood components, such as serum, plasma, buffy coat, red blood cells, as well as other bodily fluids.
Main features
- Easy operation with intuitive menu and easy-to-read display
- Speed can be set in RPM/RCF
- Maintenance-free brushless
- DC motor Quick spin function with press and hold pulse key
- Lid with electric lock and automatic release function
- Automatic lid-lock release after running
- Braking time 2 steps adjustable only for A6-50P rotor
- High strength plastic rotor gives excellent balance to guarantee stable working
- Dual protection housing particularly benefit for safe running
- Gentle braking at low speeds with efficient separation
Specification
| Speed Range | 300-4500rpm,increment: 100rpm |
| Max.RCF | 2490×g |
| Speed accuracy | ±20rpm |
| Rotor type | A12-10P, A6-50P |
| Run Time | 30sec-99min HOLD(Continuous operation) |
| Motor | Brushless DC motor |
| Display | LCD |
| Safety Devices | Door interlockOverspeed detector Automatic internal diagnosis |
| Acceleration/Braking time | A12-10p:20s↑ 13s↓A6-50P:20s↑ 20s/90s↓ |
| Power Requirements | Single-phase,100V-240V,50Hz/60Hz,3A70W |
| Dimension[WxDxH] | 354×304×215mm |
| Weight | 6kg |
| Advanced features | Speed/RCF switch;Short-time run function;Sound-alert function |
