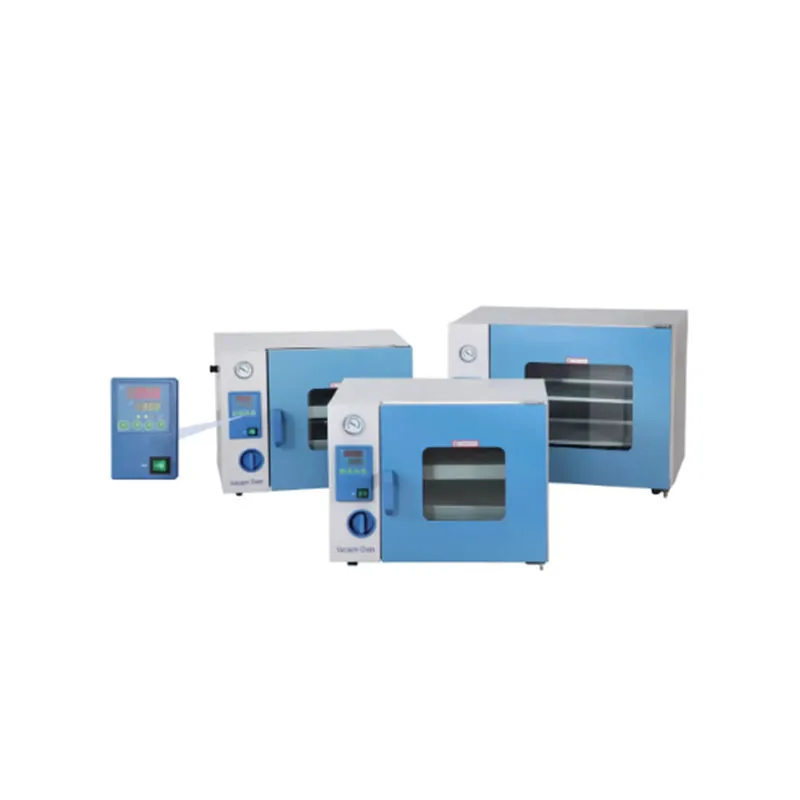

Vacuum oven is designed especially for drying material which is thermosensitive , oxidative, decomposable easily. It can also work with inert gas to dry some compound material.l.
Vacuum oven is designed especially for drying material which is thermosensitive , oxidative, decomposable easily. It can also work with inert gas to dry some compound material.l.
Main Features
-304 stainless steel, mirror polishing processing, easy to clean and maintain.
-PID controller with over temperature alarm and timing function ensures precise and reliable control, also save more than 40% heating time.
-A big dual layer tempered glass on the door provides good observation.
-Door adjustment system with silicon door gasket ensures better vacuity.
Specification
| Model | DZF-6012 | DZF-6020DZF-6022DZF-6024 | DZF-6050DZF-6053DZF-6055DZF-6056 | DZF-6030ADZF-6032DZF-6034(Special for chemistry) | DZF-6092DZF-6094DZF-6096 | DZF-6123DZF-6126 | DZF-6213DZF-6216 | DZF-6030BDZF-6050BDZF-6055B(Special for biology) |
| Electrical Requirement | AC220V 50HZ | |||||||
| Controller | LED display | |||||||
| Power Consumption | 400W | 400W700W700W | 1450W | 850W | 870W1950W1950W | 1500W2300W | 1550W2850W | 300W650W650W |
| Temperature Range | RT-10~200℃ | RT-10~65℃ | ||||||
| Display Resolution | 0.1 | |||||||
| Temperature Stability | ±1℃ | |||||||
| Vacuum Degree | 133Pa | |||||||
| Chamber Volume | 10L | 24L | 50L | 30L | 90L | 125L | 216L | 30L/50L |
| Ambient Temperature | +5~40℃ | |||||||
| Interior Dimension (W×D×H)mm | 220×210×220 | 300×300×275 | 415×370×345 | 320×320×300 | 450×450×450 | 500×500×500 | 600×600×600 | 320x320x300415x370x345 |
| Exterior Dimension (W×D×H)mm | 500×375×410 | 605×490×450 | 730×560×550 | 630×510×490 | 740×610×591 | 790×660×641 | 890×760×741 | 610x510x490730x560x550 |
| Shelves | 2(pcs) | 1(pcs)2(pcs)4(pcs) | 2(pcs)3(pcs)5(pcs)6(pcs) | 1(pcs)2(pcs)4(pcs) | 2(pcs)4(pcs)6(pcs) | 3(pcs)-Independent temp.control6(pcs) | 1(pcs)2(pcs)5(pcs) | |
| Chamber Material | 304 Stainless steel | 316 SS | 304 Stainless steel | |||||
