Model: HSP-DMS5
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-DMS5
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

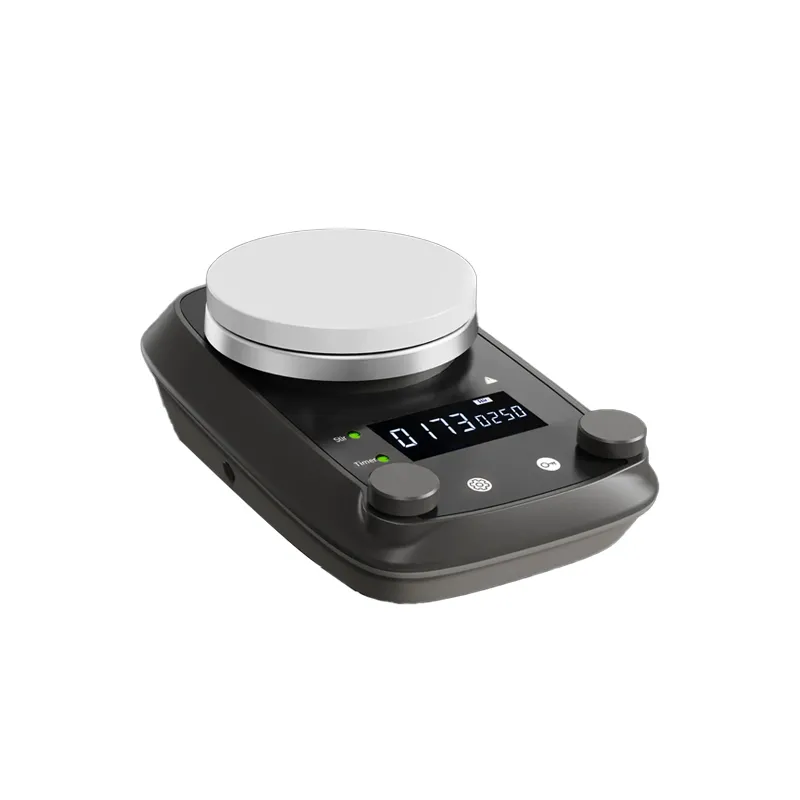

The HSP-DMS5 LCD Magnetic Stirrer with Timer is designed for precise and reliable liquid mixing in laboratory applications. Featuring a ceramic-coated aluminum work plate and a robust all-metal housing, it offers excellent corrosion resistance, efficient heat dissipation, and enhanced operational safety.
Main Features
1.Ceramic-Coated Aluminum Work Plate
-Excellent corrosion resistance with a smooth, easy-to-clean surface.
2.All-Metal Housing
-Durable, corrosion-resistant enclosure with efficient heat dissipation and enhanced fire safety.
3.High-Torque Magnetic Drive
-High-temperature–resistant magnets deliver strong and stable stirring, suitable for viscous liquids.
4.Uniform Magnetic Field Distribution
-Parallel magnetic field design ensures consistent stirring performance across the entire plate surface.
5.IP42 Protection Rating
-Provides reliable protection against dust and dripping water in laboratory environments.
6.Safety Lock Function
-Prevents accidental changes to operating parameters during use.
7.Audible Alarm System
-Buzzer alerts users when a fault occurs or when the timer countdown is completed.
8.Brushless DC Motor
-Spark-free, low-noise operation with long service life and maintenance-free performance.
Specification
| Model | HSP-DMS5 |
| Work plate Dimension | Ø135mm(5inch) |
| Work plate material | Aluminum with ceramic coating |
| Max. stirring quantity[H2O] | 20L |
| Speed range | 0-1100rpm |
| Speed display | LCD |
| Motor type | Brushless DC moto |
| Stirring positions | 1 |
| Max.magnetic bar length | 80mm |
| Protection class | IP42 |
| Motor output Power | 10W |
| Power | 30W |
| Voltage,Frequency | 100-240V,50/60Hz |
| Dimension[WxDxH] | 270x175x108mm |
| Weight | 1.8Kg |
| Permissible ambient temperature | 5-40℃ |
| Permissible ambient humidity | 80% RH |
