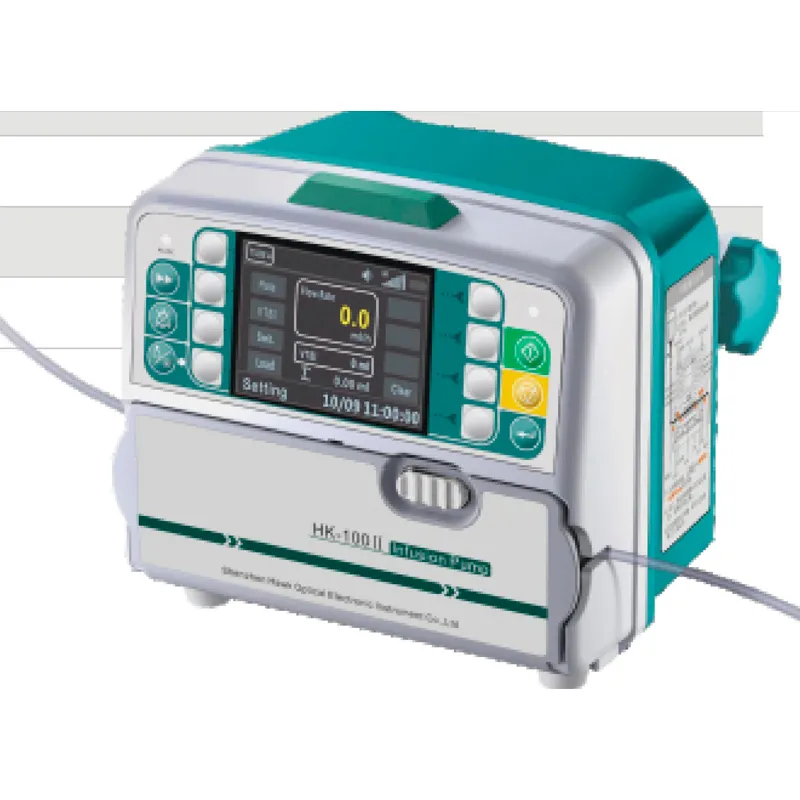

HSP-100II Single Channel Hospital Injection Infusion Pump

Model: HSP-100II

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support

1.Compact design

-The compact and light weight design saves space and are beneficial during patient transfer

-Large & colorful LCD display

2.Added safety

3.Free flow protection

-The built-in flow stop feature helps reduce the risk of accidental free flow when pump door is open.

4.Anti-bolus function

-Diminishes the volume of unwanted Bolus injected to the patient after removal of the occlusion cause.

-Anti-reverse rotation detection

5.Panel Lock

-The panel lock feature helps prevent unauthorized changes of any instrument setting

6.Versatile functions

-1300 history records

-Real time display

-RS232 interface (optional)

-90°rotation pole clamp convenient for horizontal bar, vertical IV pole & platform use

7.User-friendly operation

-Soft key design, easy to operate

-Load directly the last infusion rate and volume limit

-Adjustable buzzer volume

-Top indicator light reflects the operation status as well as alarm case

-Night mode to ensure good rest of patients

-Removable pump body for easy cleaning

Flow rate range	0.1~1200 ml/h Micro mode:0.1-99.9 ml/hr in 0.1 ml increments
Infusion mode	Rate mode,Drip mode, Time mode, Body weight mode Optional: Intermittent infusion mode,Durg library mode
Volume to be infused (VTBI)	0~9999ml
Volume Infused(∑)	0~36000ml
Infusion accuracy	± 5%
Applicable infusion set	Various brands of infusion set
KVOrate	1~5ml/h
Bolus rate	300~1200ml/h
Purge	600ml/h
Air bubble detection	Ultrasound sensor detection with four levels of air in line alarm adjustable
Occlusion pressure	3 adjustable occlusion pressure settings: low,middle and high
Alarms	Visual and audible alarms: Door open, Air-In-Line, Occlusion, Infusion completion, infusion near over, Start reminder function, Low Battery Battery depleted, malfunction etc.
Computer Interface	Rs232
History records	1300 history records
Power supply	AC:100~240V, 50/60Hz DC:12V±1V
Battery	Rechargeable lithium polymer battery.7.4V,1900mAh Can operate up to 6 hours at 25ml/h after fully charged.
Battery recharge time	10h with power on. 3h with power off
Power consumption	25VA
Classification	Class l,type CF
Waterproof Level	IPX3
Mode of operation	continuous
Dimensions	145x100x120mm(length x width x height)
weight	≤1.4kg
Operating conditions	l Temperature:5℃-40℃.l Relative humidity:10-95%.l Atmosphere pressure:86-106kPa
Storage conditions	l Temperature:-20℃～45℃l Relative humidity: 10～95% l Atmosphere pressure: 50kPa～106kPa
Transport conditions	l Temperature:-20~60℃l Relative humidity:10~95%℃l Atmosphere pressure:50~106kPa
