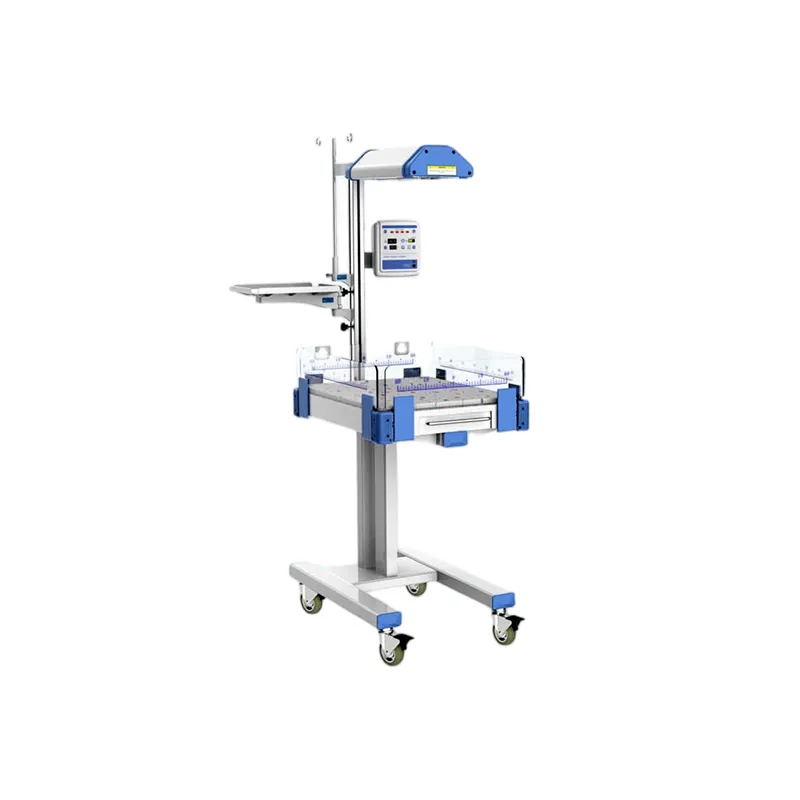

Model: HSP-BN100A
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-BN100A
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
-Microprocessor based servo controlled temperature system
-The microprocessor-controlled unit allows for two modes: manual and automatic
-Set temperature and skin temperature are displayed by LED
-Alarm functions :Power failure, temperature deviation, temperature sensor failure, skin temperature failure, over temperature
-A second thermal cut-out function for more safety
-LED observation light adjustable,brightness adjustable
-Adopts anti-explosion mirco crystal quartz infrared radiation tube
-Four Transparent protector folded with 2 infusion seals
-RS-232 connector, 1tray
Specification
| Power supply | AC110/220V 60/50Hz |
| Power input | 900VA |
| Operating conditions | Environment temperature:18℃-30℃Environment relative humidity:30%-75%RH Atmospheric Pressure 700~1060hpaEnvironment air velocity of flow:<0.3m/s |
| Skin temperature control range | 32℃~38℃ |
| Skin temperature control accuracy | ≤0.5℃ |
| Skin temperature sensor accuracy | ±0.3℃ |
| Oxygen concentration display range | 0%~100% |
| Mattress temperature uniformity | <2℃ |
| Warm-up time(from25°C) | <30min |
| Distance form heater to mattress | 80cm |
| Mattress size | 67cm X 54cm |
