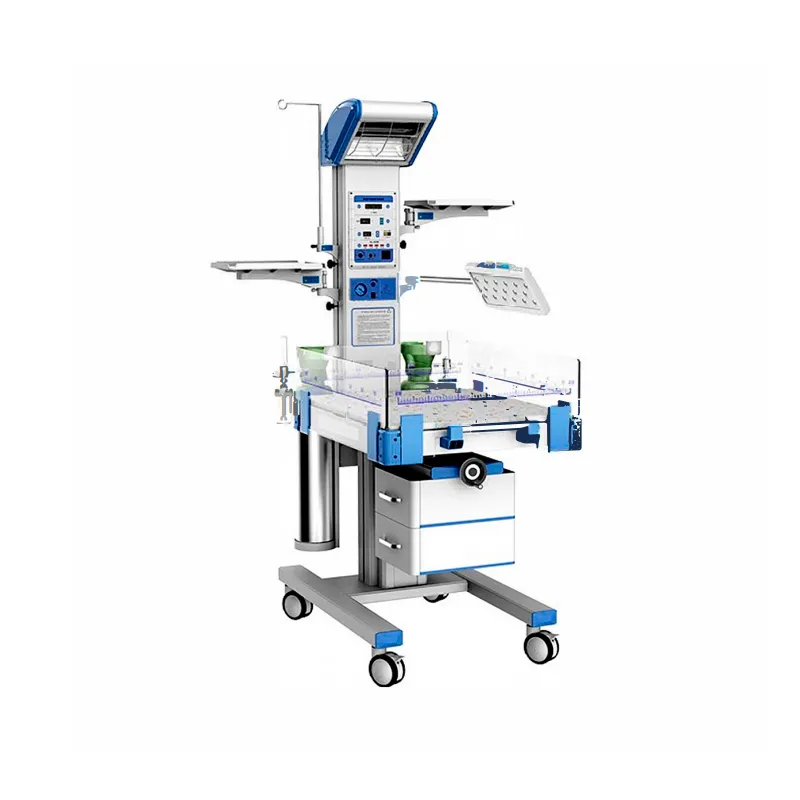

Model: HSP-BN100L
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-BN100L
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
-Microprocessor based servo controlled temperature system
-Three modes: pre-warm, manual or automatic
-Set temperature and skin temperature display separately
-Special design inclined heater head is more convenience for X rays
-Carbon steel heater for more effectivity
-Audible and visual Alarm functions :
-Power failure, temperature deviation, temperature sensor failure, skin temperature failure, over temperature
-APGAR timer to record therapy time
-Convenient X-ray cassette under infant bed
-Electric inclination of infant bed
-LED observation light adjustable,brightness adjustable
-Four Transparent protector folded with 2 infusion seals
-LED phototherapy unit,Oxygen supply system
-Bigger infant bed
-Built in low pressure aspirator
-With RS-232 connector,2 trays and 2 drawers
Specification
| Power supply | AC110/220V 60/50Hz |
| Power input | 1100VA |
| Operation conditions | Environment temperature:18℃~30℃Environment relative humidity:30%~75%Atmospheric Pressure:700~1060hpa |
| Environment air velocity of flow | <0.3m/s |
| Skin Temperature control range | 32℃~38℃ |
| Skin temperature control accuracy | ≤0.5℃ |
| Skin temperature sensor accuracy | ±0.3℃ |
| Mattress temperature uniformity | <2℃ |
| Infant Bed tilt angle | ±12° |
| Warm-up time(from 25℃) | <30min |
| LED observation light | 3W |
| Distance from the heater to mattress | 80cm |
| Mattress size | 78cm X 64cm |
| Timer range | 0~99h59min |
| LED phototherapy light 36cm | 620-2800μw/c㎡ |
| LED phototherapy light 50cm | 400-1620μw/c㎡ |
| Max vacuum adjustable | ≥-25kpa(-188mmHg) |
| Storage bottle | 1000mL |
| Oxygen cylinder | 6L X 2 |
| Oxygen flow meter | 0-10L/min |
