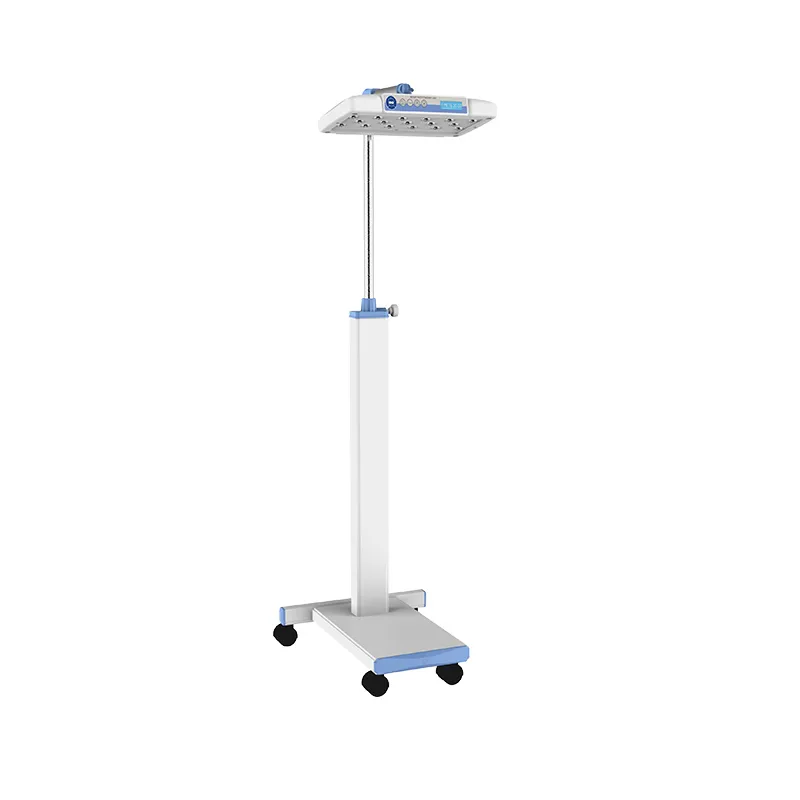

HSP-BL50D Infant Phototherapy Unit

ModelHSP-BL50D

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support


Share:

The HSP-BL50D Infant Phototherapy Unit is a high-intensity LED-based device designed for the treatment of neonatal jaundice in newborns. It features adjustable light intensity, quiet fan-free operation, and a mobile stand for use in NICUs, maternity wards and pediatric care environments. The head height and angle are adjustable to ensure safe and effective irradiation while minimizing heat and ambient disturbance.

Main Features

-LED bulbs as the phototherapy radiation source for efficient bilirubin breakdown.

-Irradiance intensity adjustable in three grades: Low / Medium / High.

-LCD screen displays both current therapy time and accumulated integral time separately.

-Count - up timer and count - down timer modes for flexible treatment scheduling.5.Uniform light distribution and high intensity coverage across the treatment area.

-Fan - free silent operation for minimal noise in neonatal intensive care settings.

-Adjustable head angle and height range to accommodate different infant positions and devices (incubator, warmer, cradle).

-Mobile stand with four castors (two with brakes) and steel/aluminium alloy support for ease of repositioning.

-Long - life LED bulbs for reduced maintenance and lower operating cost.

Specification

ModelHSP-BL50D
Power SupplyAC 110V ~ 240V, 50/60 Hz
Power Input~40 VA
Radiant Wavelength420 nm - 490 nm (LED blue light spectrum)
Height Adjust Rangeapprox. 850 – 1,640 mm
Head Size~380 × 220 mm (radiant head footprint)
Irradiance LevelsAt 360 mm distance, High: ~2,800 µW/cm²; Medium: ~2,000 µW/cm²; Low: ~800 µW/cm²
Timer Accuracy1 min/12 h
Operating Temperature18 °C ~ 30 °C
Relative Humidity10% ~ 85% RH
Storage/Transport Conditions–10 °C ~ +55 °C; RH ≤ 95%; Pressure 500 ~ 1060 hPa
MobilityFour castors with brake for stand-mounted unit
