Model: HSP-BL360D
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-BL360D
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support

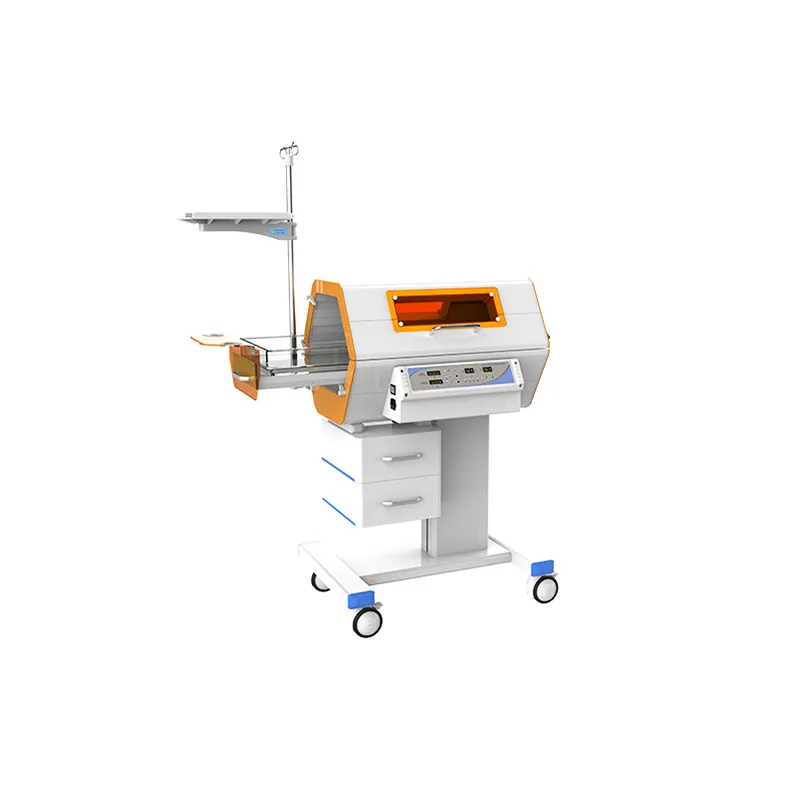

The HSP-BL360D Infant Phototherapy Unit is an LED device for treating neonatal jaundice. It provides effective blue light therapy with adjustable intensity, dual light heads, and quiet operation. The unit is mobile and suitable for use in hospitals and NICUs.
Main Features
-Dual light modules (top and bottom) can work independently or together.
-High-intensity LED light with long lifespan.
-Adjustable brightness: High / Medium / Low.
-Uniform illumination for consistent therapy.
-LCD display shows therapy time and total usage time.
-Count-up and count-down timers.
-Fan-free silent operation.
-Adjustable head angle and height.
-Mobile stand with lockable castors.
-Energy-efficient and low maintenance.
Specification
| Model | HSP-BL360D |
| Light Source | High-intensity blue LED |
| Power Supply | AC 110V – 240V, 50/60 Hz |
| Power Input | ~80 VA |
| Wavelength Range | 420 nm – 490 nm |
| Irradiance Levels | High: up to 3500 µW/cm²; Medium: 2500 µW/cm²; Low: 1200 µW/cm² |
| Working Distance | 400 mm ± 50 mm |
| Timer Range | 1 min – 12 h (count-up and count-down) |
| Display | LCD digital panel |
| Height Adjustment | 850 mm – 1650 mm |
| Phototherapy Area | ≥ 400 × 250 mm |
| Operating Temperature | 18 °C – 30 °C |
| Relative Humidity | 10% – 85% RH |
| Storage Conditions | –10 °C – +55 °C, RH ≤ 95% |
| Cooling System | Fan-free natural convection |
| Mobility | Four castors (two with brakes) |
| Net Weight | Approx. 25 kg |
