Model: HSP-BL200D
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-BL200D
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support

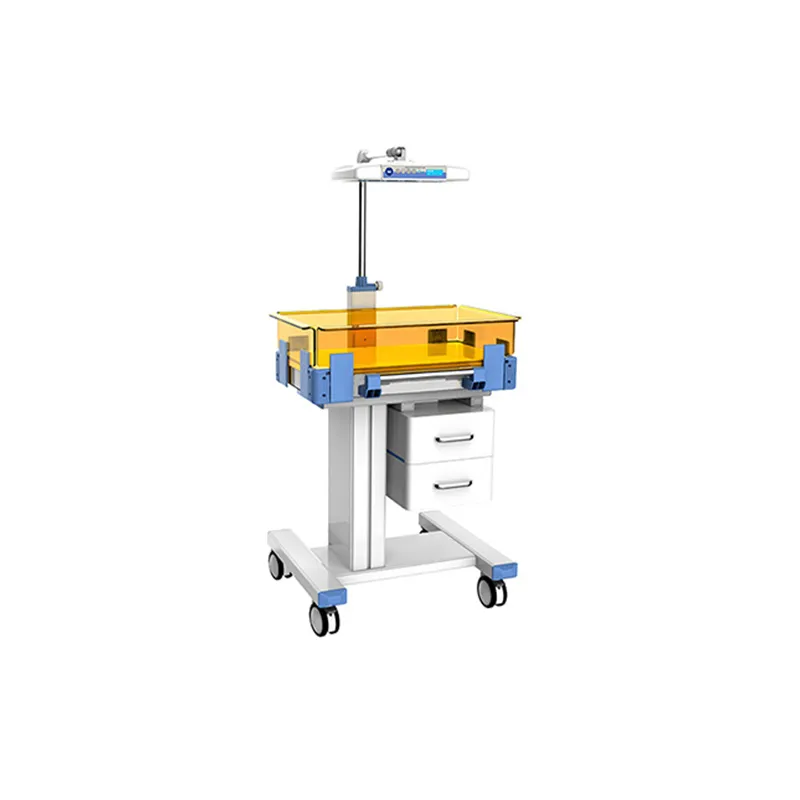

The HSP-BL200D Infant Phototherapy Unit is an LED phototherapy device designed for treating neonatal jaundice. It delivers high-intensity blue light therapy with adjustable brightness, quiet operation, and a mobile stand. The unit ensures safe and effective treatment in hospitals, NICUs, and maternity wards.
Main Features
-High-intensity LED light for efficient bilirubin reduction.
-Adjustable light intensity: High / Medium / Low.
-Uniform illumination across the treatment area.
-LCD digital display shows therapy time and total accumulated usage time.
-Count-up and count-down timer modes.
-Fan-free silent operation for minimal noise.
-Adjustable head angle and height for optimal positioning.
-Mobile stand with four lockable castors.
-Energy-efficient design with long-lasting LEDs.
Specification
| Model | HSP-BL200D |
| Light Source | High-intensity blue LED |
| Power Supply | AC 110V – 240V, 50/60 Hz |
| Power Input | ~60 VA |
| Wavelength Range | 420 nm – 490 nm |
| Irradiance Levels | High: up to 3200 µW/cm²; Medium: 2200 µW/cm²; Low: 1000 µW/cm² |
| Working Distance | 400 mm ± 50 mm |
| Timer Range | 1 min – 12 h (count-up and count-down modes) |
| Display | LCD digital panel |
| Height Adjustment | 850 mm – 1650 mm |
| Phototherapy Area | ≥ 400 × 250 mm |
| Operating Temperature | 18 °C – 30 °C |
| Relative Humidity | 10% – 85% RH |
| Storage Conditions | –10 °C – +55 °C, RH ≤ 95% |
| Cooling System | Fan-free natural convection |
| Mobility | Four castors (two with brakes) |
| Net Weight | Approx. 22 kg |
