Model: HSP-BL100D
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-BL100D
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support

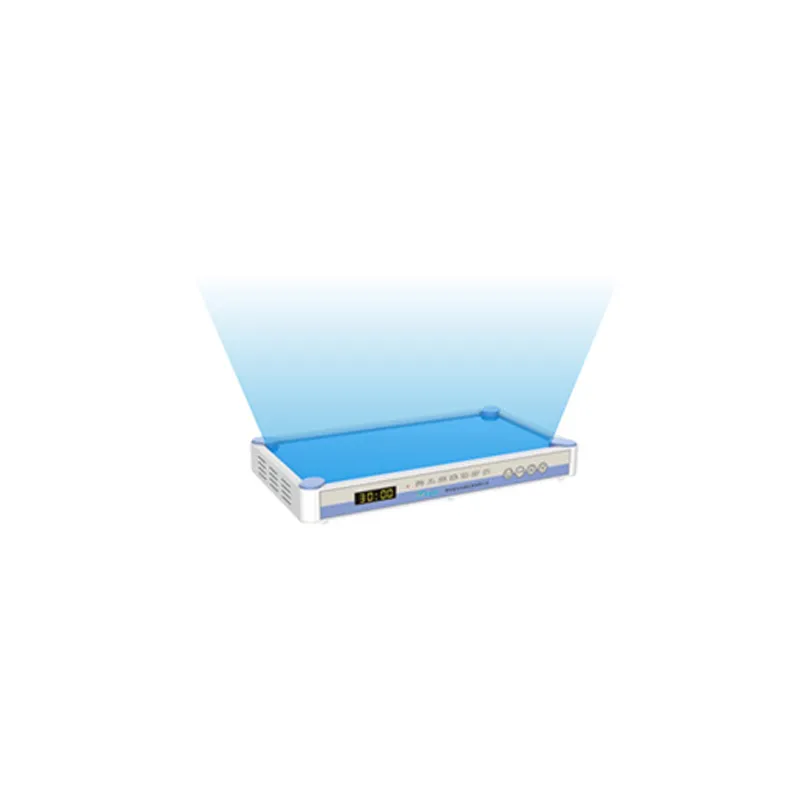

The HSP-BL100D Infant Phototherapy Unit is a high-performance LED phototherapy system designed to treat neonatal jaundice effectively and safely. It uses high-intensity blue LED light within the optimal wavelength range to accelerate bilirubin decomposition while minimizing heat output. The unit features adjustable light intensity, digital timer display, and a stable mobile stand for easy positioning. Compact, quiet, and durable, the HSP-BL100D ensures continuous and comfortable phototherapy for newborns in hospitals, NICUs, and maternity wards.
Main Features
-High-intensity blue LED light source for efficient bilirubin reduction.
-Adjustable irradiance levels (Low / Medium / High) to meet various treatment needs.
-Uniform light distribution ensuring consistent therapeutic effect.
-Digital LCD display showing treatment time and total accumulated usage time.
-Count-up and count-down timers for precise therapy control.
-Fan-free cooling design for quiet operation, ideal for neonatal care units.
-Adjustable lamp head angle and height for optimal illumination positioning.
-Mobile stand with four smooth castors, two with brakes for stability.
-Energy-efficient LEDs with long lifespan and minimal maintenance.
-Compact and ergonomic design for ease of use in limited clinical spaces.
Specification
| Model | HSP-BL100D |
| Power Supply | AC 110V – 240V, 50/60 Hz |
| Power Input | ~50 VA |
| Light Source | High-intensity blue LED |
| Wavelength Range | 420 nm – 490 nm |
| Irradiance Levels | High: up to 3000 µW/cm²; Medium: 2000 µW/cm²; Low: 1000 µW/cm² |
| Head Adjustment Range | 850 mm – 1650 mm |
| Lamp Head Size | 380 mm × 220 mm |
| Timer Range | 1 min – 12 h, digital display |
| Operating Temperature | 18 °C – 30 °C |
| Relative Humidity | 10% – 85% RH |
| Storage Conditions | –10 °C – +55 °C, RH ≤ 95% |
| Cooling System | Fan-free, natural convection |
| Mobility | Four castors (two with brakes) |
| Net Weight | Approx. 20 kg |
