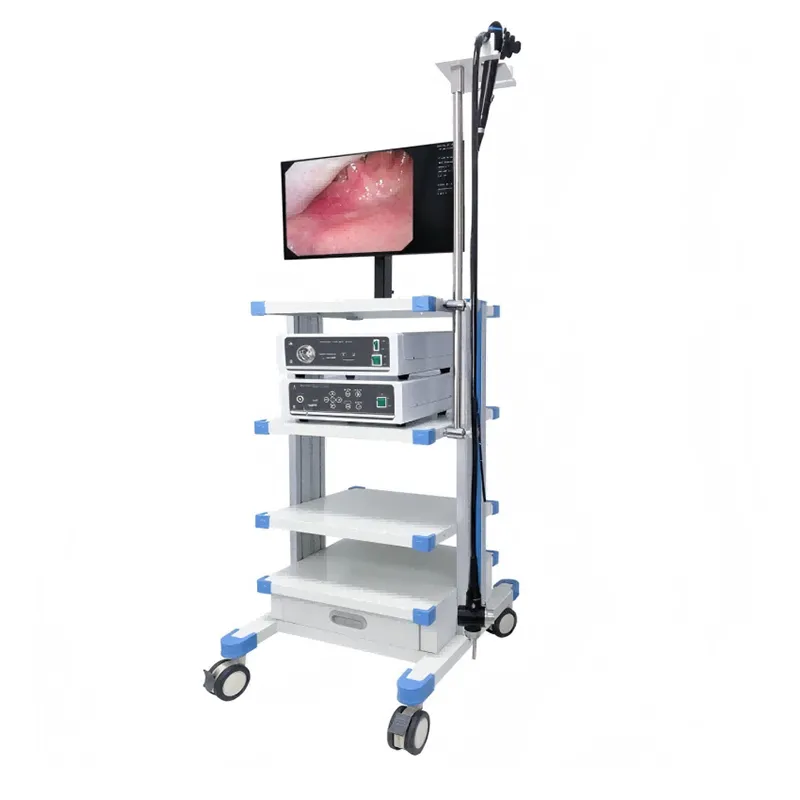

Model: HSP-EMV200E+HSP-ECV600E
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
– Bending operation: Traction chain structure, whole sealed waterproof.
– Image display: Two image display optional.
– Split machine: Main part and light source are split.
– Warranty: One year (free), permanent repairs (not free).
– Package size :64*18*48cm (G.W.: 5.18kgs).
Specification
| Item | Video Colonoscope | Video Gastroscope |
| Diameter of Distal-end | Φ13.0mm | Φ9.2/9.8mm |
| Diameter of Insert Tube | Φ12.8mm | Φ9.2/9.6mm |
| Clamp Aperture | Φ3.2/3.7mm | Φ2.8mm |
| Working Length | 1350mm | 1030mm |
| Total Length | 1650mm | 1330mm |
| View of Field | 140 º | |
| Depth of View | 3-100mm | |
| Resolution | CMOS1,000,000 Pixels high resolution | |
| Tip Deflection | up 180° down 180°L/R 160° | up 210° down 90° L/R 100° |
