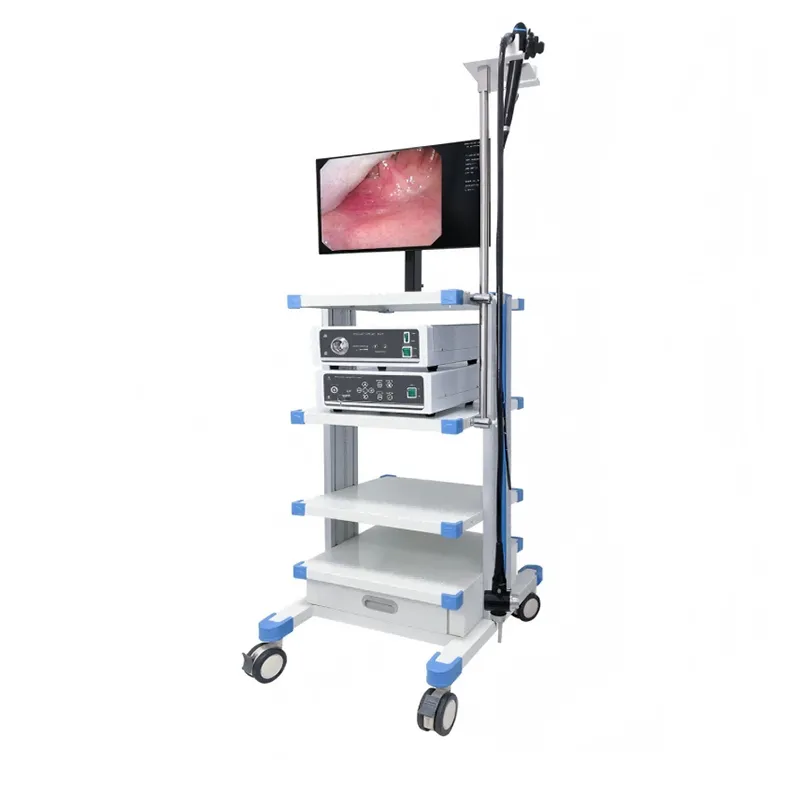

Gastroscope
Model: HSP-EMV200
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
– Bending operation: Traction chain structure, whole sealed waterproof.
– Image display: Two image display optional.
– Split machine: Main part and light source are split.
– Warranty: One year (free), permanent repairs (not free).
– Package size :64*18*48cm (G.W.: 5.18kgs).
Specification
| Item | Video Gastroscope |
| Diameter of Distal-end | Φ9.8mm |
| Diameter of Insert Tube | Φ9.6mm |
| Clamp Aperture | Φ 2.8mm |
| Working Length | 1050mm |
| Total Length | 1350mm |
| View of field | 140 º |
| Depth of view | 3-100mm |
| Resolution | CMOS1,000,000 Pixels high resolution |
| Tip Deflection | up 210° down 90°L/R 100° |
