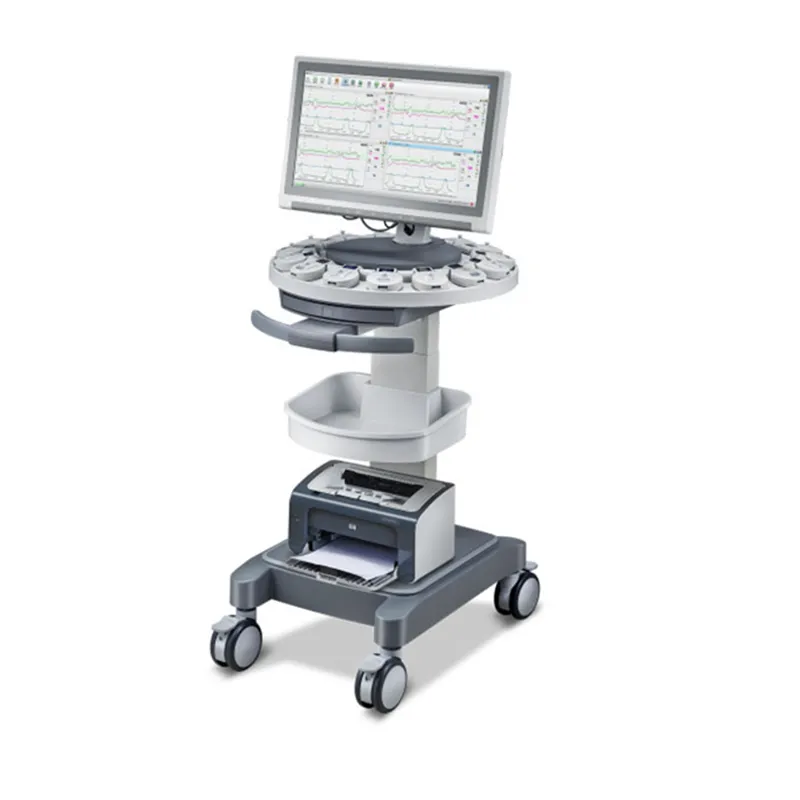

Central Monitoring System
Central Monitoring System

Edan FTS-6 Central Monitoring System

Model: FTS-6

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support

Application： Labor & delivery rooms, Maternity wards, Obstetric outpatient clinics , Central fetal monitoring stations


Share:
Inquire Now Add to Basket Next Product

The EDAN FTS-6 Central Monitoring System is a wireless fetal telemetry and centralized monitoring solution designed for modern obstetric care. It enables real-time, multi-patient fetal and maternal monitoring from a single central station, significantly improving workflow efficiency while enhancing patient comfort.

By combining wireless fetal transducers with advanced central monitoring software, the FTS-6 allows expectant mothers to move freely during monitoring, while clinicians can continuously observe fetal heart rate, uterine activity, and fetal movement across multiple beds. The system supports comprehensive data storage, review, analysis, and reporting, making it ideal for labor and delivery rooms, maternity wards, and obstetric clinics.

Main Features

- Centralized monitoring of multiple patients from one workstation

- Wireless fetal monitoring for improved maternal mobility and comfort

- High-resolution 21.5" color display with intuitive user interface

- Supports singleton and multiple pregnancies (twins/triplets)

- Real-time display of FHR, TOCO, and fetal movement

- Automatic transducer recognition and flexible pairing

- Advanced CTG analysis compliant with NICHD guidelines

- Comprehensive alarm management for enhanced clinical safety

- Data recording, review, printing, and report generation

- HL7 interface available for HIS/EMR integration

Specification

Display

- Main Display: 21.5-inch wide TFT color LCD (16:9) with touch-screen capability.

- Transducer Display: 0.96-inch OLED (128×64 pixels).

Ultrasound Transducer

- Configurations: 4–8 probes supported.

- 12-crystal wireless transducer design, lightweight (<170g).

- Dimension: ~81mm × 35mm (±1mm).

- Operating FHR mode: PW with autocorrelation; frequency 1 MHz.

- FHR measurement range: 50 bpm – 240 bpm.

- TOCO range: 0–100 (arbitrary units).

- Fetal movement (AFM) display range: 0–999.

Power & Battery (Wireless Transducers)

- Rechargeable Li-ion battery (3.7 V, 1600 mAh).

- Continuous working time: >8 hours.

- Charge time: <5 hours; battery cycle life >500 cycles.

Wireless Communication

- RF EIRP output power: <20 dBm.

- Frequency range: 2.4 GHz–2.4835 GHz; channels 1–13.

Working Modes

- Automatic fetal movement (FM) detection.

- AFM trace/black mark selectable.

- NICHD standardized CTG analysis included.
