Model: F15
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: F15
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support

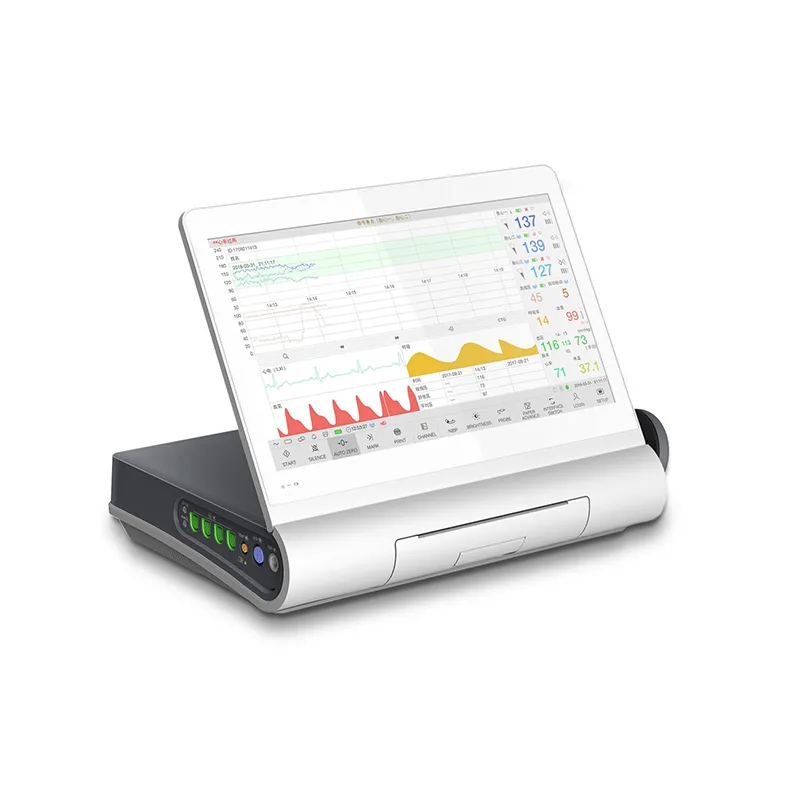

F15 series fetal and maternal monitor is the perfect combination of advanced technology and sophisticated algorithm for Obstetrics' new era.
With state-of-art design, delicate appearance and strong mechanical structure, F15 presents the midwives with the deepest sincerity to bring the most efficient work flow to clinics, such as automatic probe activation and wireless charging, to keep the monitoring process in hand all the time.
Main Features
-15.6-inch HD glass-finished, fully laminated display
-Full touchscreen operation with a user-friendly UI
-High-definition resolution for more detailed image changes
-Three interfaces for various scenarios
-Easy modification of basic settings
-IQ Demodulation: Patented technology breaks through the barriers of traditional monitoring technology and effectively solves problems such as fetal heart rate interruption, doubling, and halving during labor.
-One-touch bed transfer: Wireless monitoring bed transfer is more efficient without removing the probe
-Resumable transmission after disconnection: Completely free from distance restrictions, monitoring data supports long-term resumable transmission
Specification
| Model | F15 |
| Display | 15.6″ high-resolution color touchscreen (1920×1080) |
| Dimensions | 389 × 296 × 82.5 mm |
| Weight | Approx. 8 kg |
| Fetal Heart Rate (FHR) | 50–240 bpm |
| Maternal Heart Rate (MHR) | Detectable with overlap alert |
| Uterine Contraction (TOCO) | 0–100% relative pressure |
| Touch Interface | Capacitive touchscreen, gloved or wet-hand operable |
| Data Backup | 15-minute short-term buffer |
| Alarms | Configurable CTG and maternal/fetal alerts |
| Power Supply | AC mains, optional rechargeable battery for mobility |
