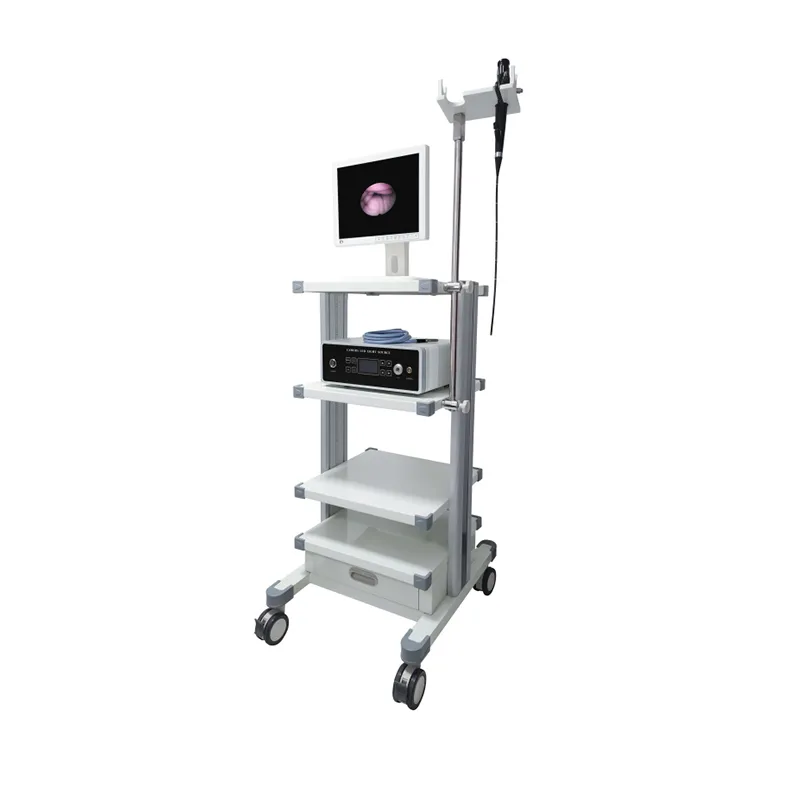

HSP-GBS9 Fiber Nasopharyngoscope
HSP-GBS9 Fiber Nasopharyngoscope

HSP-GBS9 Fiber Nasopharyngoscope

Model: HSP-GBS9

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support



Share:

Main Features

-High resolution: using high-resolution color 1/2.8-inch CMOS, the horizontal resolution reaches 900 lines; the color reproduction is true, and the image is clear.

-Easy operation: full digital adjustment (DSP);

-Easy to use: The camera adopts split design, CMOS integrated structure;

-Dual output: The video signal adopts two BNC heads to output 1.0Vρ─ρ signal;

-Convenient power supply: AC220V×10% input;

-Low power consumption: 25W power consumption.

-Package size :50.5*46*20cm (G.W.:8.5kgs)

Specification

ItemFiber Nasopharyngoscope
Distal-endΦ5.2mm
Insert tubeΦ5.0mm
Biopsy channelΦ2.0mm
Working length410mm
Total length670mm
View of field9°
View of field3-50mm
Tip deflectionup 160° down130°
