Endoscope Sterilization Equipment

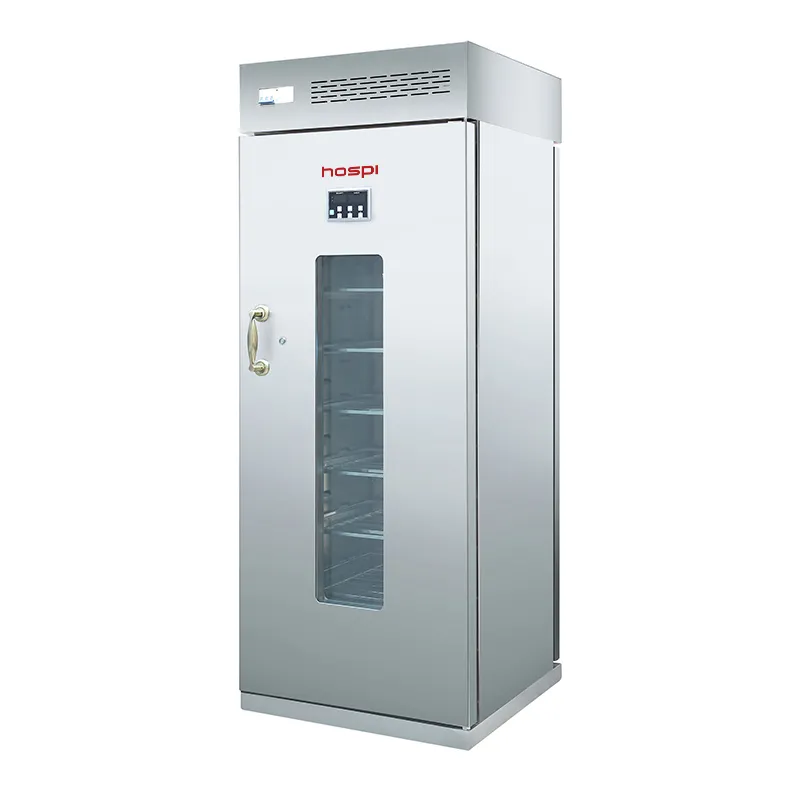

YGZ-500A Endoscope reprocessors
YGZ-500A Endoscope reprocessors

YGZ-500A Endoscope reprocessors

YGZ-500A Endoscope reprocessors suitable for departments requiring drying, such as sterilization supply centers, operating rooms, and laboratories.

Share:

Main Features

1. Electronically controlled door lock, double-door design


2. Removable threaded tube, dedicated hanger for breathing tubes


3. Optimized air duct and circulation system, with air convection device


Control System:


1. Touchscreen control with three shortcuts


2. Simple and flexible operation, safe and stable operation


Structural Features:


1. Constructed entirely of high-quality 304 stainless steel for corrosion resistance


2. Insulated interlayer to prevent heat loss


3. Tempered glass window for continuous viewing of internal operations


Specification

Model: YGZ-500A



Interior Volume: 500L



Interior Dimensions: 580mm*560mm*1550mm



Overall Dimensions: 740mm*700mm*1880mm



Door Opening: Electronically controlled



Electric Power Supply: 220V



Fan Power: 90W



Heating Power: 3000W



Temperature Range: Room Temperature - 90°C



Time Range: 0-99 Minutes



Single Door/Double Door: Double Door



Shelves: 7



Pipe Hangers: 3/18



Drain Tray: 1



Material: Entire unit made of 304 stainless steel
