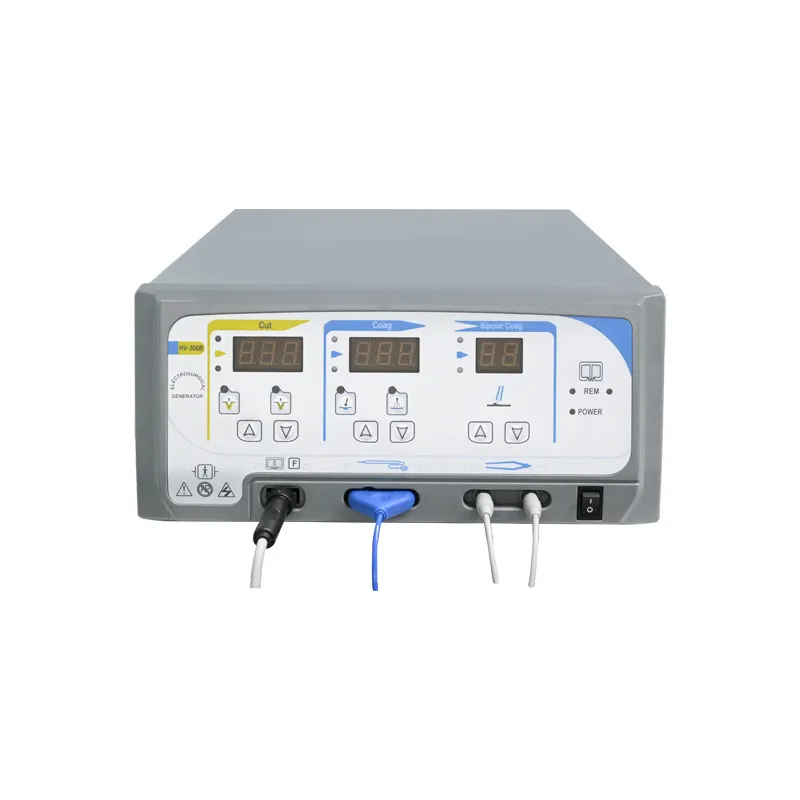

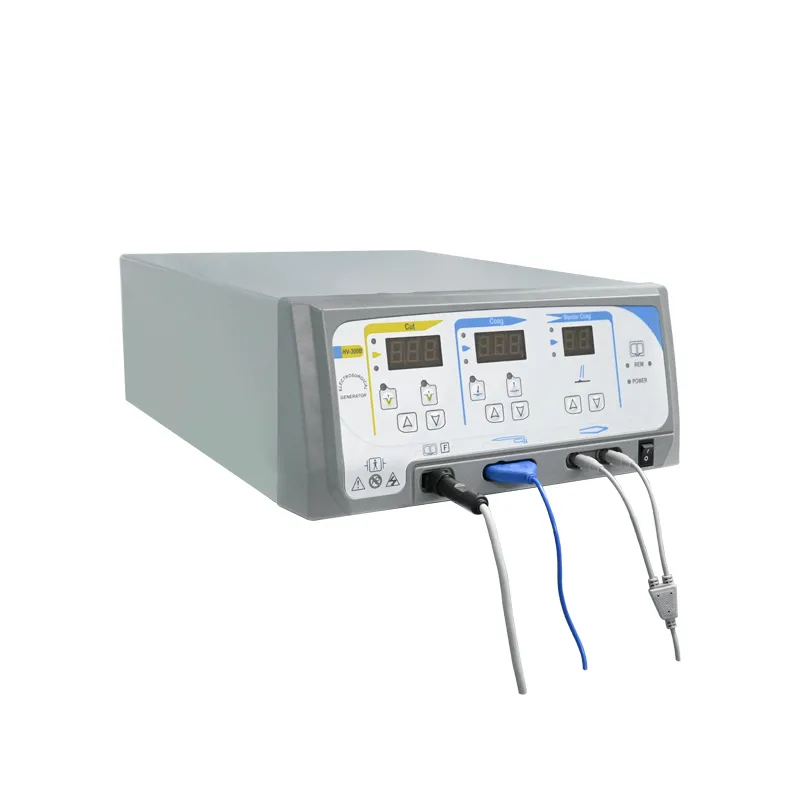

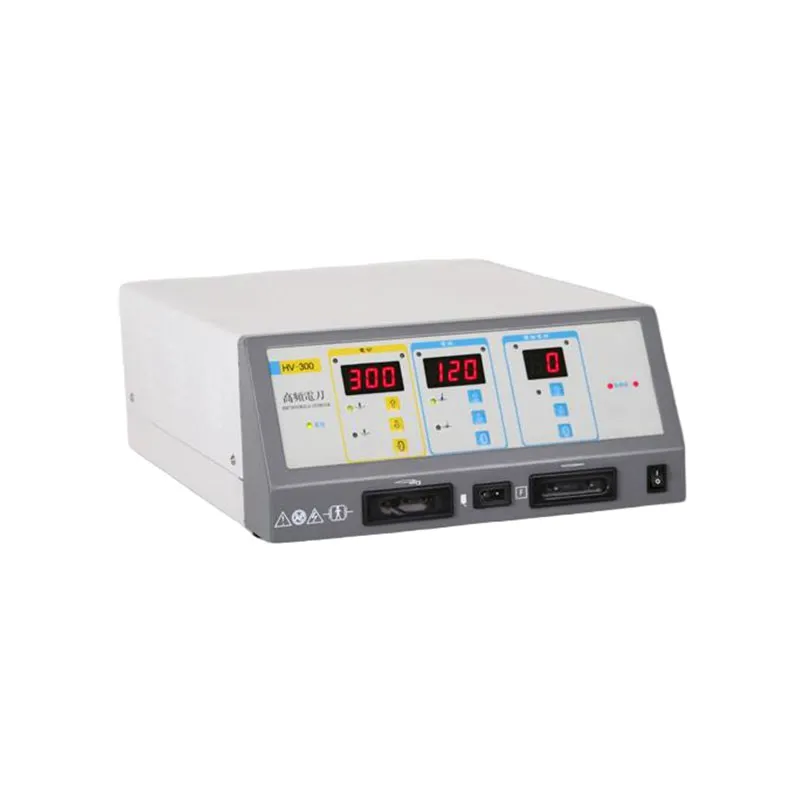

HSP-HV300 Electrosurgical Unit

Model: HSP-HV300

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support


Share:

HSP-HV300 Electrosurgical Unit with isolated output design, it provides properpower outputfor cutting and coagulating tissue in both monopolar and bipolar surgeries.

It can meet the needs of many surgical operations. Adopting singlechip microcomputer control technology and modular design, it features simple design, convenient maintenance,powerful functions, stable performance and easy operation, and is equipped with versatile jacks for accessories.


Main Features

- Supports monopolar and bipolar modes for a wide range of surgical procedures.

- Multiple working modes: Pure Cut, Blend Cut, Fulgurate Coagulation, Spray Coagulation, Bipolar Coagulation.

- Return Electrode Monitoring (REM) ensures patient safety by detecting poor contact.

- Automatic self-test on startup for reliable performance.

- Stable power output with precise control for smooth and effective tissue cutting and coagulation.

- Anti-stick technology reduces tissue adhesion to electrodes.

- Compact and lightweight design with easy-to-use digital interface.

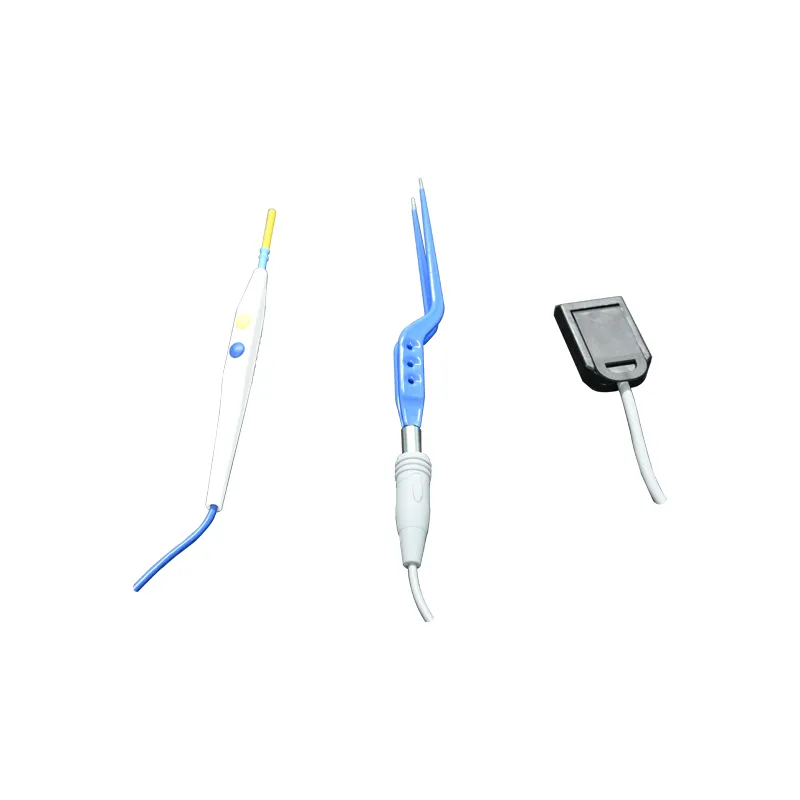

- Compatible with accessories like smoke evacuators and bipolar forceps.

- Ideal for general surgery, gynecology, ENT, urology, and orthopedics.

Specification

Main MaterialABS external housing
Voltage220V±22V,50Hz/60Hz
Working Frequency512kHz ±5%
Variety of Equipmentclass 1,type CF.Ordinary Equipment
Working FashionLoading intermittently, Functioning continuously.
Leakage Currents To GroundLess than 50μA
Leakage Currents Through PatientLess than 50μA
Package Dimensions38x42x28cm
Gross Weight13kg
