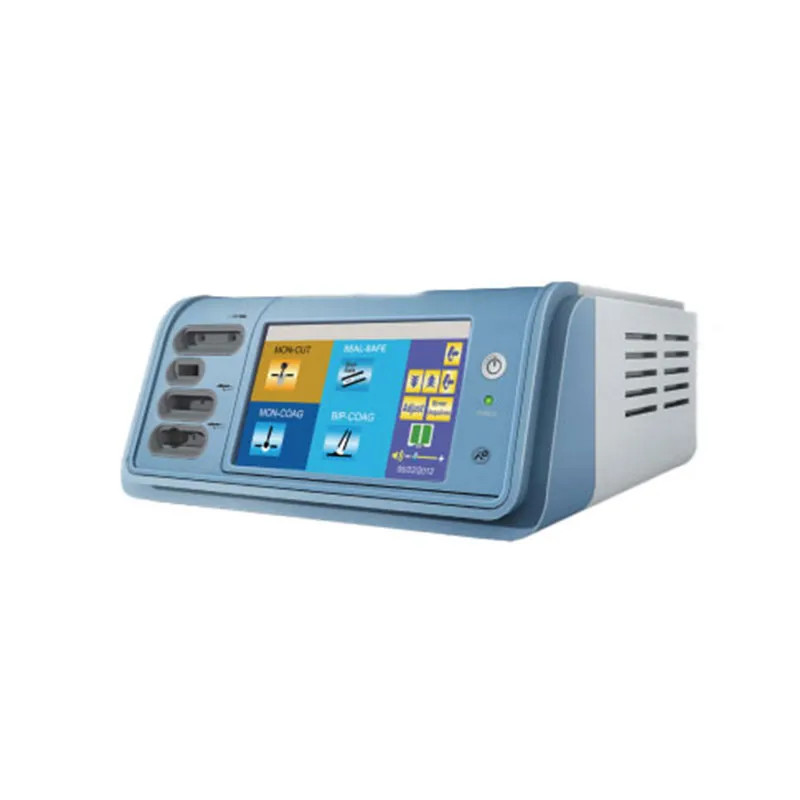

HSP-HV300B Electrosurgical Generator

Model: HSP-HV300B

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support


Share:

Main features

HSP-HV300B is an electrosurgical generator (ESU) with isolated output design, which provides proper power output for cutting and coagulating tissue in both mono-polar and bipolar surgeries. It can meet the needs of many surgical operations. Adopting single-chip microcomputer control technology and modular design, it features simple design, convenient maintenance, powerful functions, stable performance and easy operation, and is equipped with versatile jacks for accessories.

Main Features

-Digital display of output power, and sound signal given when the minimum or maximum power limit is reached

-Four mono-polar cutting modes: pure, blend1, blend2, and blen 3

-Two mono-polar coag modes: fulgurate and spray

-One bipolar mode: bipolar coag

-Designed with patient plate continuity monitoring circuit, which can effectively prevent electrical burn to patient

-Isolated RF output

-Output controlled by pencil switch or footswitch

-Adjustable output sound volume

-Functions expandable : for use in combination with endoscope or argon trolley

-Top-quality components and devices employed, and high reliability ensured


Specification

Main Frequency512 K HZ
Power Supply110V/60Hz;220V/50Hz
Weight8.00KG
Dimension34*16*47
High Frequency LeakageMonopolar:<150mA;Bipolar<60mA
Low Frequency LeakageNormal Polarity,Intact Chassis Ground:<10μANormal Polarity,Ground open<50μAReverse Polarity,Ground Open<50μASink Current,140V Applied,All inputs<50μA
