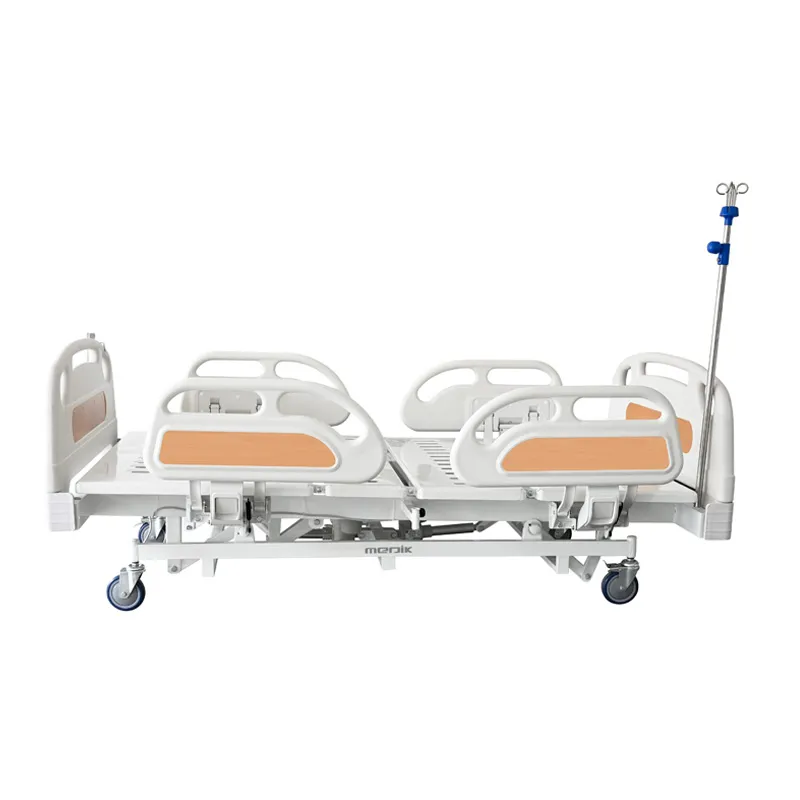

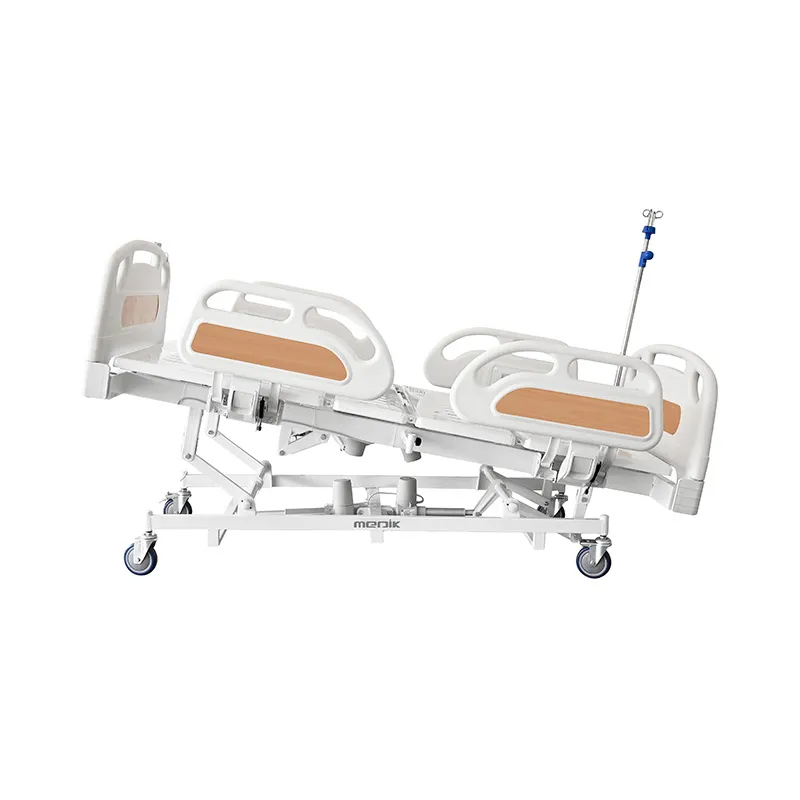

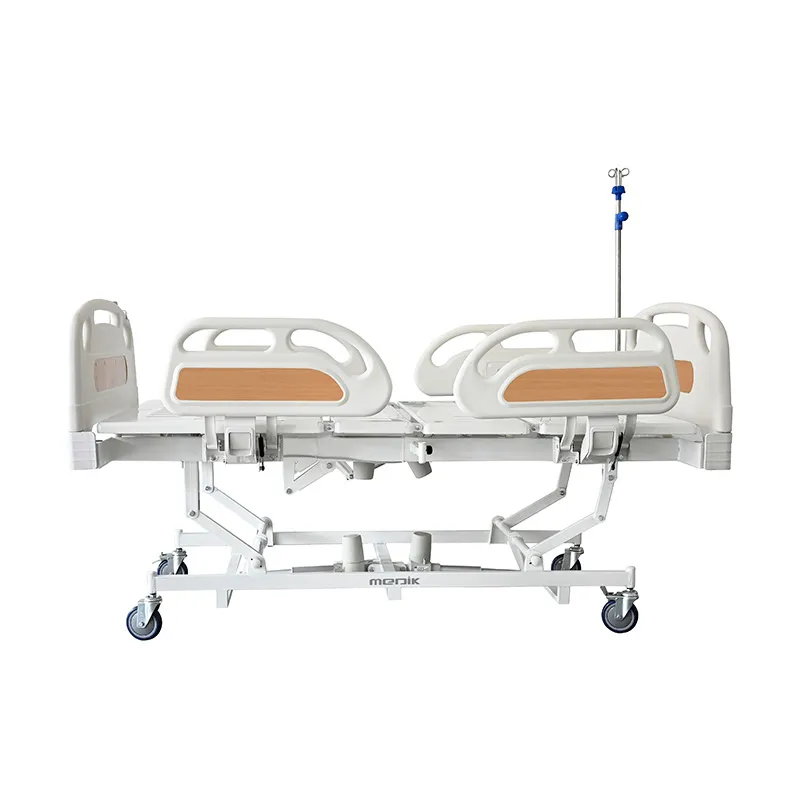

Electric Medical Bed
Brand: Medik
Model: YA-D5-08B
Overall Size:2200*990*450-770mm
Loading Capacity: 225kg
Functions: Backrest, Footrest, High-low, Trendelenburg, Reverse trendelenburg
Certificate: ISO/CE
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts
After-sales Service: Online technical support
The YA-D5-8B Electric Hospital Bed is designed with an extra-wide platform to accommodate larger patients or those requiring a more spacious sleeping area. It features a hand control, sturdy safety rails, and dedicated CPR and vascular position buttons for rapid response. Combining full functionality with exceptional width, it is an ideal choice for modern hospital wards.
Main features
- Bed frame with electrophoresis and epoxy powder coating
- 4-section perforated steel platform with ventilation holes, upgraded to a wider design
- Hand remote control for all electric functions
- Four foldable ABS side rails
- Detachable ABS headboard and footboard with patient card holder
- 125 mm noiseless casters, two with brakes
Technical parameter
| Model | YA-D5-8B |
| Overall Size | 2120 × 1200 × 450–750 mm (83.5″ × 47.2″ × 17.7″–29.5″) |
| Height Adjustment Range | 450–750 mm (17.7″–29.5″) |
| Height of side rails | 370mm |
| Backrest Angle | 0°–75° |
| Knee Section Angle | 0°–40° |
| Trendelenburg | 0°–12° |
| Reverse Trendelenburg | 0°–12° |
| Castor Size | Ø 125 mm (5″) |
| Safe Working Load | 200 kg (440 lbs) |
