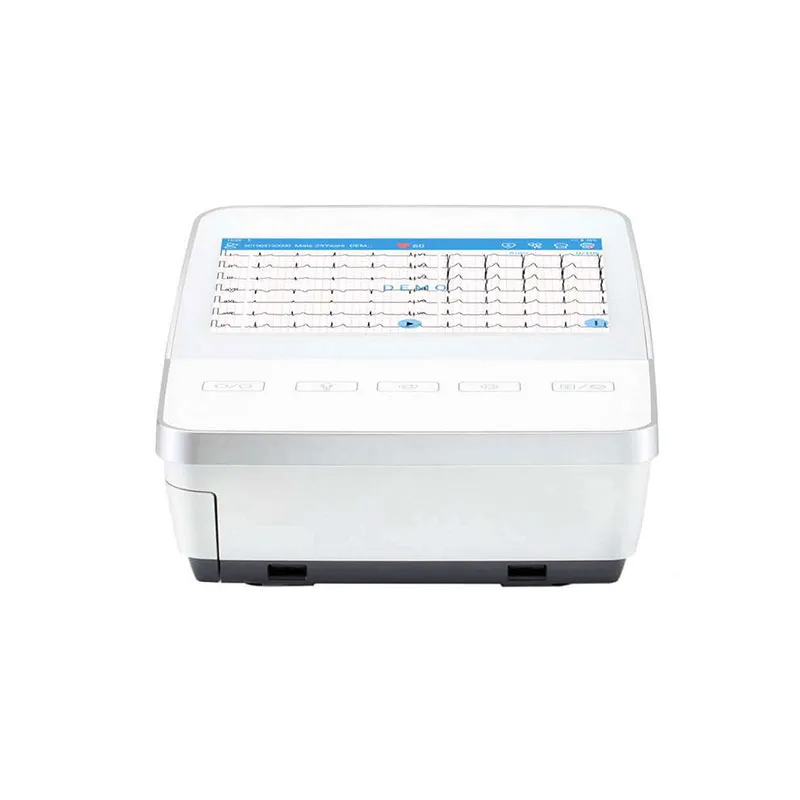

SE-1200-Pro Portable 12 Lead ECG Machine

Model: SE-1200-Pro

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support




Share:

Designed for the convenience of caregivers, the SE-1200 Pro enables easy-going workflows. The device will automatically record ECG once the signals are well sampled, and present a timely reminder when the lead wires are misconnected, or the pacemaker is detected.

Main Features

1.Serious Diseases Notification

-A red notification will identify the severe illnesses after the diagnosis.

2.Averaged Template

-The device identifies the averaged template's P, Q, S, and T points with the relevant measurement parameters. Doctors can relocate these points manually and recalculate the corresponding parameters.

3.Reports Comparison

-Users can compare two reports on the screen to follow a patient's clinical condition.

4.Pacemaker Analysis

-80 kHz sampling rate.

-Auto pacemaker detection.

-Pick up pace signals lowest from 30μs, 500μV.

-Independent pacemaker detection channel.

5.Gesture Amplification & Measurement

-Users can amplify any segment of waveforms and measure it on the screen with gesture operation.

Specification

ECG measuring method9/12-channel
Display8.0"LCD touchscreen with 1,280 x 800 resolution
Data transferLAN,wi-fi,ethernet,4G network
Frequency range0.01 Hz to 500 Hz
Heart frequency measurement30 bpm to 300 bpm
Measuring accuracy±1 bpm
Filter:
AC filter50 Hz/60 Hz/off
DFT filter0.01 Hz/0.05 Hz/0.32 Hz/0.67 Hz
EMG filter25 Hz/35 Hz/45 Hz/off
Low-pass filter350 Hz/300 Hz/270 Hz/150 Hz/100 Hz/75 Hz
ECG storage formatDAT,SCP,FDA-XML,DICOM,PDF,JPG,BMP,PNG,and TIFF
Power supplymains or battery operated
Battery typelithium ion
Pacemaker recognition:
1-channel
Amplitude±500μV to±700 mV
Width30μs to 2,0 ms
Sampling frequency80,000 Hz,rhythm lead
