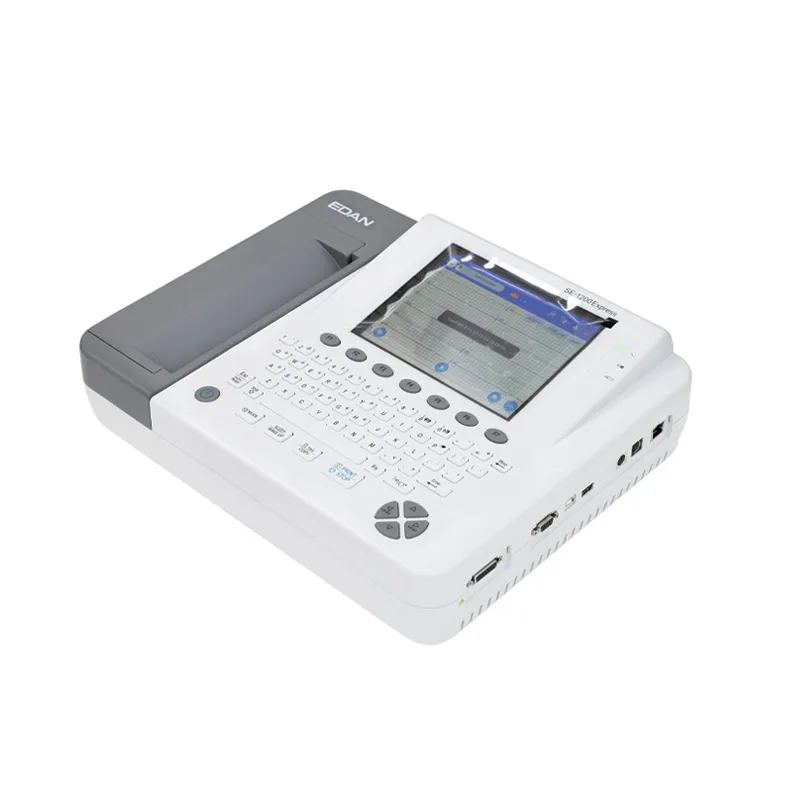

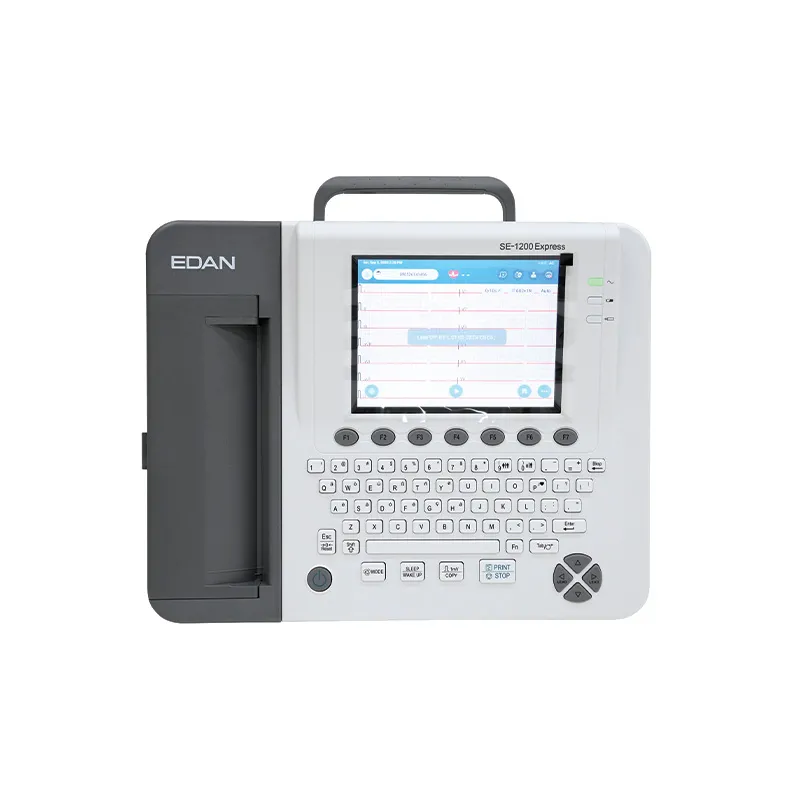

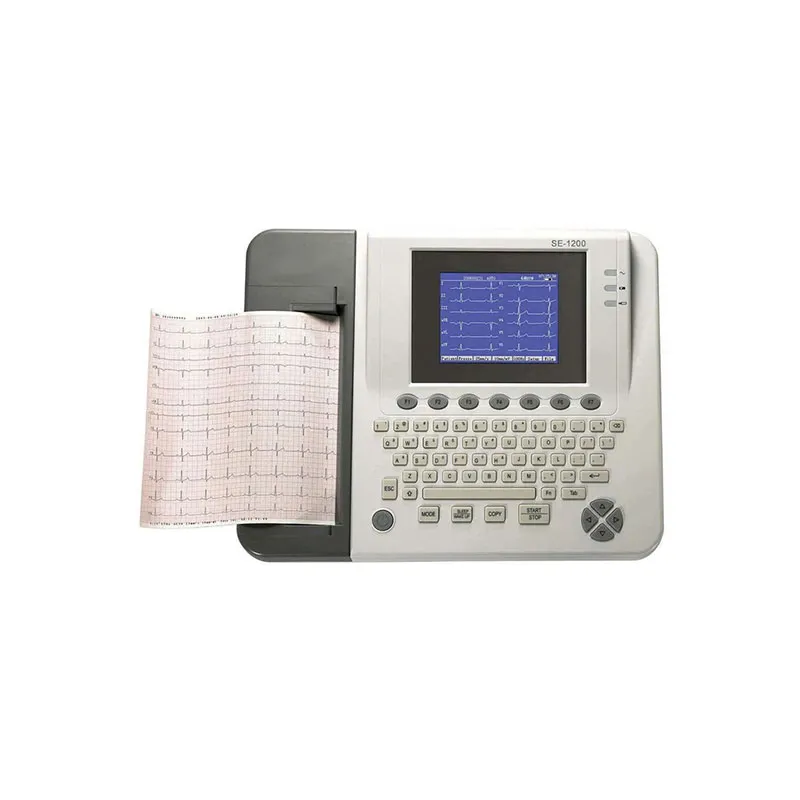

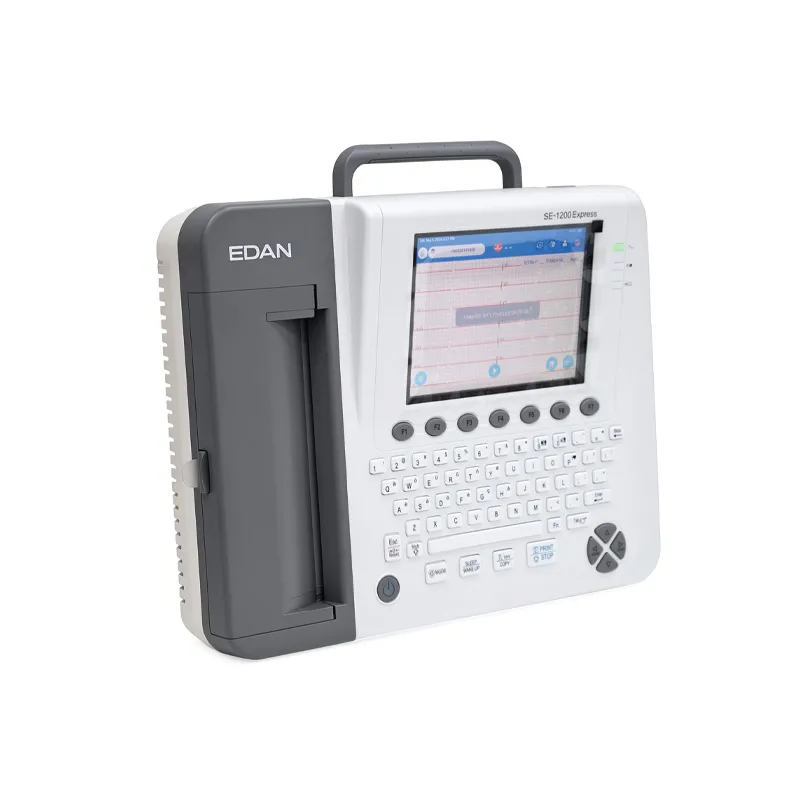

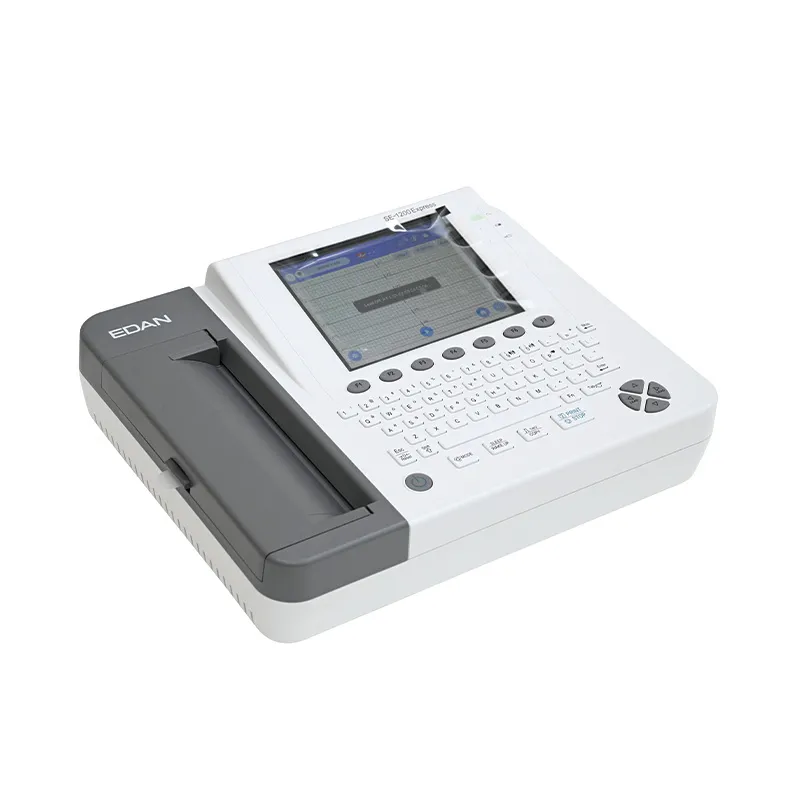

Model: Edan SE-1200
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
1.User-friendly Design
-8” high resolution color touch screen
-Alphanumeric keyboard
2.Streamlined Workflow
-One-touch operation with age and gender shortcuts
-Support linear/2D barcode scanner to simplify workflow
3.Accurate Clinical Performances
-Weak signal detection with the advanced 24-bit A/D converter technology
-Anti-noise technology with comprehensive filters and high CMRR over 140dB
-ECG Signal Quality Indication
-120s real-time ECG waveform freezing and review to assist diagnosis
-Automatic measurements and interpretation tested with CSE/AHA/MIT databases
-Extend printing once arrhythmia is detected for further rhythm analysis
-Built-in Glasgow Interpretation
-Advanced ECG analysis: Vector ECG (optional)
4.Flexible Printing Solutions
-Built-in high resolution thermal recorder to print on normal thermal paper and A4 size fax paper
-Support external USB printer
5.Data Management
-Internal storage up to 800 ECGs and can be enlarged by USB flash disk
-SE-1515 Data Management System software for data management on PC (optional)
6.Extensive Communications
-DATA transmitting to PC via LAN/ internal Wi-Fi (Wi-Fi is optional)
-Report formats: PDF and optional SCP/FDA-XML/DICOM data export
-Bi-directional data communication with DMS
