Model: HSP-ECG60
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support

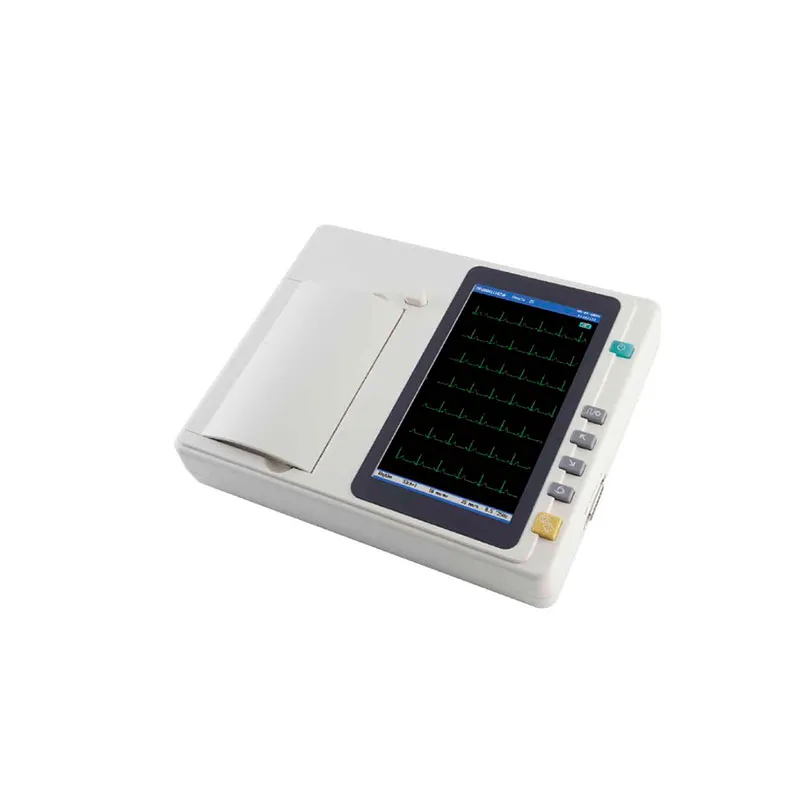

The HSP-601 is a compact and reliable ECG machine that provides accurate 12-lead cardiac measurements for fast clinical assessment. With clear waveform display, digital filtering, and easy operation, it is ideal for routine examinations, outpatient clinics, and bedside monitoring. Portable design and flexible data output make it convenient for everyday diagnostic use.
Main Features
-7 inch high resolution color touch screen
-12-lead simultaneous acquisition and display
-ECG Automatic measurement and interpretation function
-Complete digital filters, resisting baseline drift, AC and EMG interference
-Compact and lightweight design
-Support USB flash disk and micro SD card to extend memory
-Software upgrade via USB/SD card
-Built-in rechargeable Li-ion batte
Specification
| Items | Specification |
| Lead | Standard 12 leads |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | ±5mVpp |
| Input circuit | Floating; Protection circuit against Defibrillator effect |
| Input Impedance | ≥50MQ |
| Input circuit current | <0.05μA |
| Record mode | Automatic:3CHx4+1R,3CHx4,3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; |
| Manual: 3CH,2CH,3CH+1R,2CH+1R; | |
| Rhythm:Any lead selectable. | |
| Filter | EMG Filter: 25 Hz /30 Hz/ 40Hz/75 Hz / 100 Hz / 150Hz |
| DFT Filter: 0.05 Hz/0.15 Hz | |
| AC Filter:50 Hz /60Hz | |
| CMRR | >100dB |
| Patient leak current | <10μA(220V-240V) |
| Frequency Response | 0.05Hz~150Hz (-3dB) |
| Sensitivity | 2.5mm/mV,5 mm/mV,10 mm/mV,20 mm/mV (error:±5%) |
| Anti-baseline Drift | Automatic |
| Time constant | ≥3.2s |
| Noise level | <15μVp-p |
| Paper speed | 12.5mm/s,25mm/s,50mm/s |
| Recording mode | Thermal printing system |
| Paper specification | Roll 110mmx20M |
| Safety Standard | IEC I/CF |
| Sample Rate | Normal: 1000sps/channel |
| Power Supply | AC:100~240V,50/60Hz,30VA~100VA |
| DC: 14.8V/2200mAh, built-in lithium battery |
