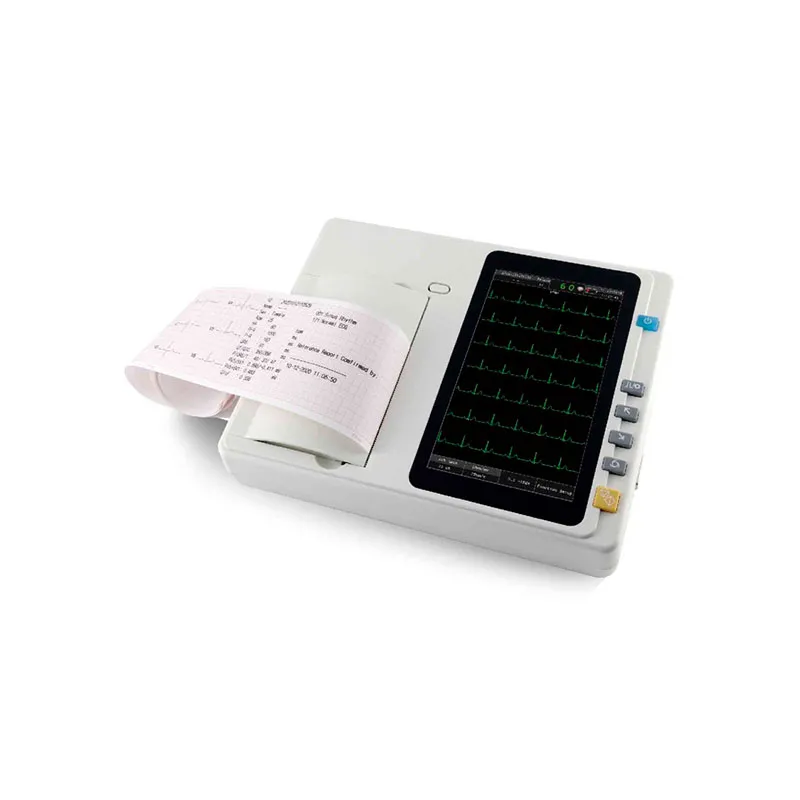

ECG Machine 3 Channel
ECG Machine 3 Channel

HSP-ECG301 ECG Machine 3 Channel For Patient

Model: HSP-ECG301

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support


Share:
Inquire Now Add to Basket

The HSP-ECG301 ECG Machine is a compact and reliable electrocardiograph designed to deliver accurate, real-time cardiac diagnostic results in clinical, hospital, and emergency settings. Equipped with advanced signal processing technology, it provides clean, stable ECG waveforms and supports multiple analysis modes to assist healthcare professionals in making fast and precise assessments.

Its intuitive interface, lightweight design, and easy data management make the HSP-301 an ideal choice for routine examinations, bedside monitoring, and mobile medical applications.

Main Features

-3 channel ECG Machine

-7 inch high resolution color touch screen

-12-lead simultaneous acquisition and display

-ECG Automatic measurement and interpretation function

-Complete digital filters, resisting baseline drift, AC and EMG interference

-Support USB flash disk and micro SD card to extend memory

-Software upgrade via USB/SD card

-Built-in rechargeable Li-ion battery

-Charging time less than 4 hours

-Connect to the ECG Workstation via LAN/USB


Specification

LeadStandard 12 leads
Acquisition ModeSimultaneous 12 leads acquisition
Measurement Range±5mVpp
Input circuitFloating; Protection circuit against Defibrillator effect
Input Impedance250ΜΩ
Input circuit current<0.05μA
Record modeAutomatic: 3CH 4+1R, 3CH 4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2;
Manual: 3CH, 2CH, 3CH-OR, 2CH+1R;
Rhythm: Any lead selectable.
FilterEMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz
DFT Filter: 0.05 Hz/ 0.15 Hz
AC Filter: 50 Hz / 60Hz
CMRR>100dB
Patient leak current<10μA (220V-240V)
Frequency Response0.05Hz-150Hz (-3dB)
Sensitivity2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error:±5%)
Anti-baseline DriftAutomatic
Time constant≥3.2s
Noise level<15μVp-p
Paper speed12.5 mm/s, 25 mm/s, 50 mm/s
Recording modeThermal printing system
Paper specificationRoll 80mmx20M
Safety StandardIEC I/CF
Sample RateNormal: 1000sps/channel
Power SupplyAC: 100~240V, 50/60Hz, 30VA~100VA
DC: 14.8V/2200mAh, built-in lithium battery

HSP-ECG301 ECG Machine
