Model: HSP-ECG1201
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-ECG1201
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support

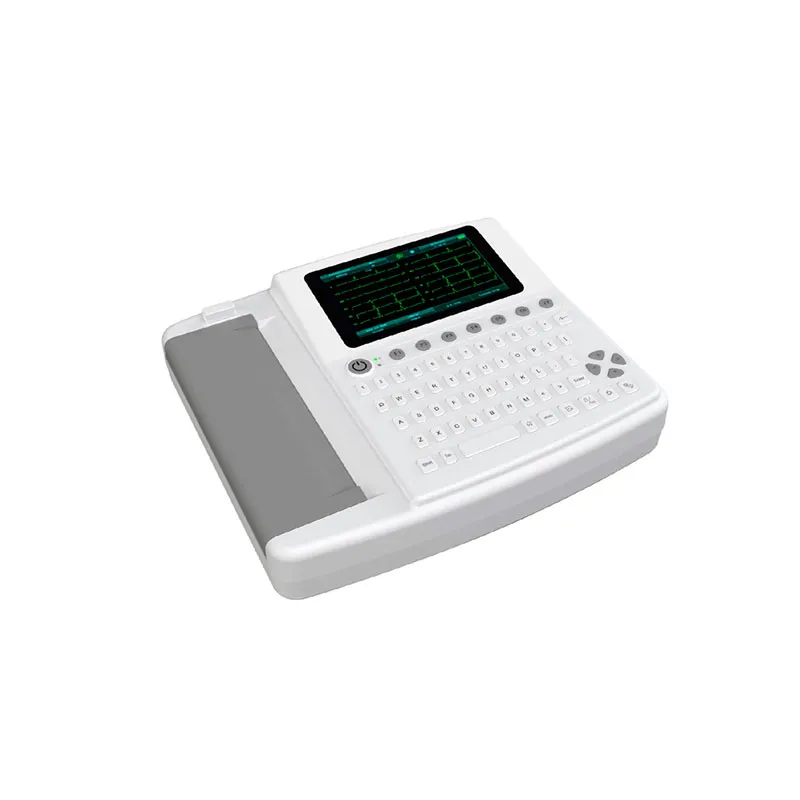

The HSP-ECG1201 ECG Machine is a professional-grade 12-lead ECG device offering simultaneous multi-lead acquisition, clear waveform display, and built-in thermal printing. Its compact design and reliable signal processing make it suitable for outpatient clinics, bedside monitoring, and general cardiac diagnostics.
Main Features
-12 channel ECG Machine
-7 inch high resolution color touch
-Full alphanumeric keyboard with shortcut keys, efficient in
-Simultaneous 12 leads ECG acquisition and
-Automatic ECG measurements and
-Internal storage up to 1000 cases, convenient for case review and statistic.
-Built-in rechargeable lithium high capacity battery
-ECG data can be transmitted to PC via USB. ECG reports can be saved, opened, in PC via ECG playback software.
Specification
| Lead | Standard 12 leads |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Sampling rate | 1000Hz |
| A/D Converter | 24bits |
| Frequency response | 0.05~160Hz (-3db) |
| Operation mode | Manual, Auto, Rhythm, 1 channel 1 minute |
| Filter | AC Filter: 50 Hz / 60Hz EMG Filter: 25 Hz / 35 Hz / 45Hz/75 Hz / 100 Hz / 150Hz DFT filter: 0.05Hz/0.5Hz |
| CMRR | ≥100dB (add AC filter) |
| Input mode | Floating and defibrillation protection |
| Input Impedance | ≥50ΜΩ (10Hz) |
| Input circuit current | ≤0.05μA |
| Input dynamic range | ±10mVp-p |
| Patient leak current | < 10pA |
| Calibration voltage | 1mV±2 % |
| Polarizing voltage | ≥±300mV |
| Time constant | ≥3.2s |
| Paper specification | 210mm (W)*30m(L) |
| Recording mode | Thermal printing system |
| Noise level | <15μVp-p |
| Memory | 1000 cases |
| Threshold | ≤20μV |
| Wave Gain/Sensitivity | .5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV(standard sensitivity: 10mm/mV) |
| Wave/ Paper speed | 12.5mm/s,25mm/s,50mm/s (±3%) |
| AC | 100~240V, 50/60Hz |
| DC | 14.4V, 2500mAh, 36.00Wh, built-in lithium battery |
