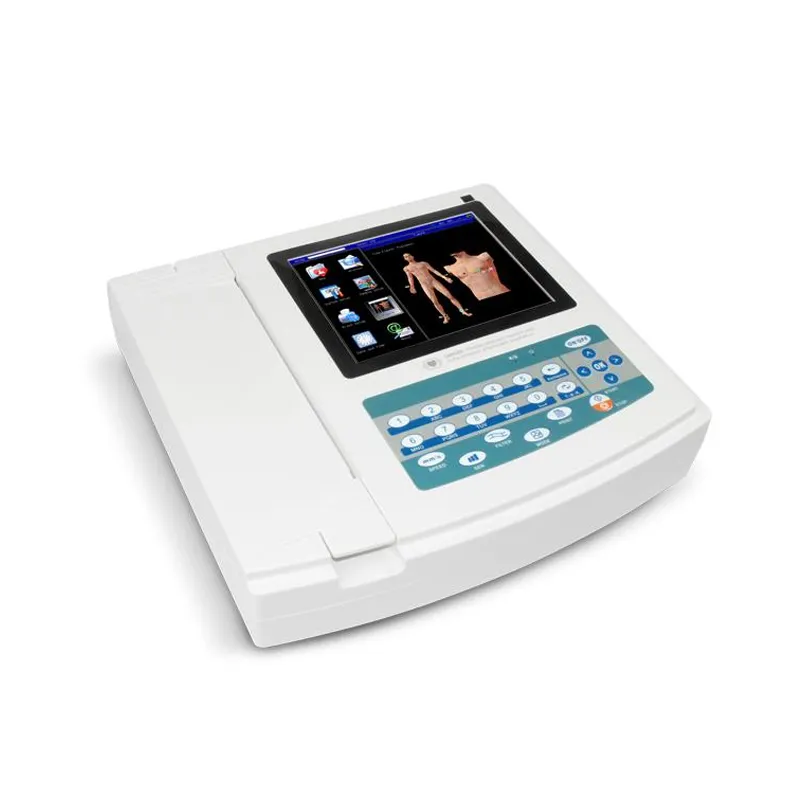

HSP-ECG1200G Digital 12 channel Electrocardiograph Touch Screen

Model: HSP-ECG1200G

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support

Inquire Now Add to Basket Next Product

Description
Download

The HSP-ECG1200G is a professional 12-lead electrocardiograph designed to deliver clear, reliable, and real-time ECG waveforms for clinical diagnosis. It simultaneously acquires 12 ECG signals and outputs high-resolution traces through a built-in thermal printer.

With both automatic and manual operating modes, customizable printing formats, intelligent analysis (selected models), and a multilingual interface, the HSP-ECG1200G is ideal for hospitals, clinics, physical examination centers, and mobile healthcare services. The lightweight design and rechargeable lithium battery ensure excellent mobility for bedside or on-site examinations.

Main Features

◆ 12-Lead Simultaneous Acquisition

• Real-time collection of 12 ECG signals

• Digital filtering (AC filter, baseline filter, EMG filter) for stable and noise-free waveforms

◆ Multiple Display & Print Formats

• Supports 3-lead, 6-lead, and 12-lead waveform display

• Flexible print modes: Auto 12×1, Auto 6×2+1 rhythm, Auto 6×2, Auto 3×4+2 rhythm, rhythm printing (12/10/8/6 channels), and manual record

• Adjustable paper speed, sensitivity, waveform length, and real-time print status display

◆ Automatic Measurement & Interpretation (Optional)

Automatically calculates:

• Heart rate (HR)

• P-R interval

• P duration

• QRS duration

• Q-T / Q-Tc interval

• Cardiac axis (P/QRS/T)

• R(V5), S(V1), R(V5)+S(V1)

Reduces clinical workload and improves diagnostic efficiency.

◆ Case Storage & Review

• Internal memory for storing patient ECG cases

• Supports data review, trend analysis, and report printing

◆ Flexible Power Supply & Portability

• AC/DC dual power

• Built-in rechargeable lithium battery

• Up to 10 hours standby or more than 3 hours continuous printing

• Ideal for bedside, outreach, and mobile medical services

◆ Multilingual User Interface

Supports multiple languages including English, Chinese, Portuguese, Turkish, German, Russian, and more—suitable for global users.

Specification

Model	HSP-ECG1200G
Leads	12-lead simultaneous acquisition
Display	High-resolution LCD screen
Filter System	AC filter, baseline filter, EMG filter
Printing Method	High-quality thermal printer
Print Modes	Auto 12×1, Auto 6×2+1, Auto 6×2, Auto 3×4+2, rhythm printing, manual
Paper Speed	Adjustable (e.g., 25 mm/s, 50 mm/s)
Sensitivity	Multiple gain options
Automatic Analysis	Available on selected models
Memory	Internal storage for ECG cases
Power Supply	AC/DC dual power
Battery	Rechargeable lithium battery
Battery Life	Standby ≥10 hours / continuous printing ≥3 hours
Languages	Multi-language support

HSP-ECG1200G ECG Machine
