12-Channel Electrocardiograph
12-Channel Electrocardiograph

ECG-1112M / ECG-1112L Digital 12-Channel Electrocardiograph

Model: ECG-1112M / ECG-1112L

Certificate: CE / ISO

After-sales Service: Online technical support

Warranty:  1-Year



Share:
Inquire Now Add to Basket Next Product

Product Overview

The ECG-1112M / ECG-1112L Digital 12-Channel Electrocardiograph is a high-performance 12-lead ECG device designed for accurate cardiac diagnostics in clinical environments. With advanced signal processing technology and intuitive interface, it delivers reliable ECG acquisition, display, analysis, and printing for adults, elders, pediatric patients, and other patient groups.

Available in two versions — ECG-1112M and ECG-1112L, both models provide precise 12-channel ECG waveforms and are suitable for use in hospitals, clinics, diagnostic centers, and emergency settings.


Key Features

1. Professional 12-Channel ECG Acquisition

 • Simultaneously records 12 leads for complete cardiac evaluation.

 • Clear waveform presentation enhances diagnostic accuracy.

2. Advanced Signal Processing

 • Low noise and adaptive filtering for high signal quality.

 • Accurate QRS detection and waveform interpretation.

3. Easy-to-Use Interface

 • Simple menu navigation and operational logic.

 • Clear numeric and waveform display.

4. Built-In Printing & Storage

 • Real-time ECG printing with integrated thermal printer.

 • Patient data storage for review and reporting.

5. Intelligent ECG Analysis

 • Automatic measurement of key parameters: PR, QRS, QT, heart rate.

 • Diagnostic interpretation available.

6. Flexible Connectivity

 • USB port for data export and connection to PC software.

 • Compatible with ECG management systems for digital record keeping.



Technical Specifications

ModelECG-1112M / ECG-1112L
Channels12-Channel simultaneous acquisition
Lead TypeStandard 12-lead: I, II, III, aVR, aVL, aVF, V1–V6
DisplayBuilt-in LCD screen
PrintingBuilt-in thermal printer
Sampling FrequencyHigh resolution (model dependent)
Input Impedance≥10 MΩ
Frequency Response0.05 – 150 Hz
Gain SettingsAutomatic and manual gain adjustment
Patient TypesAdult / Pediatric
Data StoragePatient ECG data storage & review
ConnectivityUSB interface
Power SupplyAC mains or internal battery (model dependent)
Clinical UseHospital, Clinic, Emergency, Diagnostic Center



Inquiry Basket
(0)
Empty

Related Products

More Products
HSP-ECG1200G Digital 12 channel Electrocardiograph Touch Screen

HSP-ECG1200G Digital 12 channel Electrocardiograph Touch Screen

SE-2012 3 Lead Holter ECG Machine​

SE-2012 3 Lead Holter ECG Machine​

SE-1200-Pro Portable 12 Lead ECG Machine

SE-1200-Pro Portable 12 Lead ECG Machine

Edan SE-1200 12-lead ECG Machine with Interpretation​

Edan SE-1200 12-lead ECG Machine with Interpretation​

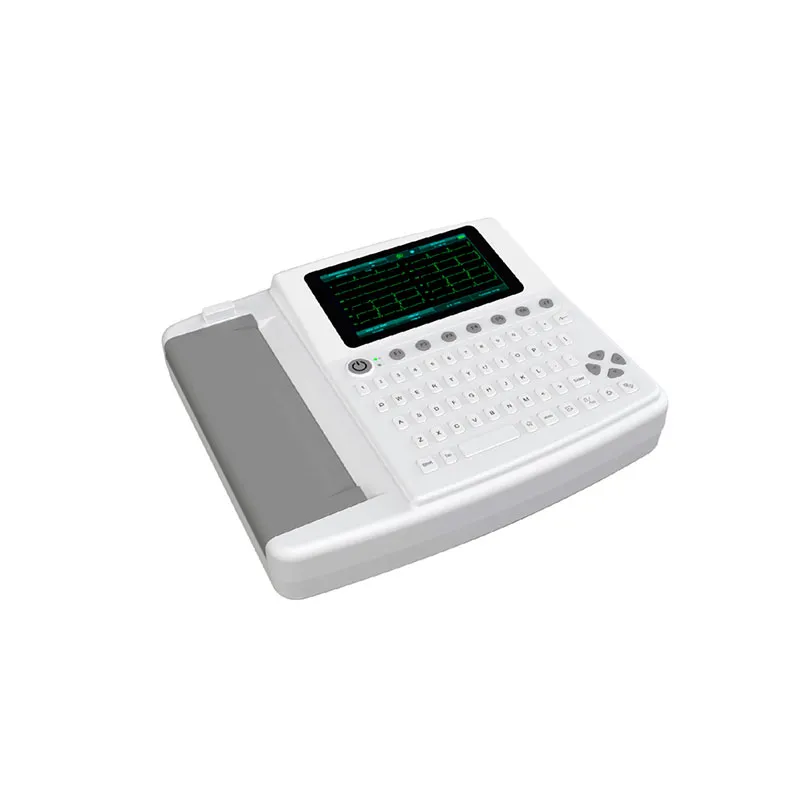

HSP-ECG1201 12-lead ECG Machine for Medical Office​

HSP-ECG1201 12-lead ECG Machine for Medical Office​

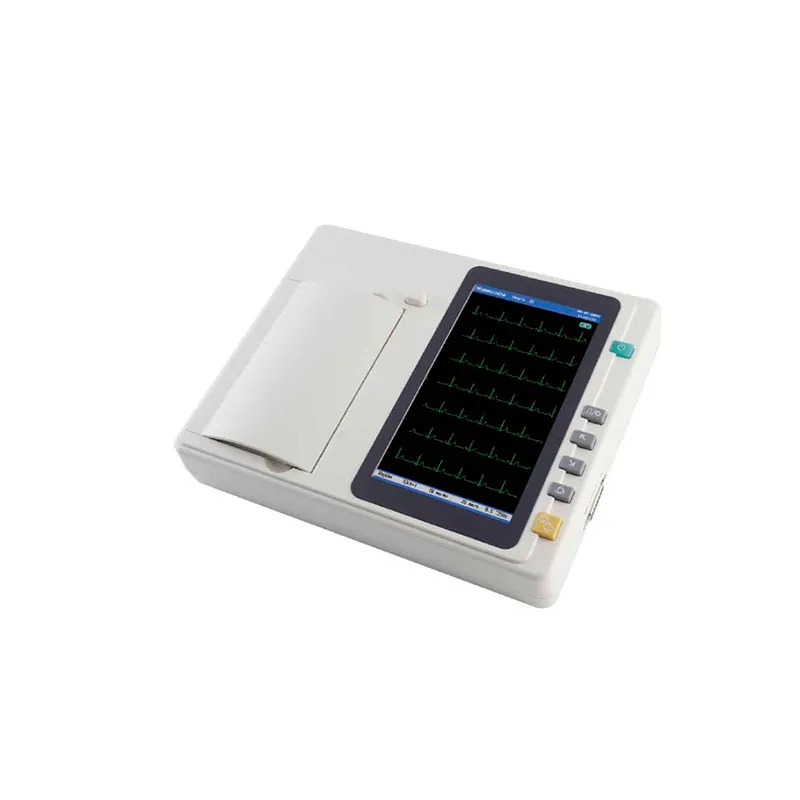

12 Channel ECG Machine with Interpretation​ HSP-ECG601
