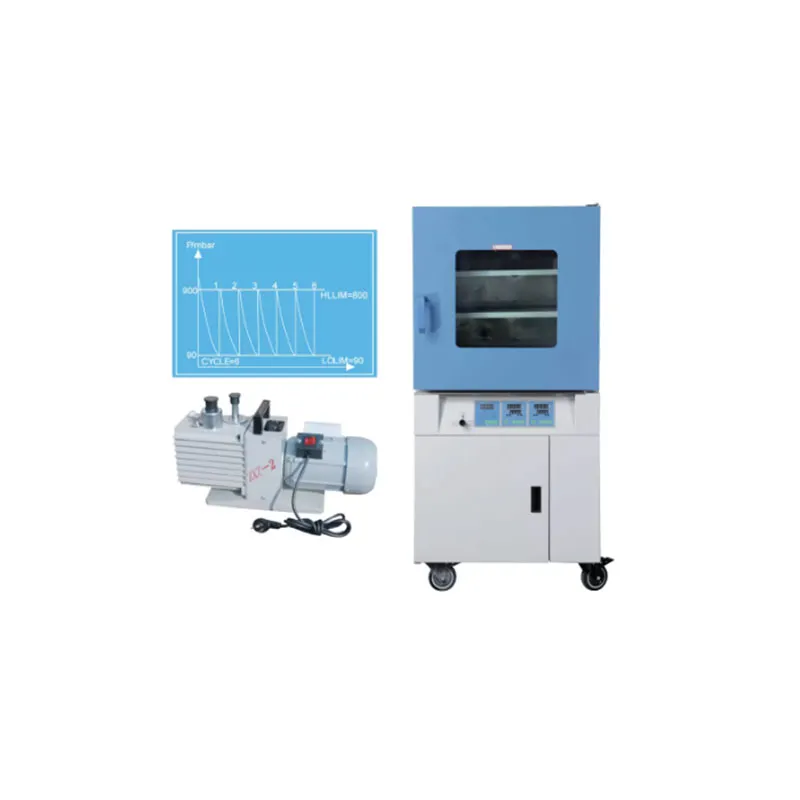

Drying Oven
Model: HSP-BPZ
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
-Programmable vacuum cycle
-LCD vacuum degree window
-Suitable for drying thermo-sensitive material
-Shorter drying time for sample that does not dry easily
-Dual layer tempered glass door for clear observation
-Fully automatic electromagnetism controlled vacuum
-Minimum heating time 50% less than traditional vacuum oven
Specification:
| Model | BPZ-6933LC | BPZ-6503LC | BPZ-6213LC | BPZ-6123LC | BPZ-6093LC | BPZ-6063LC | BPZ-6033LC | |
| Electrical Requirement | AC380V 50HZ | AC220 50HZ | ||||||
| Temperature Range | RT+10~200℃ | |||||||
| Display Resolution | 0.1℃ | |||||||
| Temperature Stability | ±1℃ | |||||||
| Vacuum Gauge | Digital Display | |||||||
| Vacuum Degree | 133Pa | |||||||
| Vacuum Sensor | Resistance silicon tube pressure sensor | |||||||
| Vacuum Control Range | 10~105 Pa | |||||||
| Power Consumption | 5600W | 3800W | 2100W | 2050W | 1350W | 1800W | 1200W | |
| Chamber Volume | 913L | 431L | 215L | 125L | 90L | 63L | 32L | |
| Interior Dimension (W×D×H, mm) | 750×1160×1050 | 630×810×845 | 560×600×640 | 500×500×500 | 450×450×450 | 400×400×400 | 320×320×320 | |
| Exterior Dimension (W×D×H, mm) | 1400×1395×2010 | 1000×1040×1855 | 720×820×1750 | 660×640×1400 | 610×590×1350 | 600×570×1390 | 550×490×1240 | |
| Shelves | 5pcs (Independent temperature control) | 4 pcs (Independent temperature control) | 3 pcs (Independent temperature control) | 3pcs | 2pcs (Independent temperature control) | 3pcs | 2pcs | |
| Chamber Material | 304 Stainless steel (1Cr18Ni9Ti) | |||||||
