Drying Oven

Drying Oven
Drying Oven

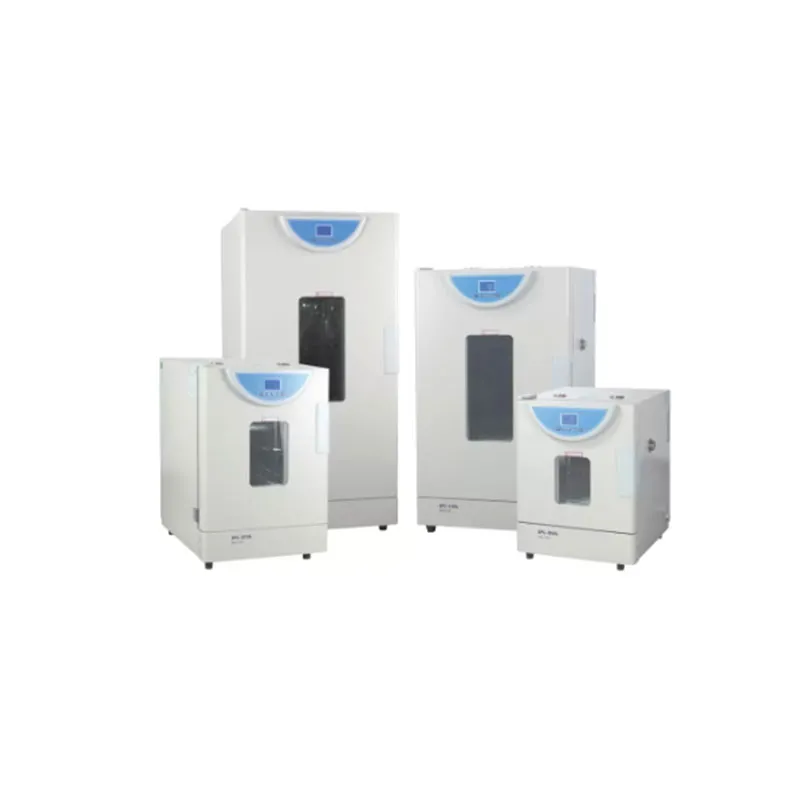

HSP-BPG(LCD) Drying Oven

Model: HSP-BPG(LCD)

Product origin: CHINA

Warranty: 1 Year

After-sales Service: Online Technical Support


Share:

Main Features

-Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.

-Auto-controller of fan speed to prevent damage to the samples.

-Large LCD screen to display more data at same time.

-Self-check function easy to identify problems.

-There is a 25mm instruction connection hole on the left side of the chamber for easy testing operation and temperature.

-Programmable controller: 7 periods 63 steps, 0~5999min for each periods, fan speed 0 to 100% adjustable.

-Independent audible and visible temperature-limiting alarm system ensures experiments run safely.

-RS485 connector can connect computer and printer to record the parameters and the variations of temperature.(Option)

Specification

ModelBPG-9040ABPG-9070ABPG-9140ABPG-9240ABPG-9420A
Electrical Requirement220V 50HZ
ControllerProgrammable LCD display
Power Consumption850W1100W1550W2050W3000W
Temperature RangeRT+10~250℃
Display Resolution0.1℃
Temperature Stability±1℃
Temperature Uniformity±2.5%(@100℃)
Shelves2(PCS)3(PCS)
Interior Dimension(W×D×H)mm350×300×400400×320×550500×380×750600×450×9001000×510×800
Exterior Dimension(W×D×H)mm505×655×600550×660×750655×715×980755×785×11301140×850×1080
Chamber Volume40L80L150L250L400L
Timing Range0~5999min
