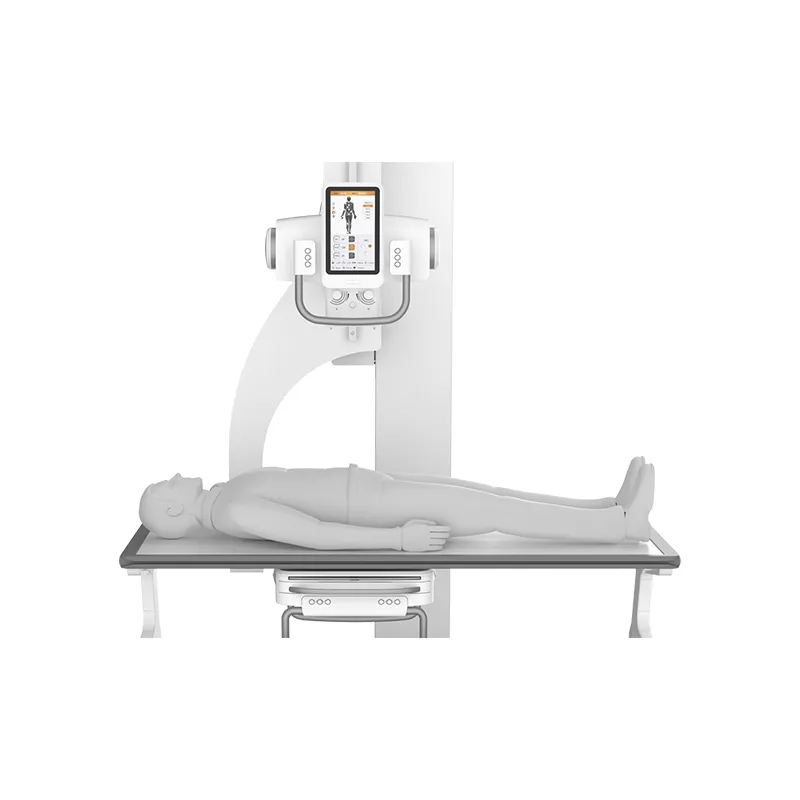

New Oriental 1000U1 U-Arm Digital Radiography System

Model: Oriental 1000U1

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support

Product Description

The New Oriental 1000U1 Digital Radiography System is a fully automatic U-arm DR system designed for efficient radiographic imaging in modern radiology departments. With its integrated design, compact structure, and intelligent control system, the equipment delivers high-quality diagnostic images while simplifying operation and improving workflow efficiency.

The system is equipped with a 17 × 17-inch wireless flat panel detector, advanced image processing technology, and automatic positioning functions to support various radiographic examinations. Its flexible structure allows easy imaging for patients in standing, sitting, stretcher, or wheelchair positions, making it suitable for hospitals, imaging centers, and general radiography departments.

Key Features

High-resolution wireless detector

A 17 × 17-inch flat panel detector provides large field-of-view imaging and high-resolution digital radiographs for accurate diagnosis.

Low-dose imaging technology

The system supports DAP dose display and ion chamber AEC, ensuring optimized exposure control and reduced radiation dose for patients.

One-key automatic positioning

Automatic programmed positioning allows technologists to complete positioning within seconds, improving examination efficiency.

Flexible wireless imaging

The wireless detector can be easily used for stretcher or wheelchair examinations, enabling flexible imaging in different clinical situations.

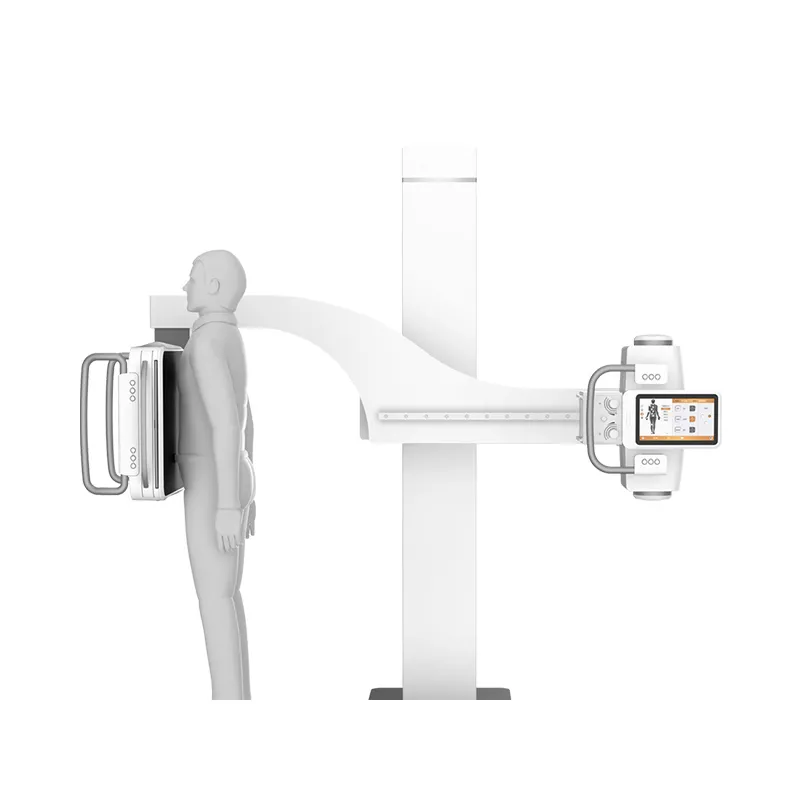

Stable U-arm structure

A self-balanced U-arm structure supports multi-axis movements and allows installation without wall support, providing flexible installation and smooth operation.

Intelligent safety design

Non-contact infrared anti-collision technology helps protect patients and equipment during system movement.

Clinical Applications

The system supports a wide range of radiography examinations:

• Chest radiography

• Spine imaging

• Orthopedic imaging

• Abdominal imaging

• Trauma imaging

• Extremity examinations

Technical Specifications

System Type	U-Arm Digital Radiography System
Detector Type	Amorphous Silicon Flat Panel Detector
Detector Size	17 × 17 inch
Pixel Size	approx. 142 μm
Pixel Matrix	3028 × 3028
Spatial Resolution	3.6 lp/mm
A/D Conversion	16 bit
Generator Type	High-frequency generator
Generator Power	approx. 50 kW
Tube Voltage Range	40 – 150 kV
Tube Current Range	25 – 630 mA
Exposure Time	1 ms – 6.3 s
Focal Spot Size	0.6 / 1.2 mm
Anode Heat Capacity	150 kHU
Source to Image Distance	1100 – 1800 mm
Detector Rotation	−45° to +45°
U-Arm Rotation	approx. −30° to +120°
Detector Weight	approx. 6.5 kg
