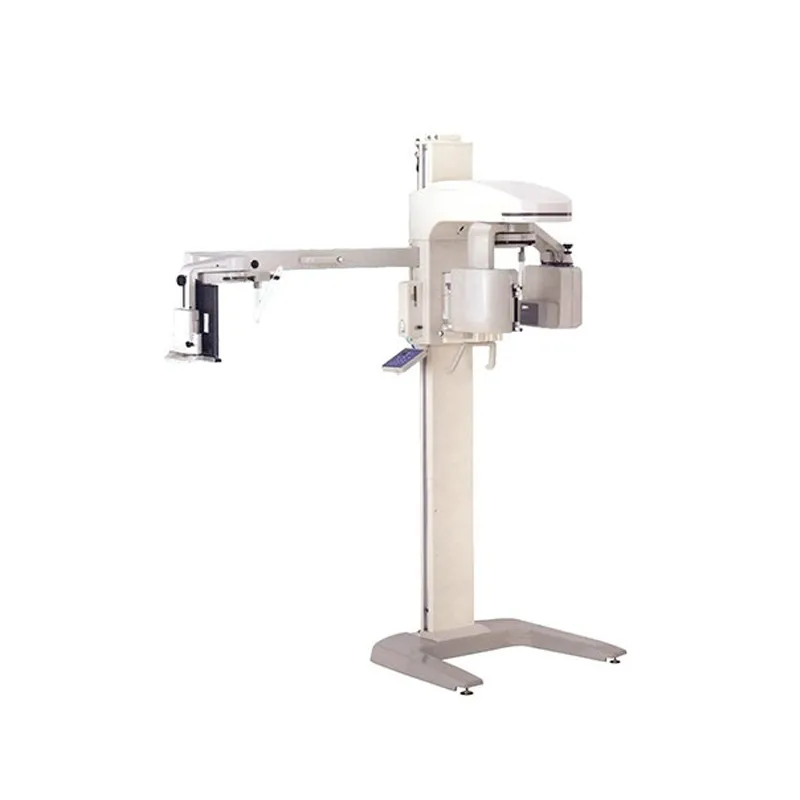

Dental X-ray Machine
Model: HSP-DP2000
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
The HSP-DP2000 is a high-performance panoramic dental X-ray system designed for precise and efficient dental imaging. It delivers clear panoramic and TMJ images, making it ideal for dental clinics, hospitals, and imaging centers.
Equipped with a high-frequency X-ray generator, a fine focal spot, and adjustable exposure settings, the system ensures sharp images with consistent quality. The ergonomically designed tube head and adjustable patient positioning accommodate a wide range of patients, enhancing both operator efficiency and patient comfort.
Main Features
• High-frequency X-ray generator for stable and consistent imaging
• Supports panoramic and TMJ imaging modes
• Fine focal spot (0.5 × 0.5 mm) for high-resolution detail
• Adjustable tube head height for patient comfort
• Manual and automatic exposure options for flexibility
• Compatible with standard 150 × 300 mm films
• Ergonomic and user-friendly design
Specification
| Model | HSP-DP2000 |
| Input Voltage | 220V±10% 50Hz±1Hz fuse≤1Ω |
| Input Power | Instantaneous Loading:2500W |
| Standby Mode: 110W 0.5A | |
| Fuse | 15A (Ø6x30) |
| Anode Voltage | auto 60kV-88kW |
| manual 60kV-88kW | |
| Anode Current | Panorama: 12mA±20% |
| TMJ 12mA±20% | |
| X-ray Tube | X-ray Generator: high frequency |
| DC generator | |
| Focus | 0.5x0.5mm |
| Zoom | 1.20-1.30 |
| Total Filtrations | 2.5MMAL |
| Exposure Time | Panoramic 14s |
| TMJ 3sx4 | |
| Film Size | 150x300mm |
| X-ray Cassette | 150mm, 300mm |
| X-ray Intensification | MSL-40 |
| Vertical Range of Tube Head | 853-1643mm |
| Lifting Device | Manual electromagnetically locked |
