Dental X-ray Machine

Home / Products / Dental Equipment / Dental X-ray Machine / 4-in-1 Cone Beam CT Dental Imaging System for Clinics
Dental Imaging System
Dental Imaging System

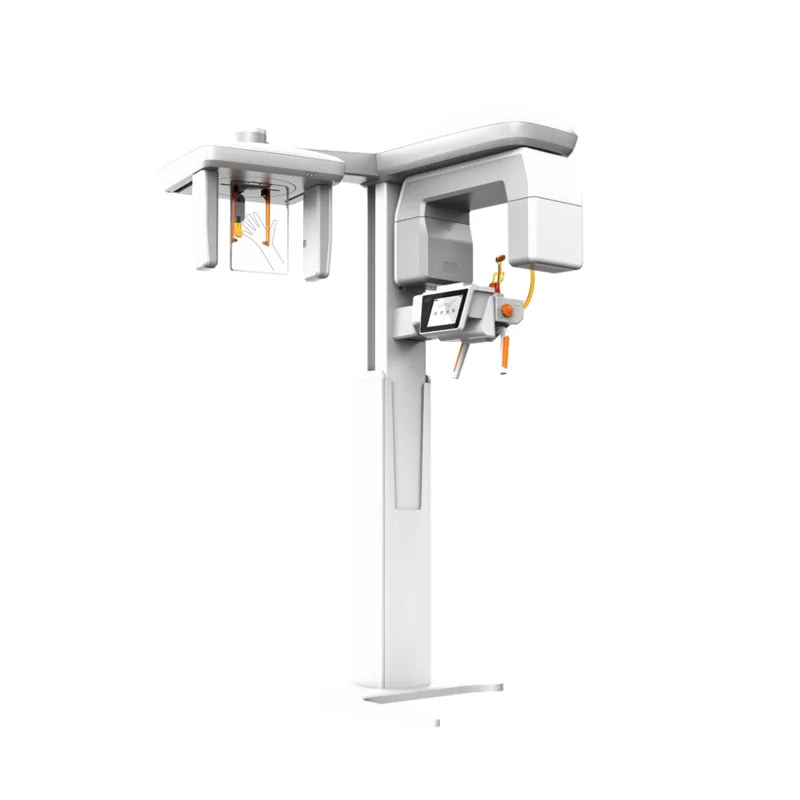

4-in-1 Cone Beam CT Dental Imaging System for Clinics

Model: PT-4D-COMMANDER

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support




Share:
Inquire Now Add to Basket

This 4-in-1 Cone Beam CT system is an advanced dental imaging solution that integrates CBCT (3D), panoramic, TMJ, and cephalometric imaging into one compact platform. Designed for modern dental clinics and imaging centers, it delivers high-resolution images with fast scanning speed and flexible diagnostic options.

Equipped with a high-performance flat-panel detector and multiple voxel and FOV selections, the system supports accurate diagnosis for implant planning, orthodontics, maxillofacial analysis, and general dental examinations. The upright, face-to-face patient positioning enhances ease of use while improving patient comfort and workflow efficiency.

Main Features

• 4-in-1 imaging system: CBCT, panoramic, TMJ, and cephalometric

• High-resolution flat-panel detector with 16-bit grayscale

• Multiple voxel sizes for flexible image quality control

• Wide range of FOV options for different clinical applications

• Fast scan and reconstruction for efficient patient throughput

• Upright, face-to-face patient positioning

• Designed for stable performance and daily clinical use

Specification

ModelPT-4D-COMMANDER
Functions 4 in 1CBCT，Panoramic, TMJ, Cephalometric
CBCT DetectorAmorphous silicon detector
Grey Scale16 bits
Tube Voltage70-90 Kv
Focus0.5 mm
Patient Positionstand up, face to face
Scanning TimeCBCT: 15sPanoramic: 17s Cephalometric: 0.7s/12sTMJ: 20s
Reconstruction<60s
Voxel0.25mm, 0.2mm, 0.1mm, 0.075mm
FOV5*5, 8*8, 12*10,16*10
Guarantee Period3 Years
Equipment   Dimensions1900mm(L)*1350mm(W)*1700-2400mm (H)
Assembly   DimensionsCephalometric included2500mm(L)*2000mm(W)*2700mm(H)
Without Cephalometric2000mm(L)*2000mm(W)*2700mm(H)
