Chamber Volume: 18L/23L
Class Grade: Class B
Certificate: CE / ISO
After-sales Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts
Chamber Volume: 18L/23L
Class Grade: Class B
Certificate: CE / ISO
After-sales Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

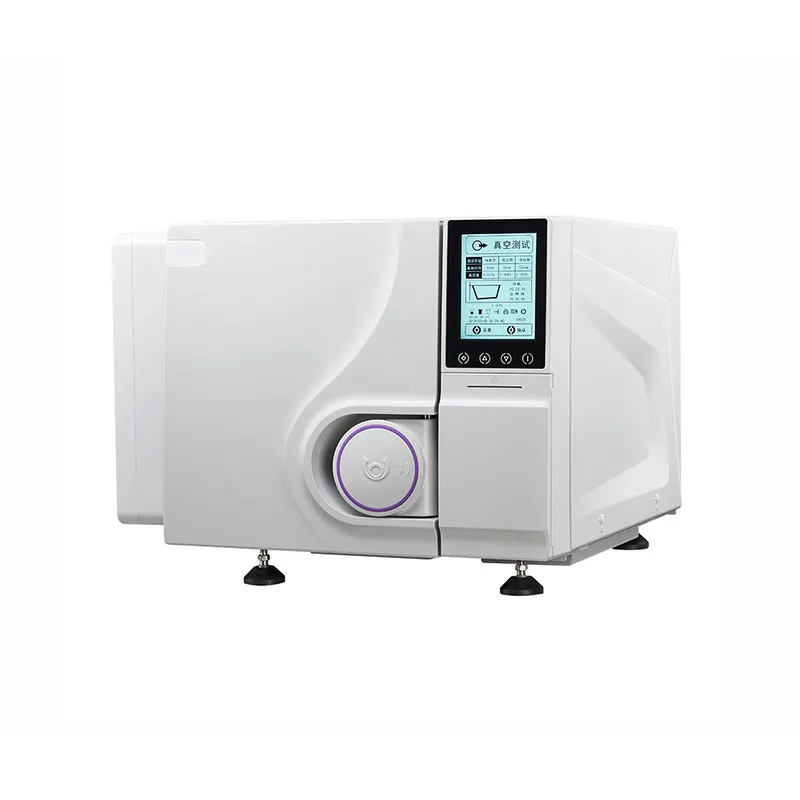

The HSP-TANZO series Class B dental autoclaves provide fast, safe, and reliable sterilization for dental and medical instruments. Designed for modern clinics, they handle wrapped, hollow, and solid instruments, ensuring compliance with international sterilization standards. The TOUCH model offers an intuitive color touchscreen and advanced diagnostics, while the CLASSIC model features simple push-button operation for easy workflow integration.
Main Features
- True Class B pre-vacuum sterilization for wrapped, hollow, and solid instruments
- Large stainless-steel chamber for high capacity and durability
- TOUCH model: color touchscreen, USB/SD data export, multi-language interface
- CLASSIC model: push-button controls with LED indicators
- Built-in drying cycle for ready-to-store instruments
- Safety protections: door lock, thermal and pressure safeguards
- Optional printer or data logging for compliance documentation
- Water quality monitoring and intelligent diagnostics (TOUCH model)
Specification
| Chamber Capacity | 18 L | 23 L |
| Chamber Dimensions | Ø245 × 350 mm | Ø245 × 470 mm |
| External Dimensions | 557 × 471 × 401 mm | 667 × 471 × 401 mm |
| Weight | 56 kg | 63 kg |
| Power Supply | 220 V / 50-60 Hz | 220 V / 50-60 Hz |
| Power Consumption | ~1,800 W | ~1,800 W |
| Sterilization Temperature | 121 °C & 134 °C | 121 °C & 134 °C |
| Standards Compliance | EN 13060 / EN 285 / 93/42 EEC | EN 13060 / EN 285 / 93/42 EEC |
