Model: HSP- 360B
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP- 360B
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

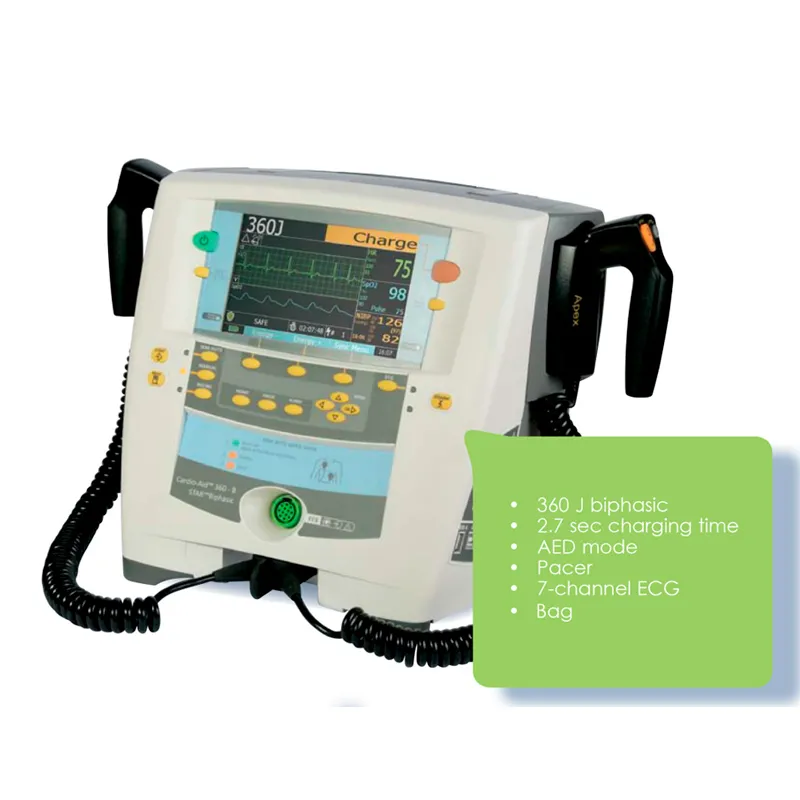

The HSP-360B Defibrillator is a professional-grade cardiac resuscitation system designed for hospital emergency rooms, intensive care units, and advanced life support applications. It delivers reliable biphasic defibrillation therapy up to 360 J, ensuring effective treatment across a wide range of cardiac emergencies.
Main Features
• High-Energy Biphasic Defibrillation: Delivers up to 360 J with impedance-compensated waveform for consistent shock performance
• Multiple Operating Modes: Manual, AED, synchronized, and asynchronous defibrillation in one device
• Integrated ECG Monitoring: Built-in ECG enables real-time cardiac rhythm observation and analysis
• Clear Color Display: Large TFT screen provides sharp waveform and parameter visibility
• Fast Charging Capability: Rapid energy charging supports immediate response during resuscitation
• Expandable Monitoring Options: Supports optional SpO₂, NIBP, temperature, IBP, EtCO₂, and pacing modules
• Clinical-Ready Design: Engineered for continuous use in demanding hospital and emergency environments
Specification
| Defibrillator | |
| Waveform | STAR™ biphasic |
| Energy | |
| External electrodes | 2–360 J in 15 steps |
| Internal electrodes | 1–50 J in 15 steps |
| Charging time | |
| To 200 J | typ. 2.7 sec |
| To max. energy | typ. 4.5 sec |
| Energy availability | Automatic discharge after 30 sec |
| Cardioversion | |
| Synchron shock delay | Less than 40 ms |
| ECG input | From defibrillator paddles; from disposable electrodes; from 3-, 5-, 10-lead ECG cables |
| Pulseoxymeter | Nellcor™ technology |
| Non-invasive Blood Pressure Measurement | SunTech® technology |
| Alarm system | Functional alarms; Technical alarms; Acoustic and visual signals |
| Event storage | Practically unlimited capacity; Archived events can be displayed on PC |
| Transcutaneous pacemaker | |
| Therapeutic waveform | 40 ms rectilinear |
| Pacing mode | Fixed or demand |
| Display | Bright colour TFT LCD with wide viewing angle; Displayed curves: max. 13 |
| Printer | Multichannel thermal printer; Modes: Manual, Automatic; Online/offline event printing |
| Power | Built-in rechargeable battery; Built-in mains supply; 90–240 VAC, 50/60 Hz |
| Operating time on battery | Monitoring: 4.5 h; Pacing: 3 h at 60 BPM/160 mA; >200 shocks at 200 J |
| Weight | Basic unit: approx. 5.9 kg; With battery & paddles: approx. 6.9 kg |
| Dimensions | 31 × 36 × 25 cm |
| Safety class | I, CF |
