Digital Colposcope​

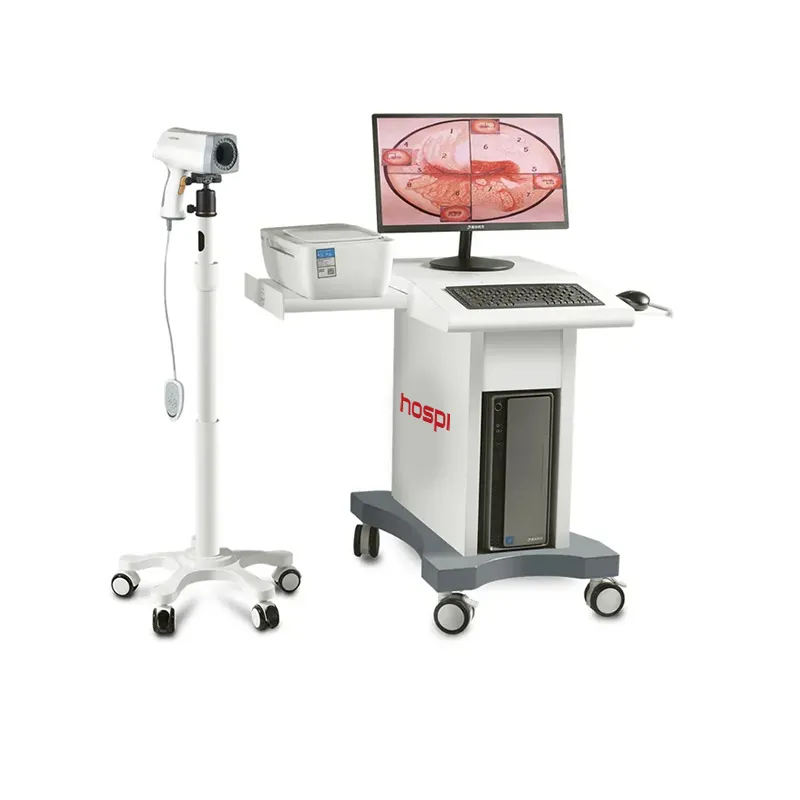

KN-2200 Digital Video Colposcope Equipment
KN-2200 Digital Video Colposcope Equipment
KN-2200 Digital Video Colposcope Equipment
KN-2200 Digital Video Colposcope Equipment
KN-2200 Digital Video Colposcope Equipment
KN-2200 Digital Video Colposcope Equipment
KN-2200 Digital Video Colposcope Equipment
KN-2200 Digital Video Colposcope Equipment

KN-2200 Digital Video Colposcope Equipment

Model: KN-2200

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support



Share:

The KN-2200 Digital Video Colposcope is a compact and reliable imaging system designed for gynecological examinations and cervical screening. It delivers clear, high-resolution images with precise magnification and uniform LED illumination, supporting accurate observation, image capture, and clinical documentation in daily practice.

Main Features

-Using 1/4 inch Sony CCD, 800,000 effective pixels, 18 times optical zoom, horizontal resolution up to 700 lines.

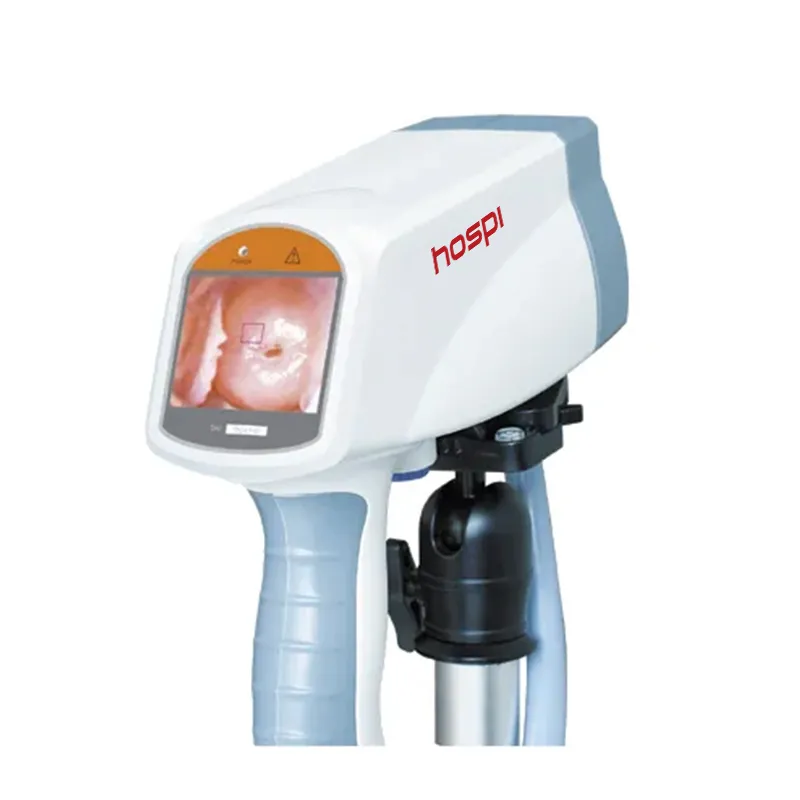

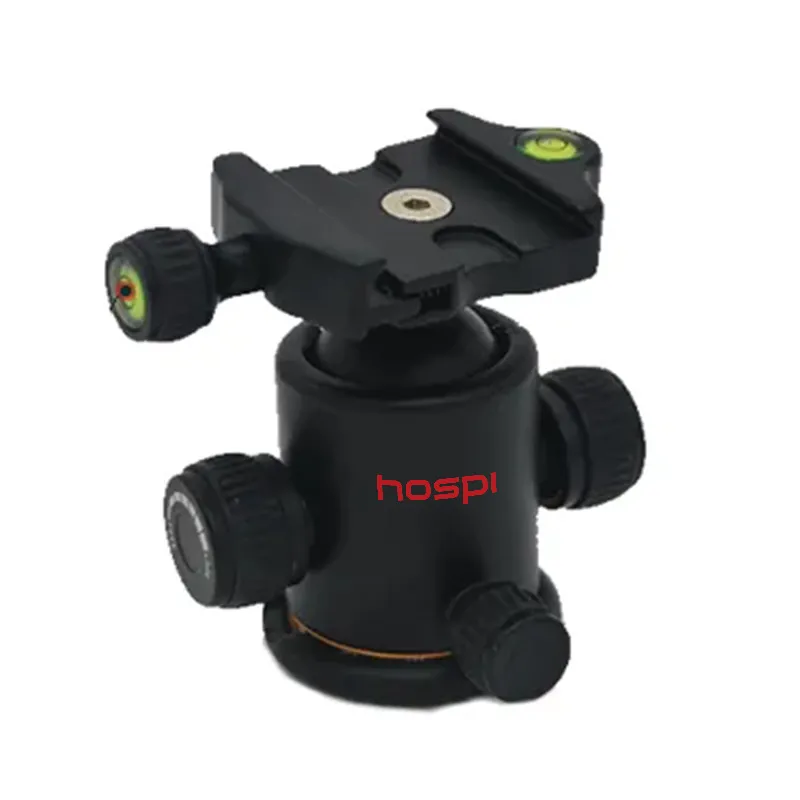

-Fully damped head, 360 degree all-round adjustment, automatic hovering at any angle, new upright bracket, adjustable lens height up and down.

-Four imaging modes, highlighting important lesion tissues and blood vessels, epithelial tissue, true restoration of tissue original color and detail level.

-With a foot switch and software two kinds of acquisition, video recording, images can achieve dynamic, static, full-screen acquisition, each inspection can be collected 100 color images.

-Adopt 24 groups energy-saving and eco-friendly white LED lightsource, long time uniform illunination, High color rendering index, no heat.

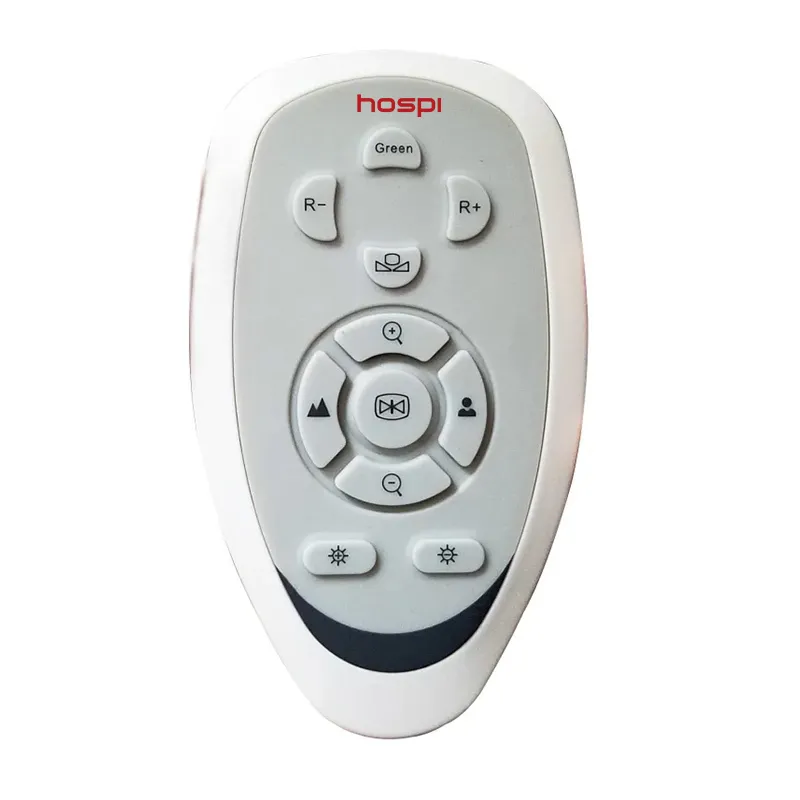

-Hand-held zoom button convenient for doctors to observe tissue pathological changes in real time.

Specification

Camera1/4 inch Sony CCD
Effective Pixels800,000 px
Level Resolution700TVL
ZoomSystem: 216x, optical: 18x, digital: 12x
Depth of Field4.1mm~73.8mm
Working Distance200~400mm
Field of ViewФ20~380mm
Color Saturation95%
