Digital Colposcope​

 Digital Video Colposcope​
 Digital Video Colposcope​

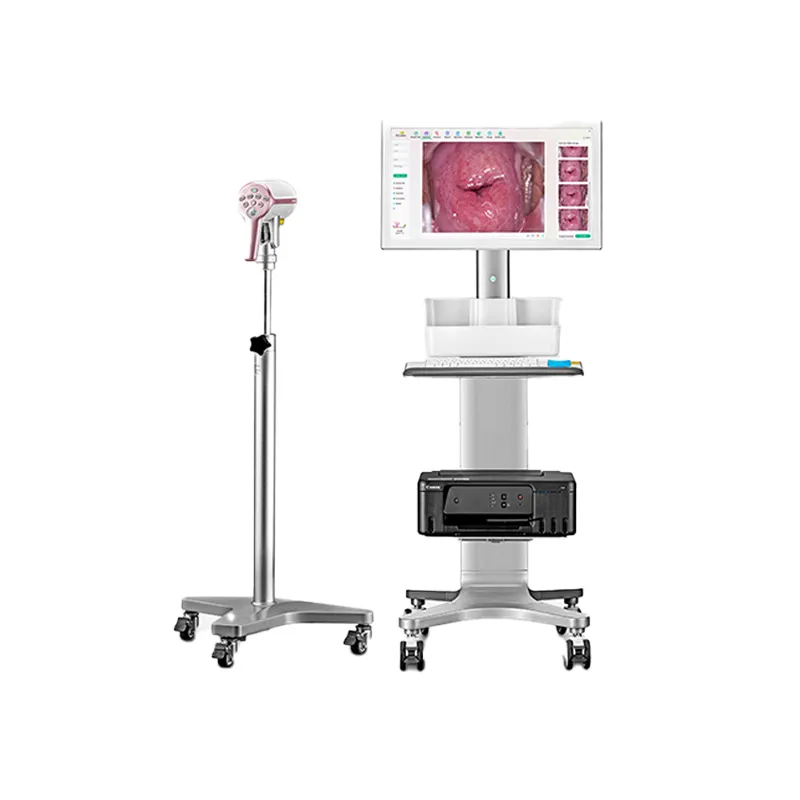

Edan C12 Digital Video Colposcope​

Model: Edan C12

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support


Share:

The Edan UHD Video Colposcope Series (C9 UHD & C12 UHD) is a state-of-the-art imaging solution for gynecological diagnostics. With ultra-high-definition 4K imaging, it delivers exceptional clarity of cervical tissue, blood vessels, and subtle lesions, enabling more accurate diagnosis and effective treatment planning.

Designed for both routine screenings and advanced examinations, the series combines superior optics, multispectral illumination, and ergonomic features. Intelligent imaging guidance and gesture control enhance efficiency and simplify operation, making it an ideal choice for modern clinics and hospitals.

Main Features

• Ultra-HD Imaging – 4K CMOS sensor provides sharp, detailed images for precise evaluation of cervical and vascular structures.

• Multispectral Illumination – White, blue, and green light enhance tissue contrast, helping differentiate lesions and abnormal vascular patterns.

• Automatic Distance Guidance – Built-in laser system ensures optimal focal distance for consistent high-quality images.

• Gesture Control – Hands-free operation for focus adjustment and image capture, reducing contamination risk.

• Intuitive Software – User-friendly interface with quick access to patient data, imaging modes, and analysis tools.

• Ergonomic Design – Lightweight and stable, suitable for single-operator use in clinical settings.

• Flexible Output – Compatible with UHD monitors and video recording systems for documentation and review.


Specification

ModelC12
Image Sensor4K Sony CMOS, 3840 × 2160 resolution
Pixel Count> 8 million pixels
IlluminationWhite + blue + green multispectral light
Imaging ModeUltra-HD 4K video output
Automatic GuidanceLaser distance guidance for optimal focal length
Gesture ControlIntelligent hands-free operation
Display OutputUHD monitor compatible
ErgonomicsStable, single-operator design
Clinical ApplicationsColposcopy, lesion assessment, vascular morphology visualization
