Model: HSP-S60
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-S60
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

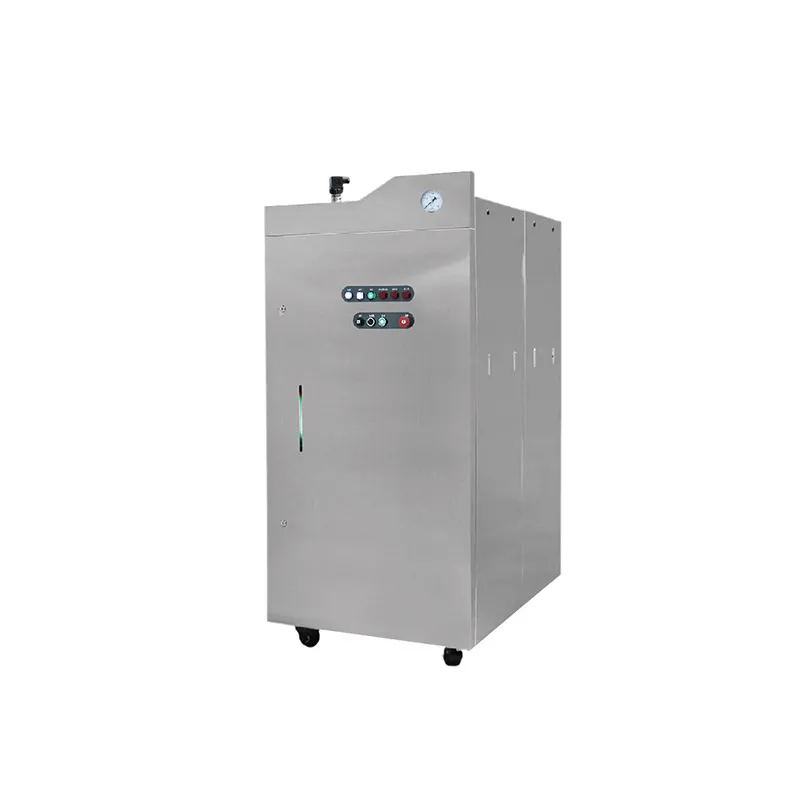

The HSP-S60 Clean Steam Generator is an electrically heated system designed to produce high-quality clean steam for medical and healthcare applications. By heating purified water in a fully enclosed stainless-steel chamber, it delivers stable, contamination-controlled steam to support sterilization and infection prevention processes.
Main Features
1.High-purity clean steam generation
-Produces clean steam from purified water, minimizing impurities and supporting reliable sterilization processes.
2.Rapid start-up and high efficiency
-Optimized electric heating allows fast pressure build-up and efficient energy utilization, reducing waiting time and operating costs.
3.Fully automatic operation
-One-button start with automatic water supply, pressure-based heating control, and intelligent system management.
4.Stainless steel construction
-All-stainless internal structure with automatic drainage helps maintain steam cleanliness and long-term durability.
5.Comprehensive safety protection
-Integrated safeguards including low water level protection, dry-burn prevention, overload protection, and emergency stop
6.Compact and easy to install
-Small footprint and low water volume simplify installation and reduce regulatory burden compared with traditional boilers.
Specification
| Model | Rated Power (kW) | Rated Evaporation Capacity (kg/h) | Rated Steam Pressure (MPa) | Design Thermal Efficiency | Material | ||
| HSP- S60 | 60 | 80 | 0.65 | 0.98 | 304 Stainless Steel | ||
| HSP- S90 | 90 | 120 | 0.65 | 0.98 | 304 Stainless Steel(316 Optional) | ||
| HSP- S120 | 120 | 160 | 0.65 | 0.98 | 304 Stainless Steel(316 Optional) | ||
| Water Source:Pure water, conductivity ≤ 15 μS/cm | |||||||
| Power Supply:380V, 50Hz | |||||||
| Overall Dimensions (L × W × H):1300 × 830 × 1900 mm | |||||||
