Model: HSP-BDA1
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-BDA1
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support

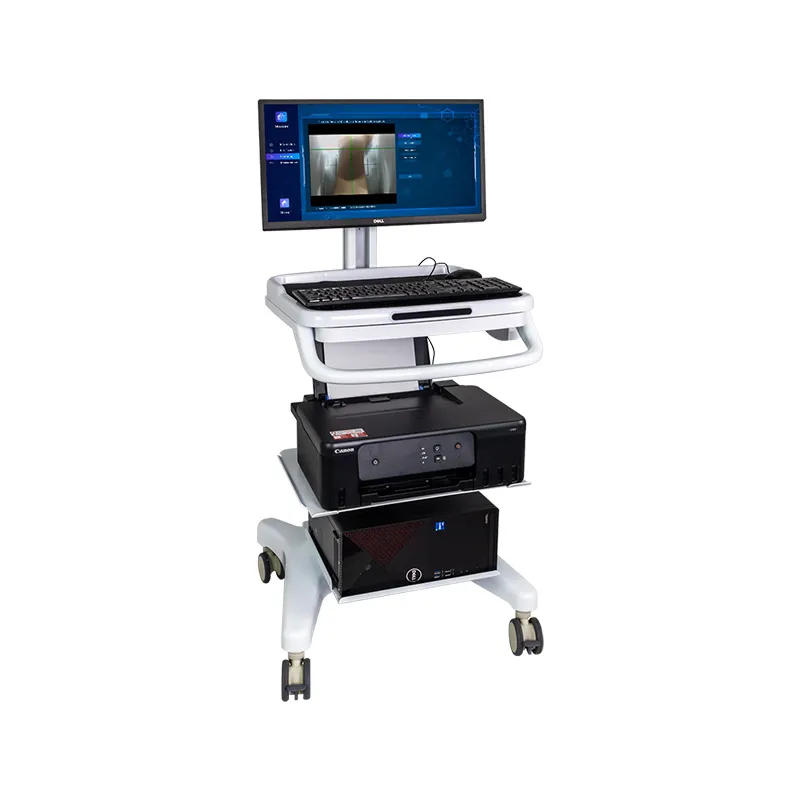

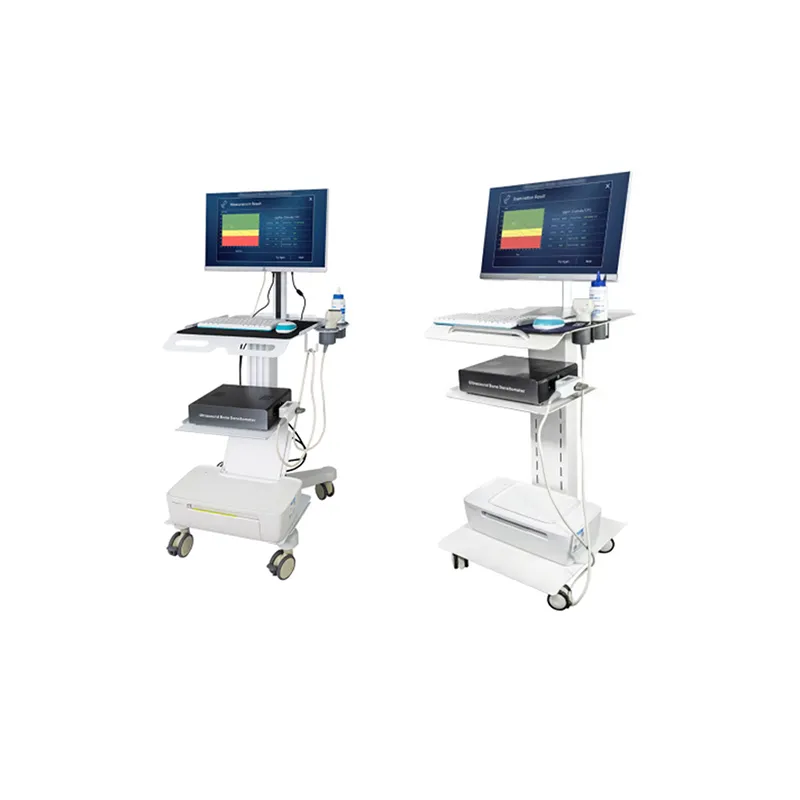

The HSP-BDA1 is a trolley-style ultrasound bone densitometer designed for accurate, safe, and efficient assessment of bone mineral density. Using advanced ultrasound technology, it evaluates bone strength at peripheral sites such as the radius and tibia, providing reliable T-score and Z-score results.
Main Features
• Non-radiation ultrasound measurement — safe for all age groups and repeat testing
• Stable trolley/desktop design — suitable for hospital and clinic use
• Fast and precise scanning — delivers reliable bone density results in seconds
• Measures radius and tibia — commonly used peripheral sites for bone assessment
• Multi-population reference database — includes European, American, Asian, and WHO standards
• Clear reporting — outputs T-score, Z-score, bone quality index, age/sex percentiles
• User-friendly software — supports clinic workflow and patient management
Specification
| Model | HSP-BDA1 |
| Measurement Technology | Ultrasound densitometry |
| Measurement Sites | Radius, Tibia |
| Output | T-score, Z-score, Age %, Adult %, Bone Quality Index (BQI), Relative Fracture Risk (RFR), SOS, BMI |
| Probe Frequency | 1.20 MHz |
| Accuracy | ≤ 0.3% |
| Repeatability | ≤ 0.3% |
| Scan Time | Adults: <15 s, Children: <3 s |
| Display & Software | Desktop interface with intelligent analysis system |
| Connectivity | Network & remote support |
| Power | AC 110–240V, ≤200VA |
