Model: HSP-BDA3
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-BDA3
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

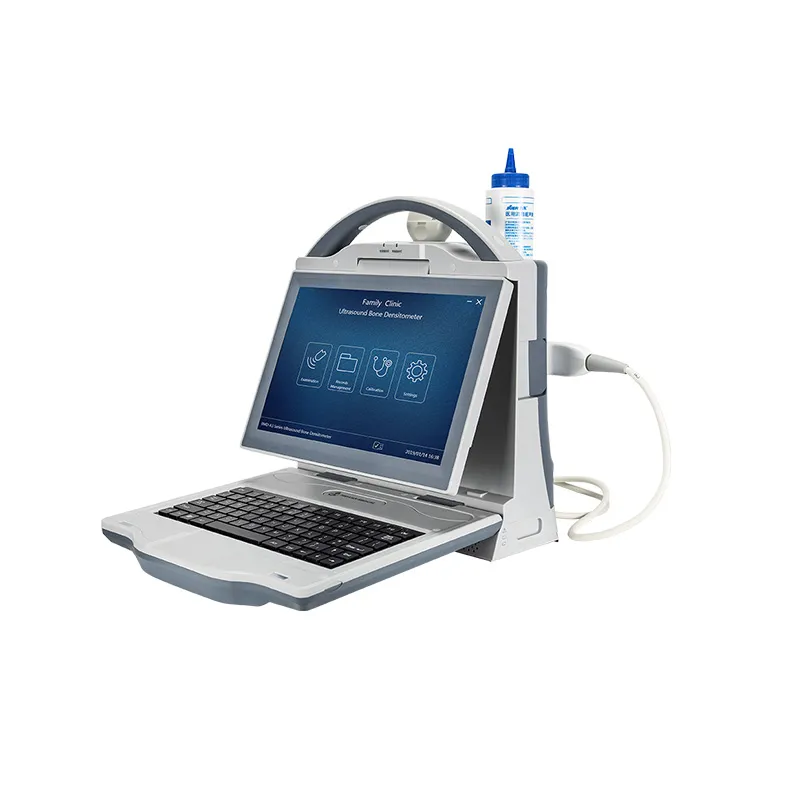

The HSP-BDA3 is a compact and portable ultrasound bone densitometer designed for fast and safe assessment of bone health. Using non-radiation ultrasound technology, it provides reliable bone mineral density analysis without exposing patients to X-rays, making it suitable for frequent screening and long-term monitoring.
The system measures bone density at peripheral sites such as the radius and tibia, delivering accurate T-score and Z-score results to support osteoporosis risk evaluation. Its lightweight design, intuitive interface, and quick operation make it ideal for hospitals, clinics, health screening centers, and mobile medical services.
Main Features
• Ultrasound-based bone density measurement with no radiation exposure
• Portable and lightweight design for flexible clinical use
• Fast measurement with high accuracy and repeatability
• Measures peripheral sites including radius and tibia

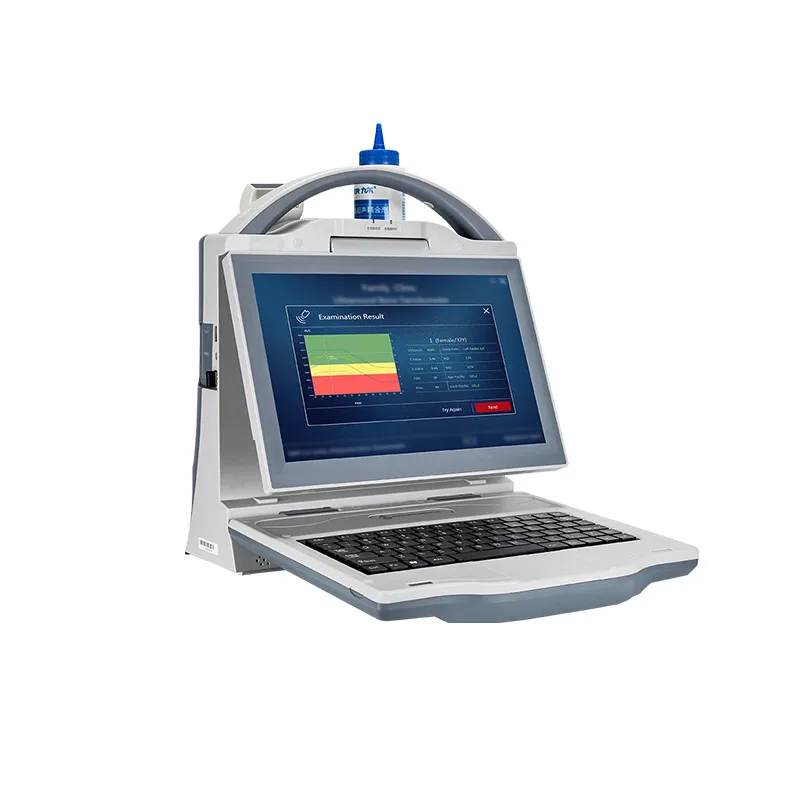

• Clear display with automatic data analysis and reporting
• Simple operation suitable for routine screening programs
• Supports large clinical databases for reliable comparison
Specification
| Model | HSP-BDA3 |
| Measurement Technology | Ultrasound bone densitometry |
| Measurement Sites | Radius, Tibia |
| Radiation | None |
| Probe Frequency | 1.20 MHz |
| Output Results | T-score, Z-score, bone health assessment |
| Display | Integrated screen with analysis software |
| Operation | One-button operation, portable setup |
| Software | Intelligent analysis system with reference database |
| Net Weight | Approx. 6 kg |
| Gross Weight | Approx. 13 kg |
| Optional | External color printer |
