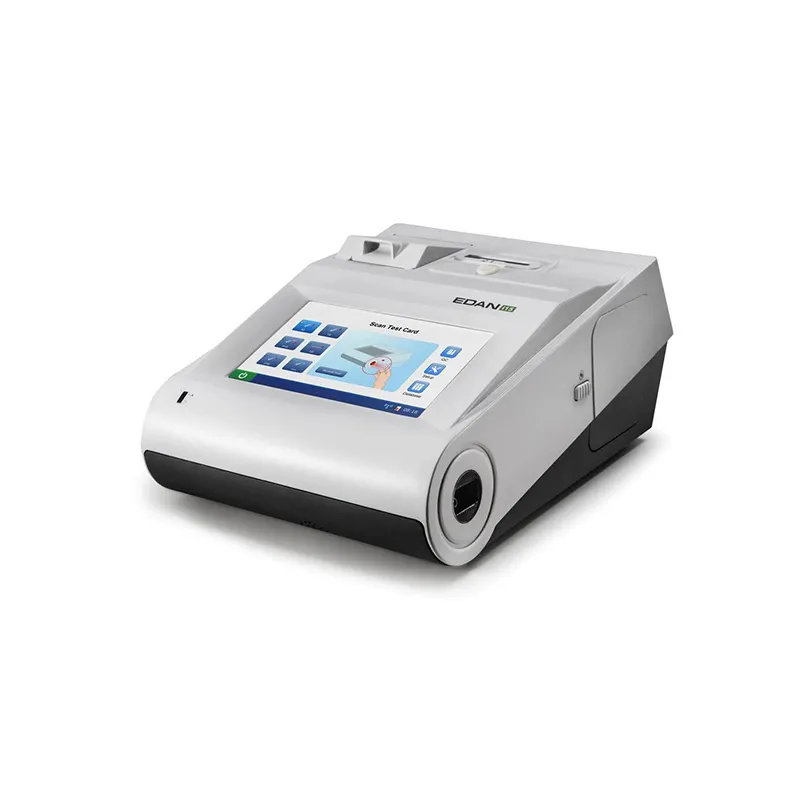

Edan i15 Blood Gas and Chemistry Analysis System

Model: Edan i15

Product origin: CHINA

Warranty: 1 Year

After-sales Service: Online Technical Support

Inquire Now Add to Basket

Description
Download

The Edan i15 Blood Gas and Chemistry Analysis System is a portable point-of-care analyzer designed to deliver fast, accurate, and comprehensive results wherever timely clinical decisions are required. Its compact form factor and built-in rechargeable battery make it ideal for emergency departments, intensive care units, operating rooms, and bedside diagnostics. Featuring a single-use multi-parameter cartridge and automated sample handling, the i15 simplifies blood gas and chemistry testing with minimal operator involvement, reduces routine maintenance, and minimizes contamination risk. With intuitive touchscreen operation, robust data management, and seamless connectivity to hospital systems, the i15 supports efficient clinical workflows and helps healthcare professionals make informed decisions faster.

Main Features

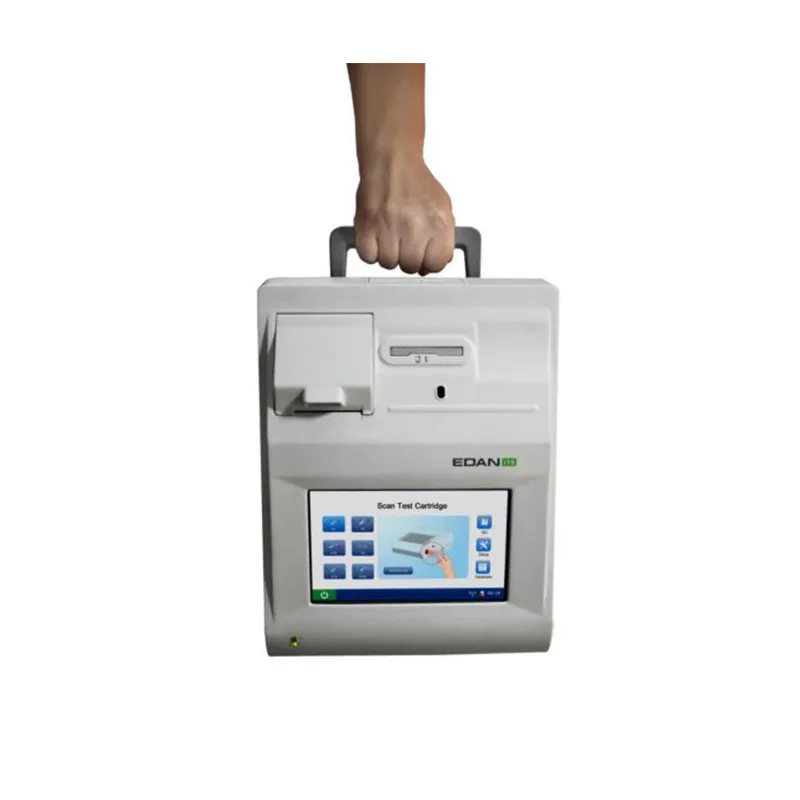

1.Portable & Compact

-Lightweight benchtop design with built-in battery for up to ~50 continuous tests per charge.

2.Rapid Results

-Provides complete blood gas and chemistry data in under 60 seconds after sample aspiration.

3.Multi-Parameter Cartridge

-Single disposable cartridge measures blood gases, electrolytes, metabolites, and hematocrit from one sample, reducing contamination risk.

4.Automatic Workflow

-Built-in auto-sampling, calibration, and quality control streamline daily operation.

5.User-Friendly Interface

-7-inch color touchscreen with intuitive menus and multimedia support lowers training time.

6.Strong Data Management

-Stores up to 10,000 patient results and supports USB, RS232, LAN, and wireless connectivity for LIS/HIS integration.

7.Room-Temp Consumables

-Cartridges and reagents require no refrigeration, simplifying logistics.

Specification

Model	i15
Analyzer Type	Portable blood gas & chemistry analyzer (POCT)
Sample Type	Arterial, venous, or capillary whole blood
Sample Volume	~140 μL whole blood required
Analysis Time	Approximately 60 seconds after aspiration
Display	7-inch color LCD touchscreen (800 × 480)
Battery	5000 mAh rechargeable lithium-ion battery (up to ~50 tests)
Power Supply	AC 100–240 V, 50/60 Hz
Dimensions (W × D × H)	Approx. 315 × 238 × 153 mm
Weight (with battery)	Approx. 3.65 kg
Data Storage	Up to 10,000 patient results
Connectivity	4× USB 2.0, RS232, LAN, WLAN
Interfaces	Barcode scanner support
Operating Conditions	10–31 °C; 25–80 % RH; 70–106.6 kPa
Measured Parameters	pH, pO₂, pCO₂, Na⁺, K⁺, Cl⁻, Ca²⁺, Glucose, Lactate, Hematocrit
Maintenance	Zero routine maintenance with disposable cartridges

Edan i15 Blood gas analyzer
