Model: HSP-XC630L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-XC630L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

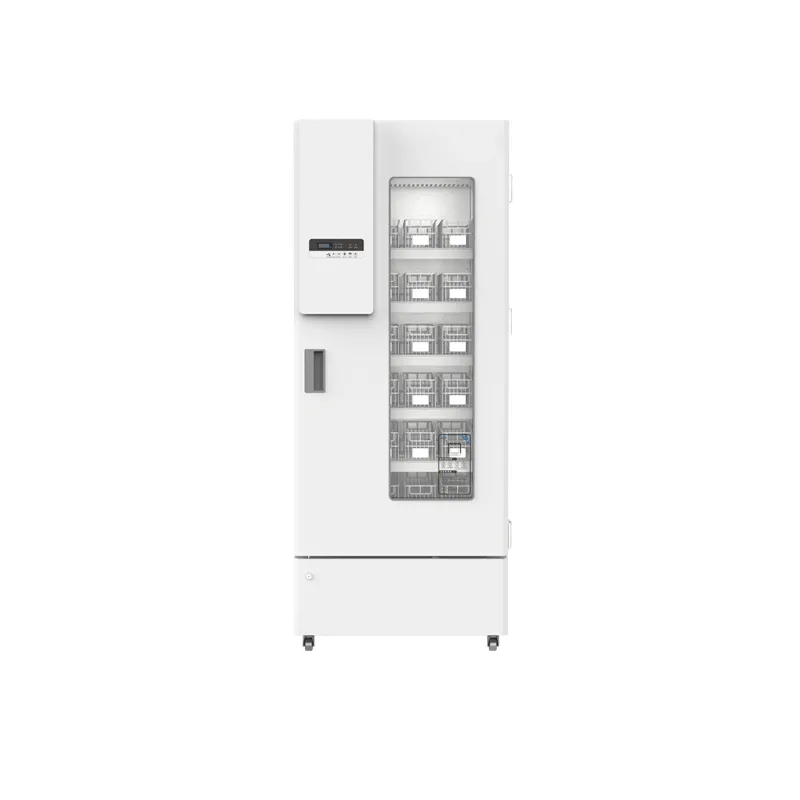

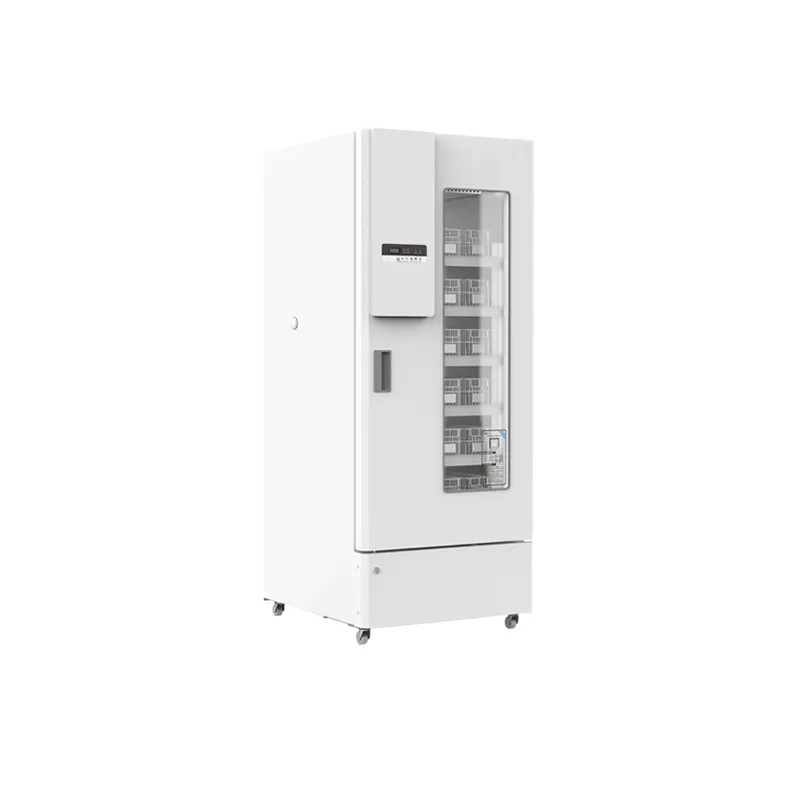

The HSP-XC630L Blood Bank Refrigerator is a mid-to-large capacity medical refrigeration unit designed for reliable storage of blood and blood components at 2℃–6℃. With intelligent temperature control, uniform air-cooling, and advanced safety systems, it delivers stable performance required for clinical blood preservation. It is widely used in blood banks, hospitals, clinical labs, and research institutes.
Main Features
-Precise 2℃–6℃ temperature control with intelligent microprocessor system and return-air design for uniform cooling.
-HSP-XC630L storage capacity suited for medium to large blood storage demands.
-Digital temperature display with 0.1℃ resolution for accurate monitoring.
-Double-layer glass door with automatic defrost for stable internal conditions.
-Audible & visual alarms for high/low temperature, door ajar, sensor errors, and power failure.
-Lockable door for secure storage and USB data logging for temperature recordkeeping.
-Advanced air-cooled refrigeration with high-efficiency compressor and eco-friendly R290 refrigerant.
Specification
| Model | HSP-XC630L |
| Cabinet type | Upright |
| Capacity(L) | 630 |
| Internal size(W*D*H)mm | 685*690*1373 |
| External size(W*D*H)mm | 818*912*1978 |
| Package size(W*D*H)mm | 852*962*2131 |
| NW/GW(Kgs) | 185/275 |
| Performance | |
| Ambient temperature | 16-32℃ |
| Climate class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 1pc |
| Cooling method | Air cooling |
| Defrost mode | Automatic |
| Refrigerant | R290 |
| Insulation thickness(mm) | R/L:55,B:50 |
| Construction | |
| External material | PCM |
| Inner material | Stainless steel |
| Shelves | 6(coated steel wired shelf) |
| Door lock with key | Yes |
| Access port | 1pc. Ø 25 mm |
| Casters | 4 ( 2 casters with brake) |
| Data logging/Interval/Memory capacity | USB/ Record every 10 minutes/ 1000,000data |
| Backup battery | Yes |
| Alarm | |
| Temperature | High/Low temperature, High ambient temperature |
| Electrical | Power failure , Low battery |
| System | Sennor failure,Door ajar,Condenser overheating,Built-in USB datalogger failure |
| Accessories | |
| Standard | Remote alarm contact,RS485, USB interface |
| Options | Chart recorder |
