Model: HSP-XC168L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-XC168L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

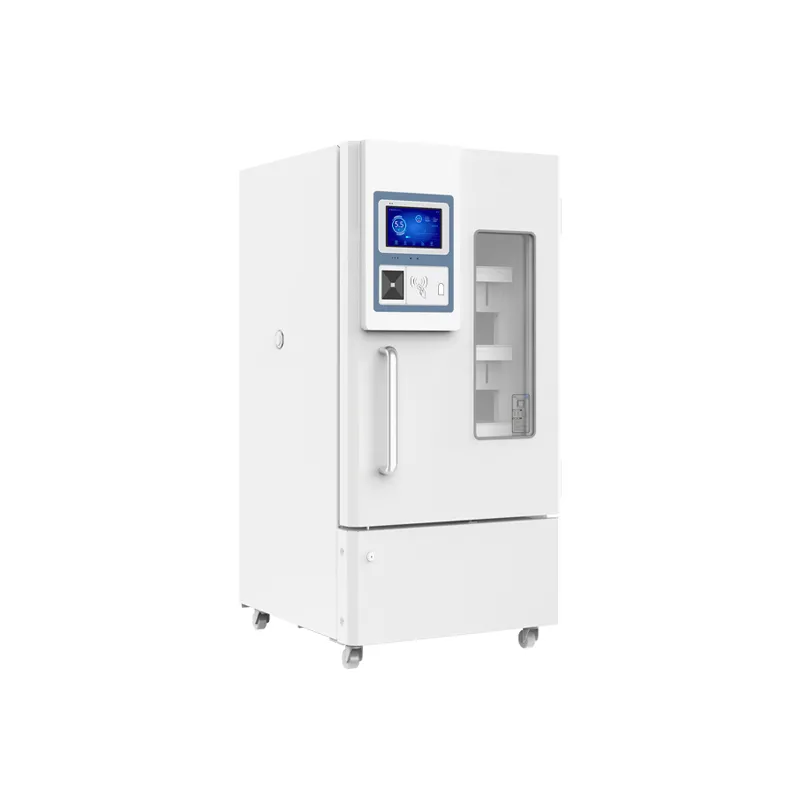

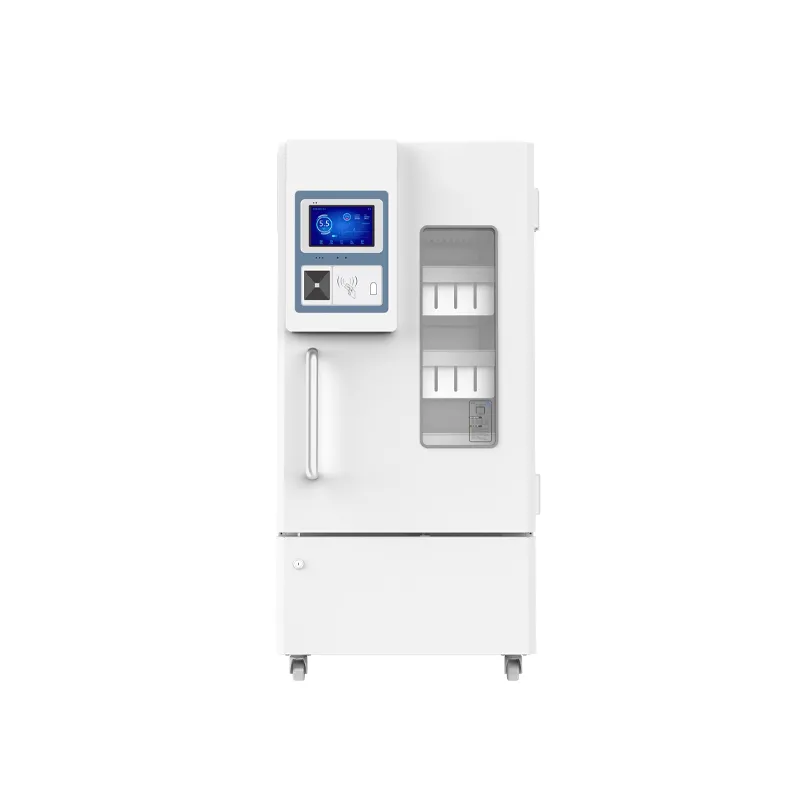

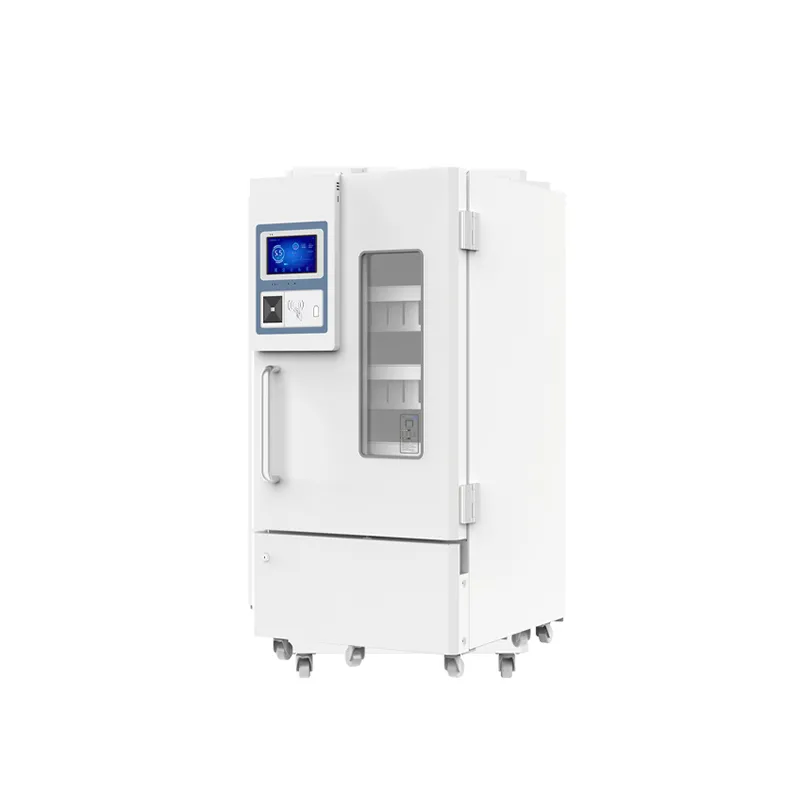

The HSP-XC168L Blood Bank Refrigerator is a compact medical refrigerator designed for safe and reliable storage of blood and blood components at 2℃–6℃. Equipped with precise microprocessor temperature control and uniform air-cooling technology, it ensures stable internal conditions required for blood preservation.
With a 168-liter capacity, this blood bank refrigerator is ideal for blood banks, hospitals, clinical laboratories, and research facilities where space efficiency and temperature accuracy are essential.
Main Features
-Stable 2℃–6℃ temperature range for blood storage
-Digital microprocessor controller with 0.1℃ display resolution
-Forced air circulation for uniform temperature distribution
-Automatic defrost system for reliable operation
-Audible and visual alarms for high/low temperature, power failure, door open, and sensor error
-Heated glass door for clear visibility and reduced condensation
-Lockable door to prevent unauthorized access
-USB temperature data logging for monitoring and compliance
-Energy-efficient and eco-friendly R290 refrigerant
Specification
| Model | HSP-XC168L |
| Cabinet type | Upright |
| Capacity(L) | 168 |
| Internal size(W*D*H)mm | 525*550*744 |
| External size(W*D*H)mm | 654*774*1330 |
| Pacakge size(W*D*H)mm | 700*837*1492 |
| NW/GW(Kgs) | 116/144 |
| Performance | |
| Ambient temperature | 16-32℃ |
| Climate class | N |
| Controller | Microprocessor |
| Display | touch screen |
| Refrigeration | |
| Compressor | 1pc |
| Cooling method | Air cooling |
| Defrost mode | Automatic |
| Refrigerant | R290 |
| Insulation thickness(mm) | R/L:55, B:50 |
| Construction | |
| External material | PCM |
| Inner material | Stainless steel |
| Door lock with key | Yes |
| Access port | 1pc.Ø 25 mm |
| Casters | 4 ( 2 casters with brakes) |
| Data logging/Interval/Memory capacity | USB/Record every 5 minutes / 10 years |
| Backup battery | Yes |
| Alarm | |
| Temperature | High/Low temperature,High ambient temperature |
| Electrical | Power failure , Low battery |
| System | Sensor failure,Door ajar,Condenser overheating,Communication error |
| Accessories | |
| Options | Chart recorder |
| Standard | USB interface ,RS485,Remote alarm contact |
