Introduction
X-ray machines are one of the most important tools in modern medicine. They allow healthcare professionals to see inside the human body without surgery. Whether diagnosing bone fractures, lung infections, or abdominal problems, X-ray imaging provides fast and reliable results.
But how does an X-ray machine work? This article explains the science behind X-ray imaging—simple enough for beginners, yet professional enough for medical or technical readers.
1. What Is an X-ray?
X-rays are a type of electromagnetic radiation, similar to visible light but with much higher energy. Because of their short wavelength and high frequency, X-rays can pass through soft tissues like skin and muscles, but are absorbed by denser materials like bones.
This difference in absorption produces the contrast seen on medical X-ray images.
2. The Basic Principle: Differential Absorption
An X-ray machine works by sending X-ray beams through the body. When these beams pass through tissues, different structures absorb them at different levels:
• Bones: absorb most X-rays → appear white
• Soft tissues: absorb some X-rays → appear gray
• Air spaces (lungs): absorb the least → appear black
The X-ray detector captures these variations and converts them into the familiar 2D image used for diagnosis.

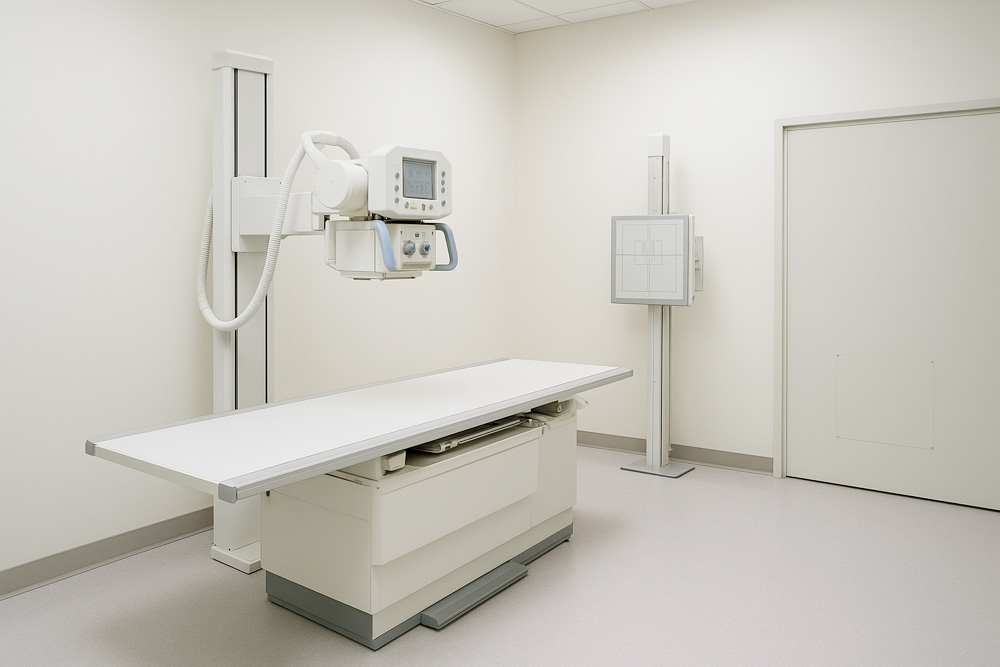

3. Key Components of an X-Ray Machine
X-ray machines are made up of several essential parts:
• X-ray Tube
The heart of the machine. It generates X-rays through a process called thermionic emission:
• Electrons are heated and released from a cathode.
• They accelerate toward a metal anode (usually tungsten).
• When they collide with the metal, they release energy in the form of X-ray photons.
• Collimator
Controls the size and shape of the X-ray beam, reducing scatter radiation and improving image clarity.
• High-Voltage Generator
Provides the energy needed for electrons to accelerate at high speed.
• Image Receptor / Detector
Captures the X-rays after they pass through the patient. Common types include:
• Digital detectors (DR)
• Computed radiography plates (CR)
• Traditional film (rare today)
• Control Console
Allows radiographers to adjust settings such as exposure time, intensity (mA), and beam energy (kVp).
4. Step-by-Step: How an X-Ray Machine Works
Here is a simple, step-by-step explanation of the imaging process:
• Patient positioning
The patient is placed between the X-ray tube and the detector.
• Exposure settings selected
The operator chooses the appropriate kVp and mA based on the body part.
• X-rays produced
Inside the tube, electrons hit the tungsten target and generate X-ray photons.
• X-rays pass through the body
Different tissues absorb the energy differently.
• The detector captures the image
The resulting varying intensities form a contrast image.
• Image is processed digitally
Software enhances clarity and allows the doctor to examine it immediately.
5. Common Uses of X-Ray Imaging
X-rays are widely used in:
Bone Assessment
• Fractures
• Bone deformities
• Joint dislocations
Chest Imaging
• Pneumonia
• Tuberculosis
• Heart enlargement
Abdominal Examination
• Bowel obstructions
• Kidney stones
Dental Imaging
• Tooth decay
• Jaw alignment
6. Safety: How Safe Are X-Rays?
Although X-rays use radiation, the dose in medical imaging is carefully controlled.
Radiation Safety Measures Include:
• Lead aprons or shields
• Using the lowest effective dose (ALARA principle)
• Limiting unnecessary exposures
• Modern digital detectors that require less radiation
In most cases, the benefits of accurate diagnosis outweigh the minimal risk from radiation exposure.
7. Advantages of X-Ray Machines
• Fast imaging
• Non-invasive
• Cost-effective
• Widely available
• Useful for many conditions
Conclusion
X-ray machines are an essential part of medical diagnostics because they allow healthcare professionals to look inside the body quickly and safely. By using electromagnetic radiation and advanced detectors, X-ray technology provides a clear picture of bones, organs, and tissues. Understanding how an X-ray machine works helps patients feel more informed and confident when undergoing imaging.
References
1. Bushberg JT, Seibert JA, Leidenholt EM, Boone JM. The Essential Physics of Medical Imaging. 3rd ed.
2. World Health Organization. Radiation Risk in Medical Imaging.
3. RadiologyInfo.org – RSNA.
4. European Society of Radiology – Medical Imaging Safety Guidelines.
