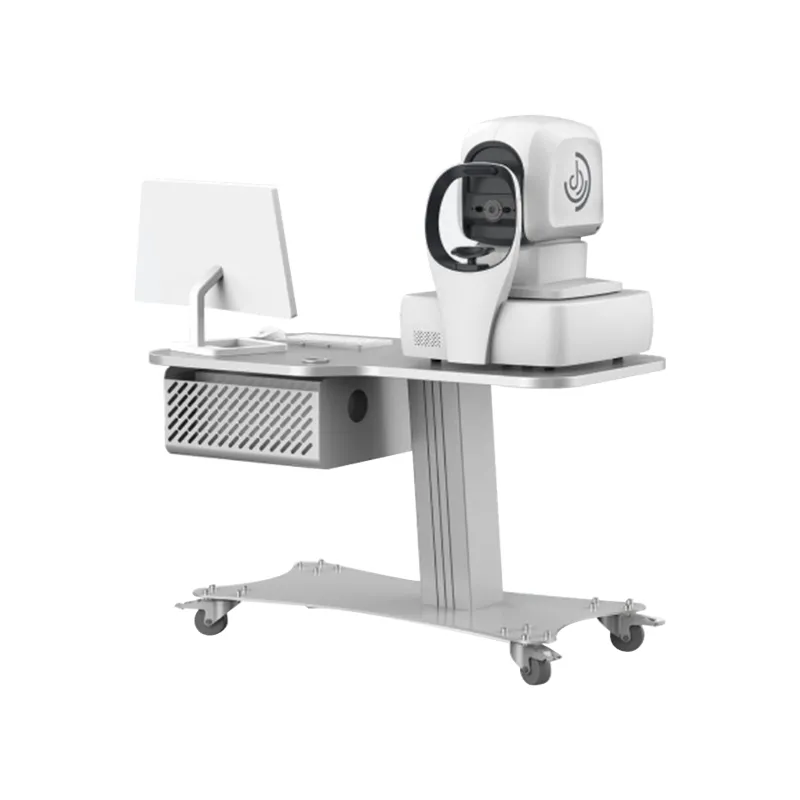

Model: HSP-OB2000
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-OB2000
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
1-click measurement, 12 acurate optometric parameters
-Axial Length(AL)
-Central Corneal Thickness (CCT)
-K1、K2
-Anterior chamber Depth (ACD)
-Axis (AX)
-Lens Thickness (LT)
-AL/CR
-Vitreous Length (VL)
-Pupil Diameter(PD)
-Retinal Thickness (RT)
-WTW
-Choroidal Thickness(CT)
2.One click fully automatic measurement, simple and efficient
3.Automatic pupil localization
-Intelligent three-dimensional platform, automatic adjustment of jaw rest, working distance, automatic switching between left and right eyes.
4.Rapid measurement
-Autofocus, auto-acquisition, rapid acquisition of multiple optometric parameters in both eyes within 60S.
5.Voice Guidance
-Intelligent voice guidance, smooth operation, good user experience.
-Can be applied to myopia prevention and control scenarios to achieve visual eye axis measurement, and also fundus health management, which can real-time monitor choroidal thickness changes and macular diseases.
Specification
| PARAMETER | SPECIFICATION |
| Axial Length | |
| Measuring range | 11.50~39.00mm |
| Display accuracy | 0.001mm |
| Difference tolerance | 士0.1mm |
| Repeatability | 士0.033mm |
| Central Corneal Thickness | |
| Measuring range | 0.22~1.50mm |
| Display accuracy | 0.001mm |
| Difference tolerance | 士0.05mm |
| Radius of corneal curvature | |
| Measuring range | 4.00~12.00mm |
| Display accuracy | 0.001mm |
| Difference tolerance | 士0.05mm |
| Astigmatic axial position | |
| Measuring range | 0°~180° |
| Display accuracy | 1° |
| Difference tolerance | Meridian radius difference 0.3mm Measurement Tolerance 士4° |
| Meridian radius difference >0.3mm, Measurement tolerance +2° | |
| White to white distance | |
| Measuring range | 6.00~16.00mm |
| Display accuracy | 0.001mm |
| Difference tolerance | +0.1mm |
| Pupil diameter | |
| Measuring range | 0.50~13.50mm |
| Display accuracy | 0.001mm |
| Difference tolerance | 士0.1mm |
| Anterior chamber depth | |
| Measuring range | 0.52~6.00mm |
| Display accuracy | 0.001mm |
| Difference tolerance | 士0.05mm |
| Lens thickness | |
| Measuring range | 3.00~6.00mm |
| Display accuracy | 0.001mm |
| Difference tolerance | 士0.05mm |
| Other parameters | |
| Scanning frequency | ≥18.5kHz |
| Scanning range of the posterior segment | ≥5mm |
| Imaging depth | ≥2.2mm |
| Vertical resolution | ≤5um |
| Laser wavelength | 840nm士20nm |
| Average laser power at eye level | ≤730uW |
| Display | 23.8-inch color LCD screen |
| Processor | Main frequency 2.70GHz |
