Model: HSP-3S1
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-3S1
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

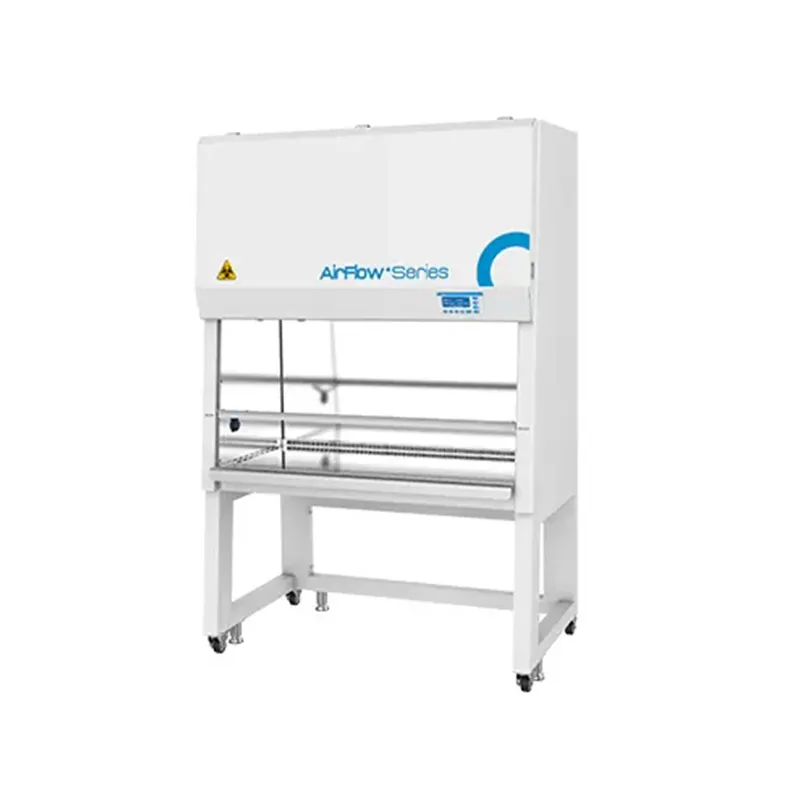

The HSP-3S1 Biological Safety Cabinet is designed to provide reliable protection for laboratory personnel, samples, and the surrounding environment during biological operations. Featuring HEPA-filtered vertical laminar airflow, it effectively prevents cross-contamination while maintaining a clean and stable working area. With a robust structure and ergonomic design, the cabinet is well suited for routine use in microbiology, clinical, pharmaceutical, and research laboratories.
Main Features
1.Microprocessor Controller
-Large LCD display, the right place and angled down for easy reach & viewing.
-Real-time monitoring, display all safety information on one screen.
-Real-time monitoring of hepa filter status. Display sound and light alarm about failure, pre-failure, damaged.
2.EC Fan
-High efficiency and energy saving with 30%-60% energy savings compared to AC motor.
-The automatic resistance compensation function can provide safe air velocity even when the filter resistance increases by 300%.
3.HEPA Filter
-Filtration efficency>99.99%@0.3μm.
-Cleanliness ISO class 5.
-UPLA filter is optional.
4.Internal Working Area
-Three sides of the inner wall shape a large arc design, easy to clean.
-A special negative pressure design prevents contaminants from escaping up the side wall into the operator's environment.
-Paper collectors prevent the high maintenance costs associated with paper waste inhalation.
-Easy to remove working surface and support, easy to clean drain tray.
5.Ergonomic Design
-5°backward-slanted safety grade glass provides more comfortable viewing.
-Raised arm rest help prevent grille blockig.
-Sash is designed for easy operation with single hand.
-Backlight lighting design reduces operator visual fatigue.
Specification
| Model | HSP-3S1 | HSP-4S1 | HSP-5S1 | HSP-6S1 |
| Internal Dimensions(W×D×H) mm | 920×580×655 | 1220×580×655 | 1520×580×655 | 1820×580×655 |
| External Dimensions(W×D×H) mm | 1040×810×2100 | 1340×810×2100 | 1640×810×2100 | 1940×810×2100 |
| Downflow Velocity | 0.33m/s | |||
| Inflow Velocity | 0.53m/s | |||
| Working Access Opening Height | 200mm | |||
| Opening MAX. | 500mm | |||
| HEPA Filter Typical Efficiency | 99.995% @ 0.3μm | |||
| Noise | <65dB | |||
| Fluorescent Lamp Intensity | >900Lux | |||
| UV Lamp | 20W | 30W | 40W | 40W |
| Voltage | 220V/50Hz | |||
| Power Consumption | 1300VA | 1400VA | 1500VA | 1600VA |
| Net Weight | 225kg | 265kg | 305kg | 345kg |
| Shipping Weight | 295kg | 335kg | 395kg | 445kg |
| Shipping Dimensions(W×D×H) mm | 1210×935×1870 | 1510×935×1810 | 1810×935×1810 | 2110×935×1810 |
