Chamber Volume: 20L/24L
Class Grade: Class B
Certificate: CE / ISO
After-sales Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts
Chamber Volume: 20L/24L
Class Grade: Class B
Certificate: CE / ISO
After-sales Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

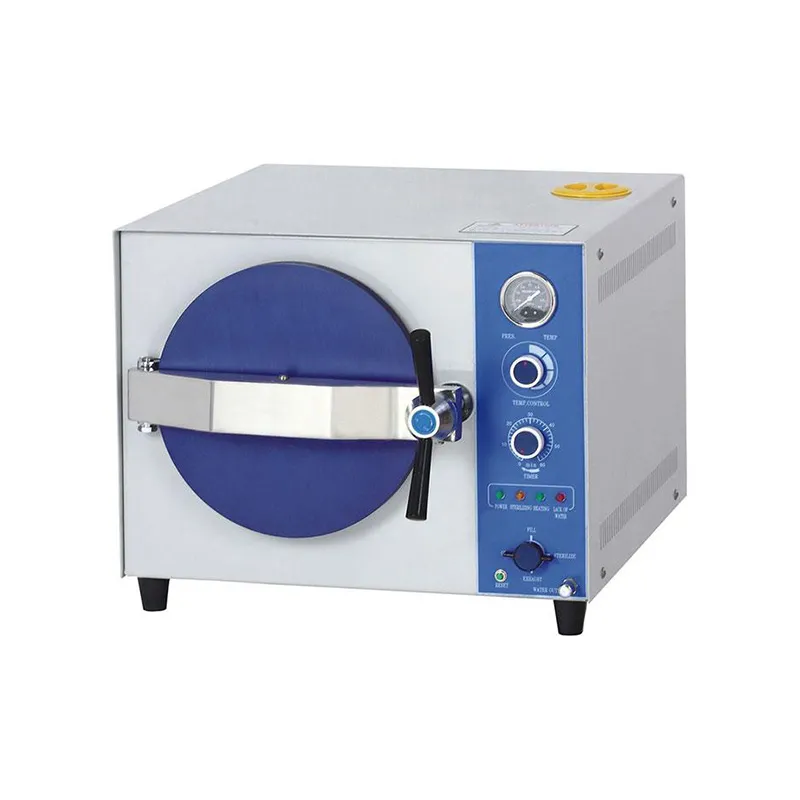

The Tabletop Steam Sterilizer provides fast, reliable, and safe sterilization for medical instruments, dressings, glassware, and laboratory materials. Compact and durable, it is ideal for hospitals, clinics, laboratories, and industrial facilities that require efficient sterilization performance and simple operation.
Main Features
- Fast sterilization cycle: 4–6 minutes per operation
- Simple digital control with temperature and time presets
- Built-in water shortage and overheat protection
- Automatic pressure and temperature safety system
- Internal steam–water circulation, no external steam discharge
- Quiet, efficient operation with low energy consumption
- Stainless steel chamber and trays for durability
- Audible alarm at the end of each cycle
Specification
| MODEL | HSP-TMXB20J | HSP-TMXB24J |
| Technical Data | ||
| Stenilizing chamber volume | 20Lφ250×420mm | 24Lφ250×50mm |
| Working pressure | 0.22Mpa | |
| Working temperature | 134℃ | |
| Temperature adjust range | 105-134℃ | |
| Timer range | 0-60min | |
| Heat average | ≤±1℃ | |
| Power | 1.5KW/AC220V.50Hz(AC110V.60Hz) | |
| Sterilizing plate | 340×200×30(3piece) | 400×200×30(3piece) |
| Dimension | 480×480×384 | 580×480×384 |
| Exerior package dimension | 700×580×500 | 800×580×500 |
| G.W/N.W | 44/40Kg | 50/45Kg |
