Chamber Volume: 35L/50L
Class Grade: Class B
Certificate: CE / ISO
After-sales Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts
Chamber Volume: 35L/50L
Class Grade: Class B
Certificate: CE / ISO
After-sales Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

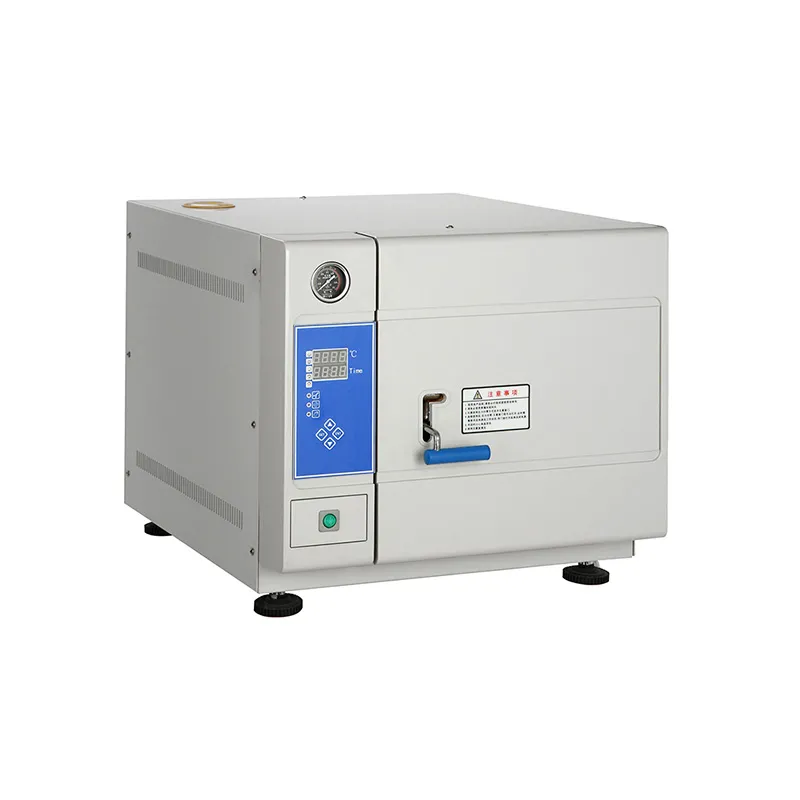

The Benchtop Steam Sterilizer uses saturated steam to deliver rapid, reliable sterilization of medical instruments, surgical dressings, glassware, solutions, and substrates. Suitable for hospitals, public health centres, clinics, and research institutes—including applications in industrial or mining settings for high‑quality water and clean equipment processing.
Main Features
· Fully automated sterilization process including water filling, heating, sterilising, drying and steam exhaust for hands‑free operation.
· Ultra‑fast cycle time (approximately 4‑6 minutes) for efficient throughput.
· Digital control panel with touch‑key interface for intuitive use.
· Low‑water protection ensures safe operation when reservoir is insufficient.
· Internal steam‑water recirculation system eliminates external steam discharge and helps maintain a clean, dry surrounding environment.
· Automatic air‑cooling and door‑lock safety system for added protection.
· Durable stainless‑steel chamber with four sterilising trays for enhanced capacity and longevity.
· Audible beep signals at end‑of‑cycle to streamline workflow and ensure clarity.
Specification
| Model | HSP-TMXD35D | HSP-TMXD50D |
| Chamber Volume | 35 L (φ 300 × 500 mm) | 50 L (φ 340 × 550 mm) |
| Working Pressure | 0.22 MPa | 0.22 MPa |
| Working Temperature | 134 °C | 134 °C |
| Temperature Range | 105‑134 °C | 105‑134 °C |
| Timer Range | 0‑99 min | 0‑99 min |
| Heating Accuracy | ≤ ±1 °C | ≤ ±1 °C |
| Power | 2.7 kW / AC 220 V 50 Hz | 2.7 kW / AC 220 V 50 Hz |
| Sterilising Plate | 400×200×30 (4 pcs) | 500×250×30 (4 pcs) |
| External Dimensions | 730 × 550 × 510 mm | 770 × 600 × 540 mm |
| Gross / Net Weight | 90 / 73 kg | 105 / 86 kg |
