Chamber Volume: 20L/24L
Class Grade: Class B
Certificate: CE / ISO
After-sales Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts
Chamber Volume: 20L/24L
Class Grade: Class B
Certificate: CE / ISO
After-sales Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

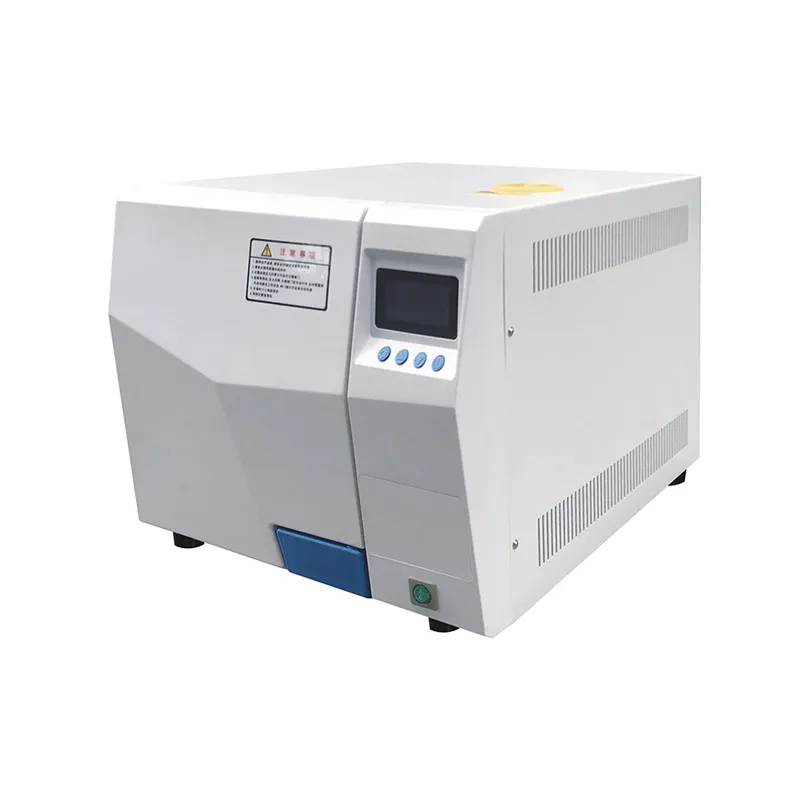

The Benchtop Laboratory Autoclave leverages saturated steam to achieve rapid and thorough sterilization of medical instruments, dressings, glassware, solutions and substrates. Ideal for hospitals, public health centres, clinics, research institutes and industrial settings, it also supports applications such as high‑quality water generation in plateau or mining environments.
Main Features
· Entire sterilisation cycle (water filling, heating, sterilising, drying, exhaust) is automatically controlled for simplicity and safety.
· Rapid sterilisation in approximately 4–6 minutes, supporting high turnover.
· User‑friendly digital display with touch‑key operation for intuitive control.
· Water shortage protection prevents operation when reservoir is low, enhancing safety.
· Internal steam‑water recirculation system eliminates external steam discharge and ensures a clean, dry surrounding environment.
· Auto‑cooling with safe door‑locking mechanism for added protection.
· Heavy‑duty stainless‑steel chamber and four stainless‑steel sterilising trays deliver durability and high‑volume capacity.
· Audible beep signals when the sterilisation cycle completes, improving workflow efficiency.
Specification
| Model | HSP- TMXD20D | HSP- TMXD24D |
| Chamber Volume | 20 L (φ 250 × 420 mm) | 24 L (φ 250 × 520 mm) |
| Working Pressure | 0.22 MPa | 0.22 MPa |
| Working Temperature | 134 °C | 134 °C |
| Temperature Range | 105–134 °C | 105–134 °C |
| Timer Range | 0–99 min | 0–99 min |
| Heating Accuracy | ≤ ±1 °C | ≤ ±1 °C |
| Power | 1.5 kW / AC 220 V 50 Hz | 1.5 kW / AC 220 V 50 Hz |
| Exterior Dimensions | 480 × 480 × 380 mm | 580 × 480 × 384 mm |
| Gross/Net Weight | 43/40 kg | 50/45 kg |
